- 111 - BIOS Setup

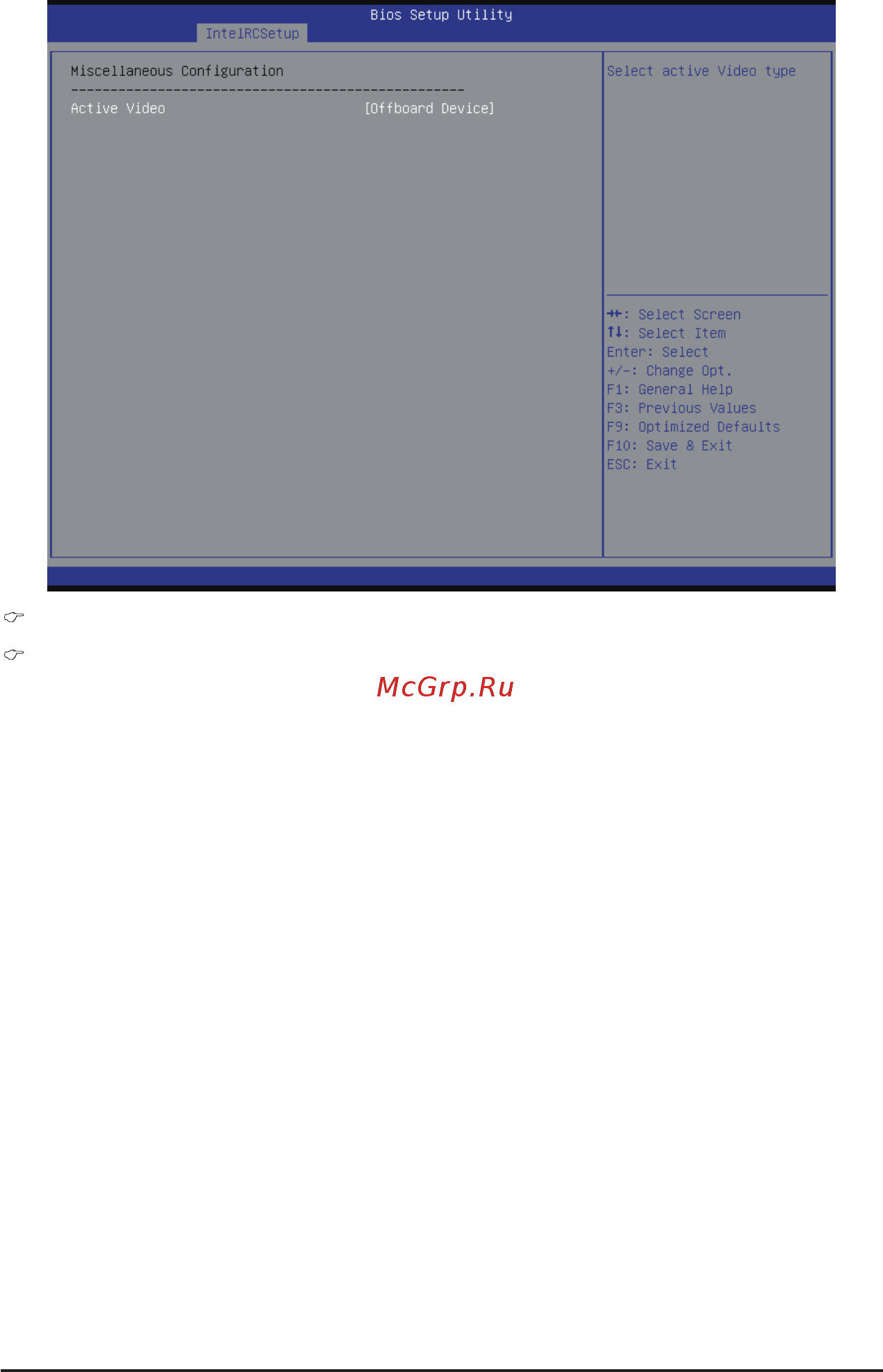

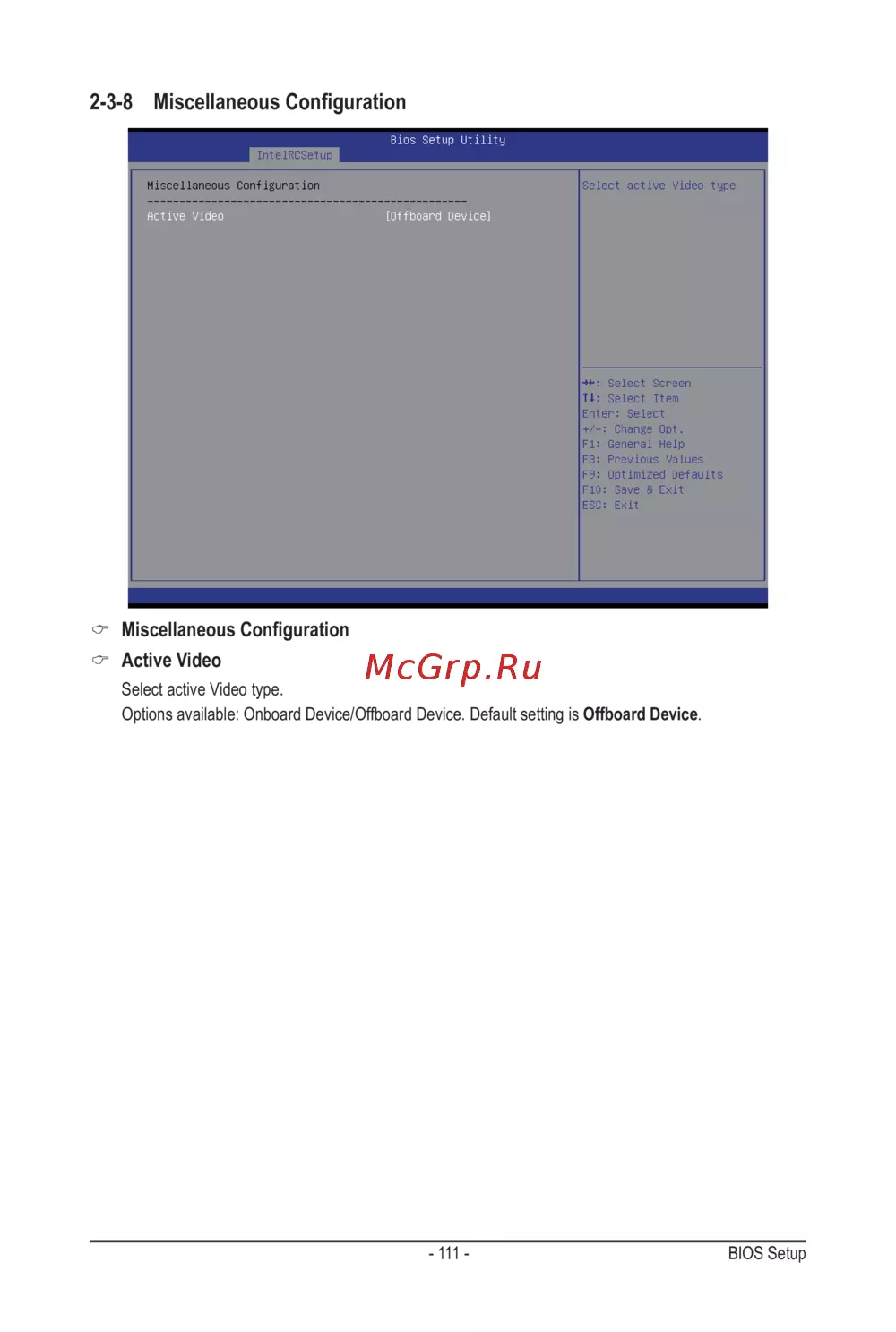

2-3-8 Miscellaneous Conguration

Miscellaneous Conguration

Active Video

Select active Video type.

Options available: Onboard Device/Offboard Device. Default setting is Offboard Device.
