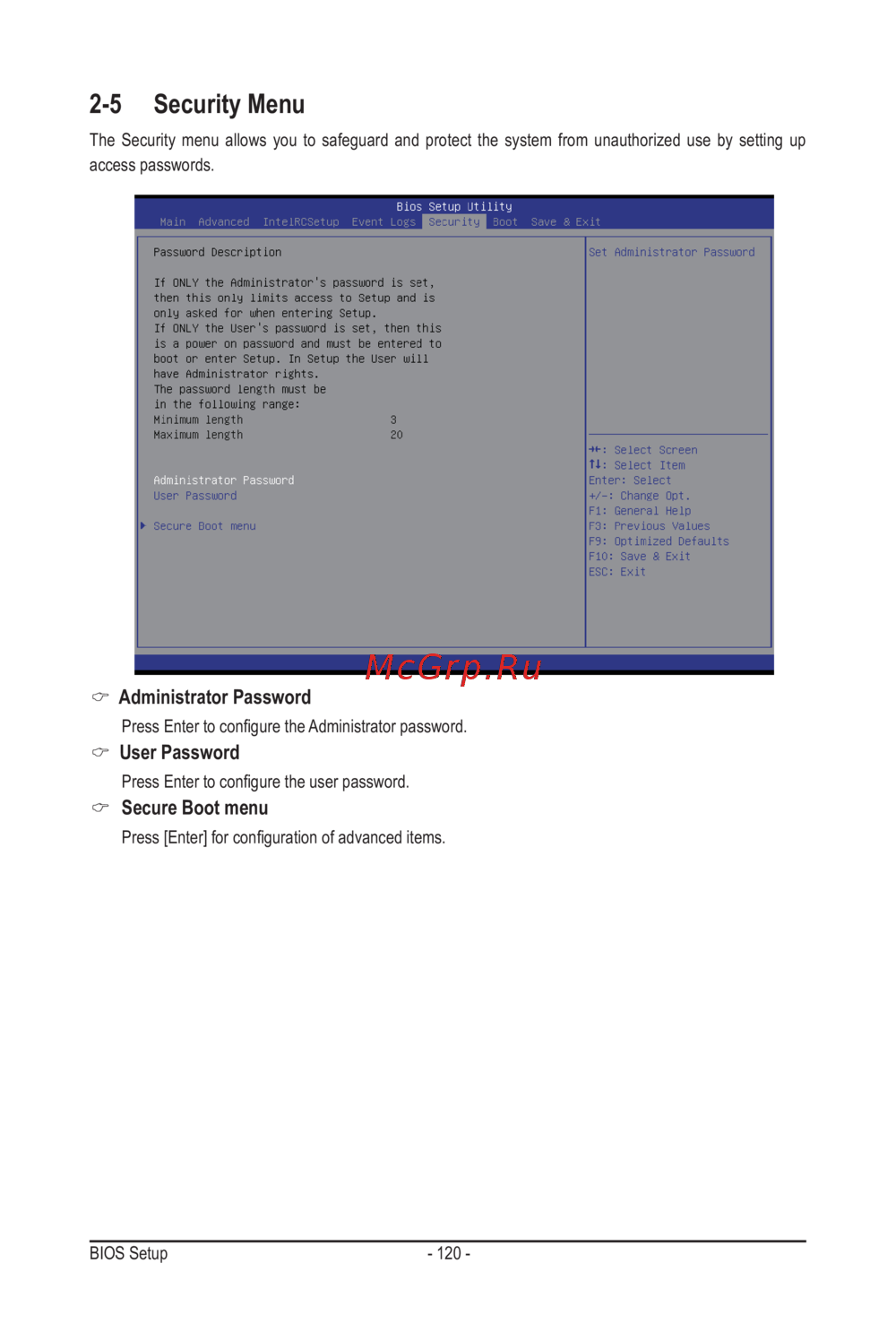

Gigabyte MW70-3S0 (rev. 1.0) [120/135] User password

BIOS Setup - 120 -

Administrator Password

 PressEntertoconguretheAdministratorpassword.

User Password

 PressEntertoconguretheuserpassword.

Secure Boot menu

 Press[Enter]forcongurationofadvanceditems.

2-5 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up

access passwords.
