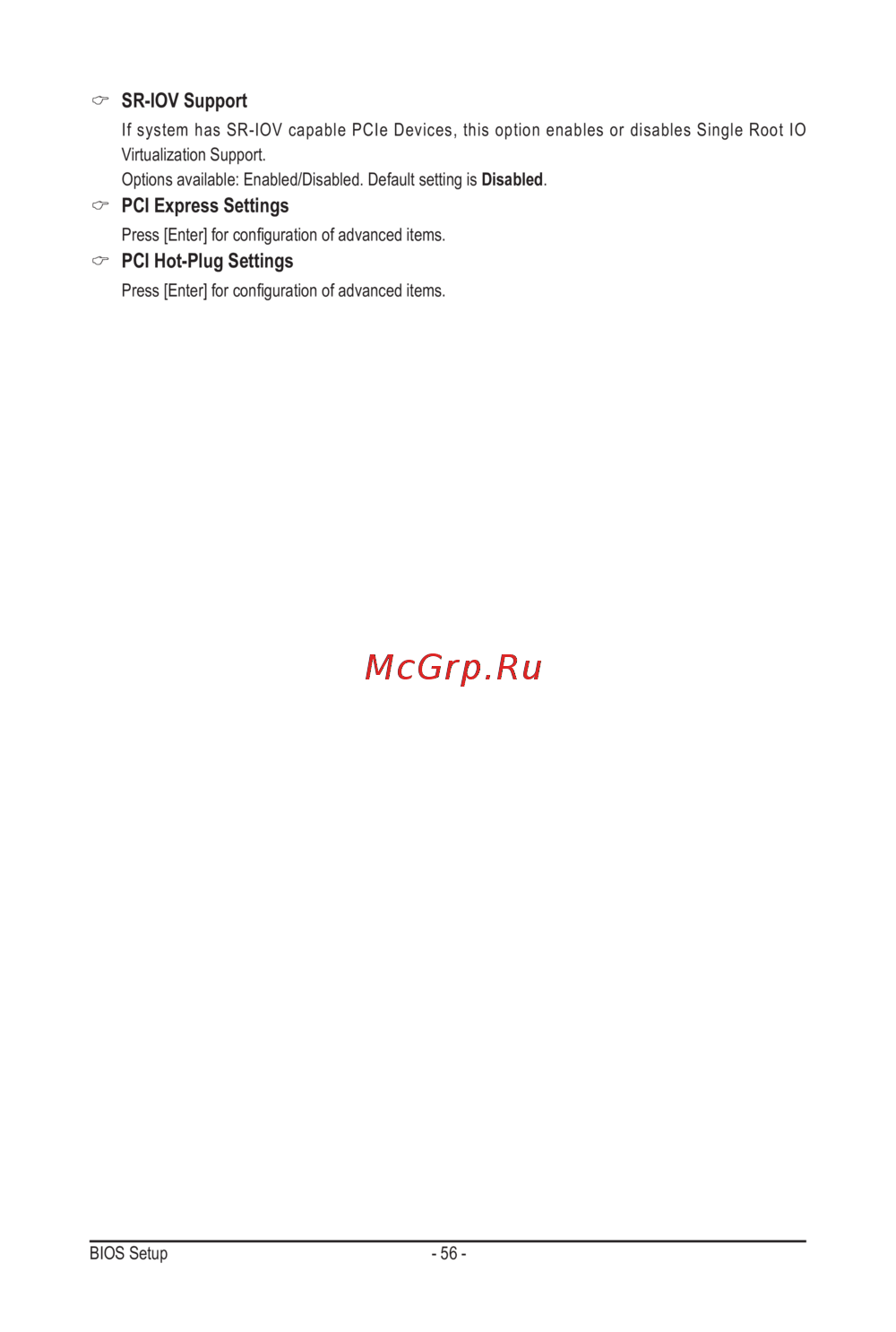

Gigabyte MW70-3S0 (rev. 1.0) [56/135] Sr iov support

BIOS Setup - 56 -

SR-IOV Support

If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO

Virtualization Support.

Options available: Enabled/Disabled. Default setting is Disabled.

PCI Express Settings

 Press[Enter]forcongurationofadvanceditems.

PCI Hot-Plug Settings

 Press[Enter]forcongurationofadvanceditems.
