- 8 -

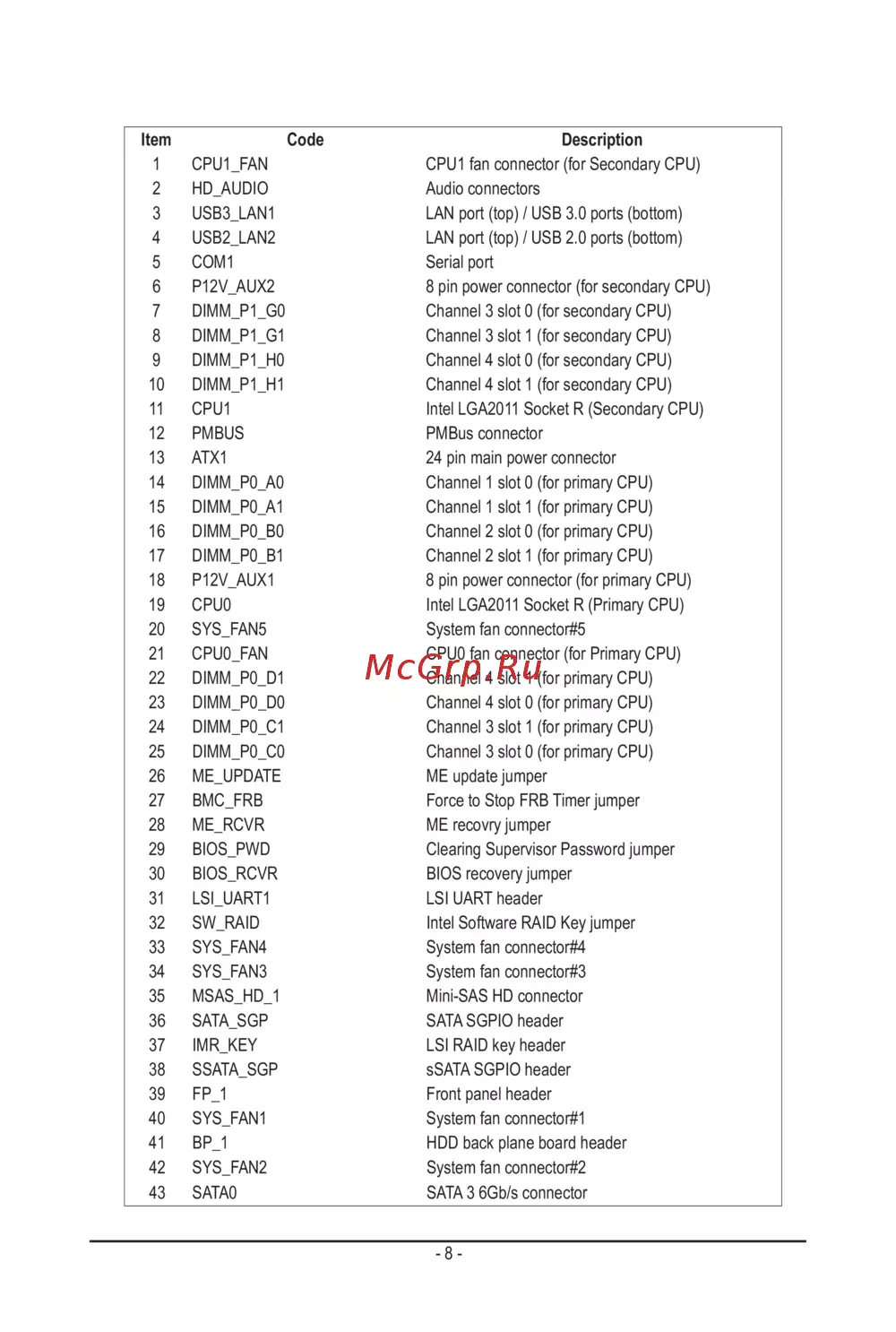

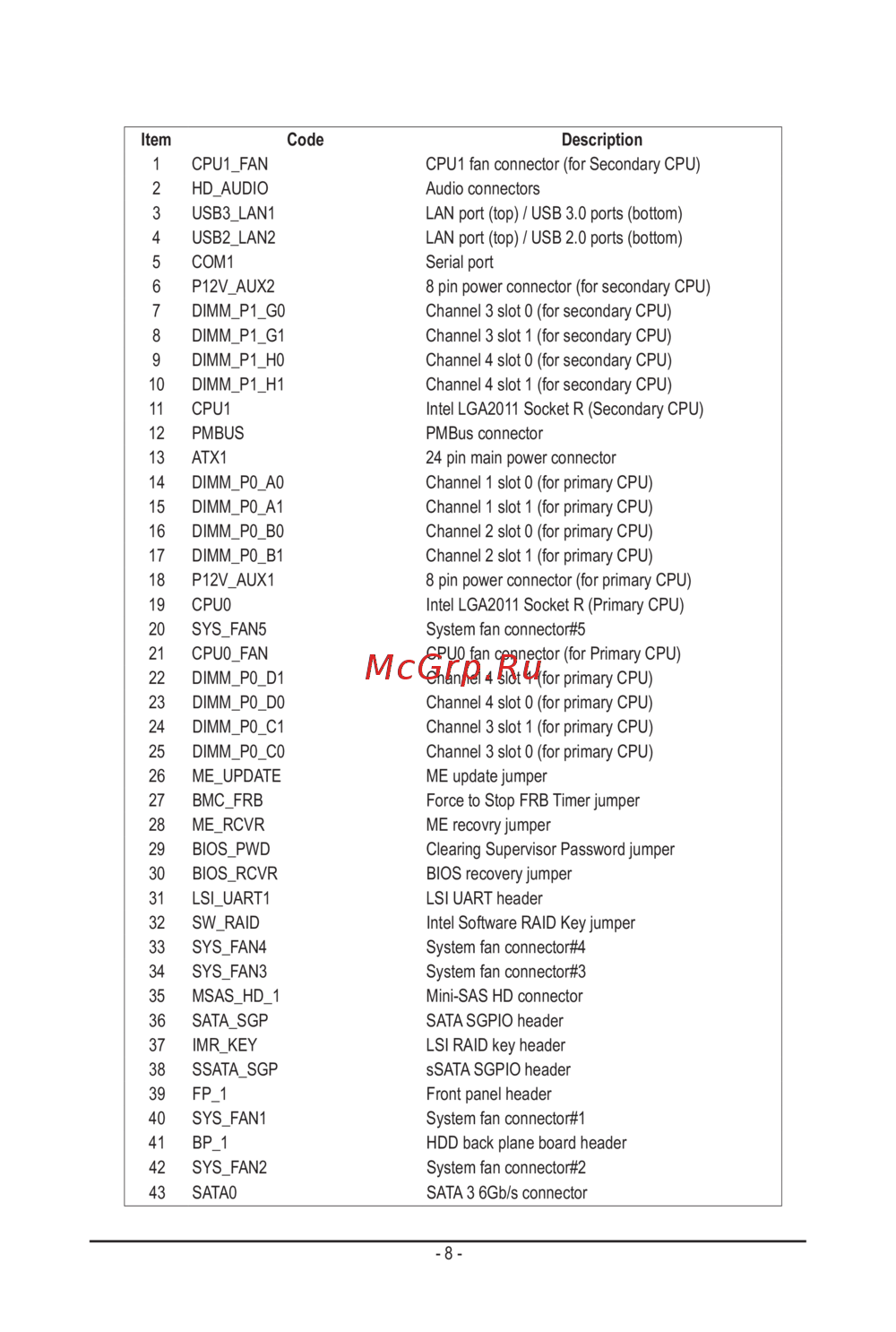

Item Code Description
1 CPU1_FAN CPU1 fan connector (for Secondary CPU)
2 HD_AUDIO Audio connectors
3 USB3_LAN1 LAN port (top) / USB 3.0 ports (bottom)
4 USB2_LAN2 LAN port (top) / USB 2.0 ports (bottom)
5 COM1 Serial port
6 P12V_AUX2 8 pin power connector (for secondary CPU)
7 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)
8 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)
9 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
10 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
11 CPU1 Intel LGA2011 Socket R (Secondary CPU)
12 PMBUS PMBus connector
13 ATX1 24 pin main power connector
14 DIMM_P0_A0 Channel 1 slot 0 (for primary CPU)
15 DIMM_P0_A1 Channel 1 slot 1 (for primary CPU)
16 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)
17 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)
18 P12V_AUX1 8 pin power connector (for primary CPU)
19 CPU0 Intel LGA2011 Socket R (Primary CPU)
20 SYS_FAN5 System fan connector#5
21 CPU0_FAN CPU0 fan connector (for Primary CPU)
22 DIMM_P0_D1 Channel 4 slot 1 (for primary CPU)
23 DIMM_P0_D0 Channel 4 slot 0 (for primary CPU)
24 DIMM_P0_C1 Channel 3 slot 1 (for primary CPU)
25 DIMM_P0_C0 Channel 3 slot 0 (for primary CPU)
26 ME_UPDATE ME update jumper
27 BMC_FRB Force to Stop FRB Timer jumper
28 ME_RCVR ME recovry jumper
29 BIOS_PWD Clearing Supervisor Password jumper
30 BIOS_RCVR BIOS recovery jumper
31 LSI_UART1 LSI UART header
32 SW_RAID Intel Software RAID Key jumper
33 SYS_FAN4 System fan connector#4
34 SYS_FAN3 System fan connector#3
35 MSAS_HD_1 Mini-SAS HD connector
36 SATA_SGP SATA SGPIO header
37 IMR_KEY LSI RAID key header
38 SSATA_SGP sSATA SGPIO header
39 FP_1 Front panel header
40 SYS_FAN1 System fan connector#1
41 BP_1 HDD back plane board header
42 SYS_FAN2 System fan connector#2
43 SATA0 SATA 3 6Gb/s connector
