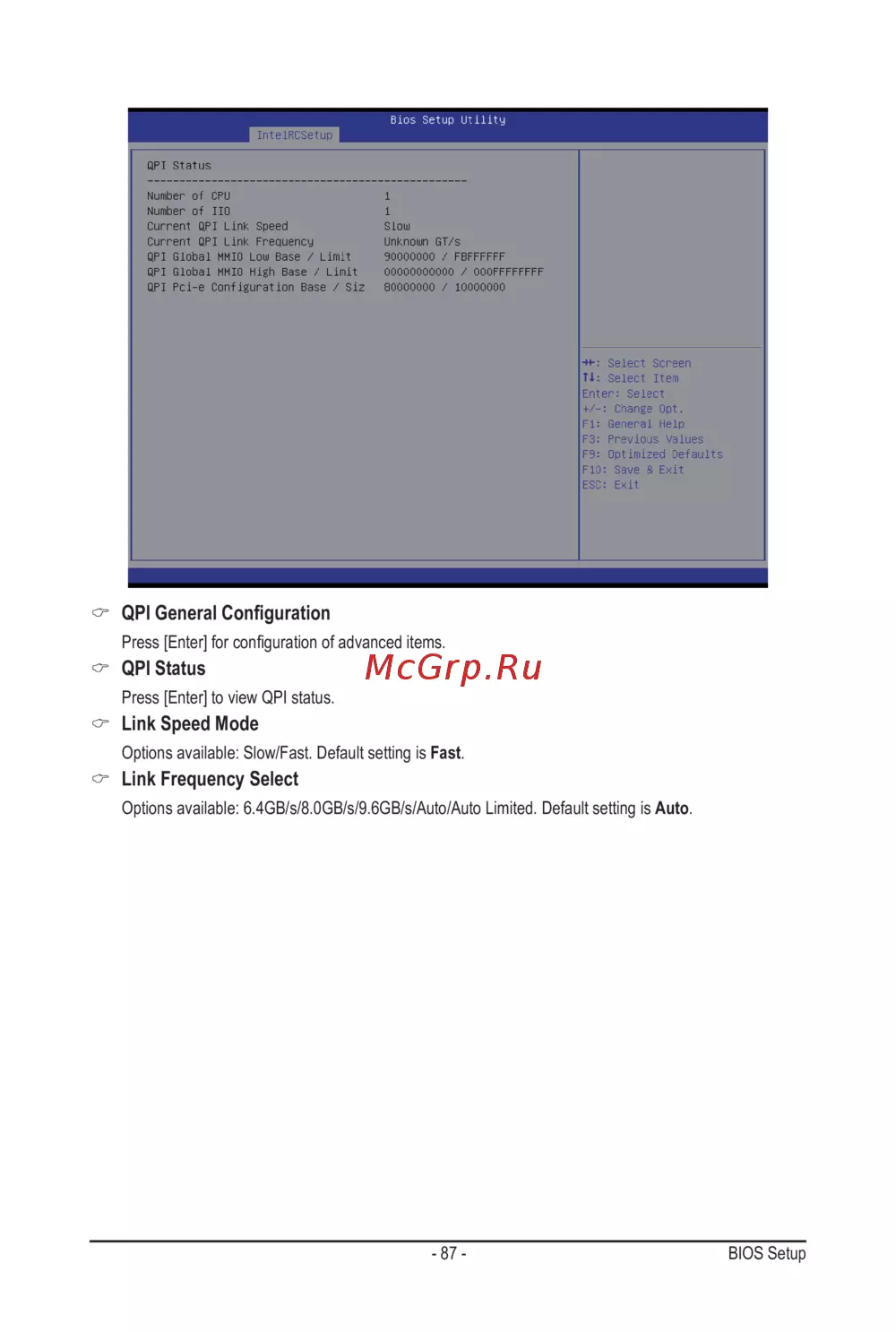

Gigabyte MW70-3S0 (rev. 1.0) [87/135] Qpi status

- 87 - BIOS Setup

QPI General Conguration

 Press[Enter]forcongurationofadvanceditems.

QPI Status

Press [Enter] to view QPI status.

Link Speed Mode

Options available: Slow/Fast. Default setting is Fast.

Link Frequency Select

Options available: 6.4GB/s/8.0GB/s/9.6GB/s/Auto/Auto Limited. Default setting is Auto.
