Hardware Installation - 13 -

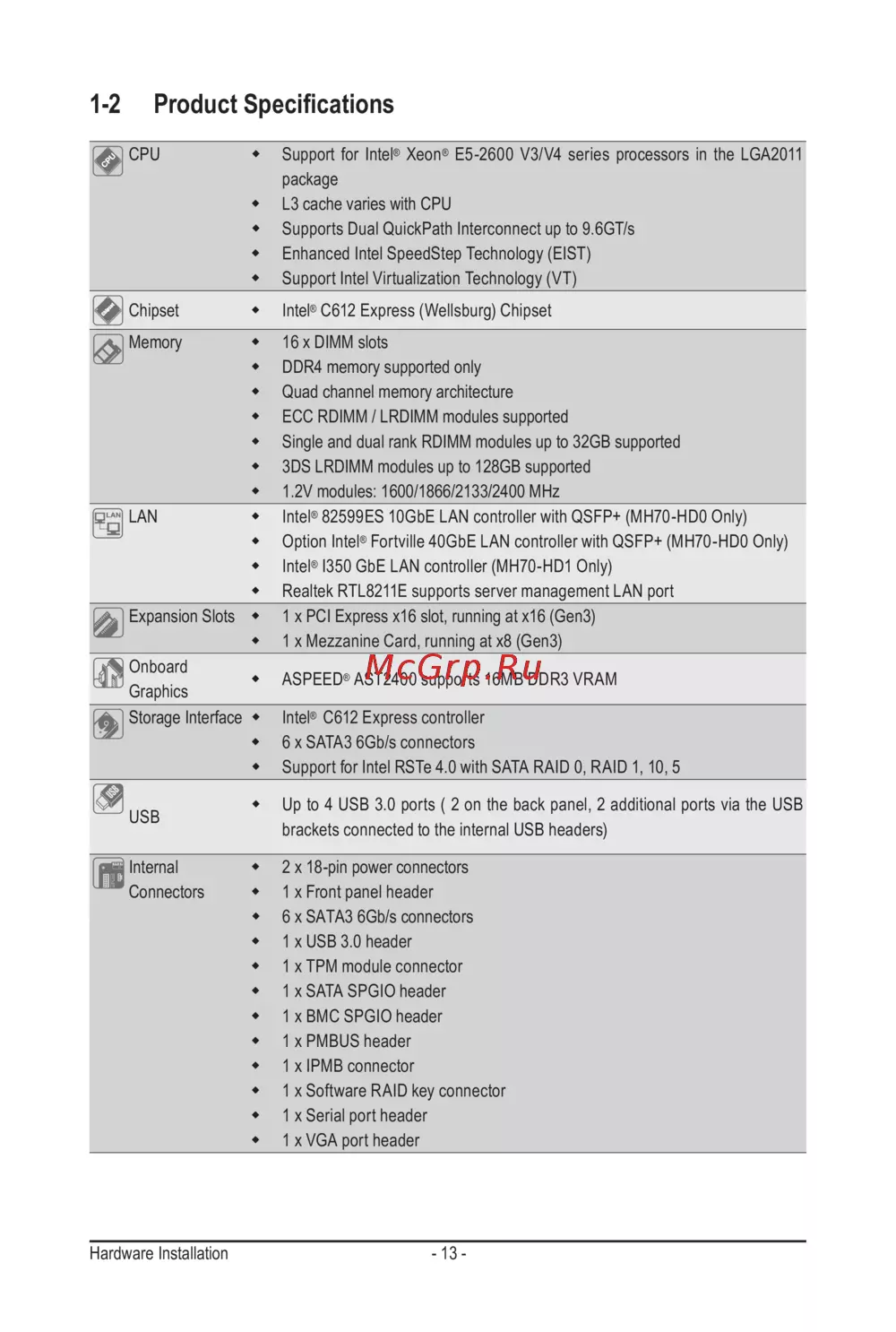

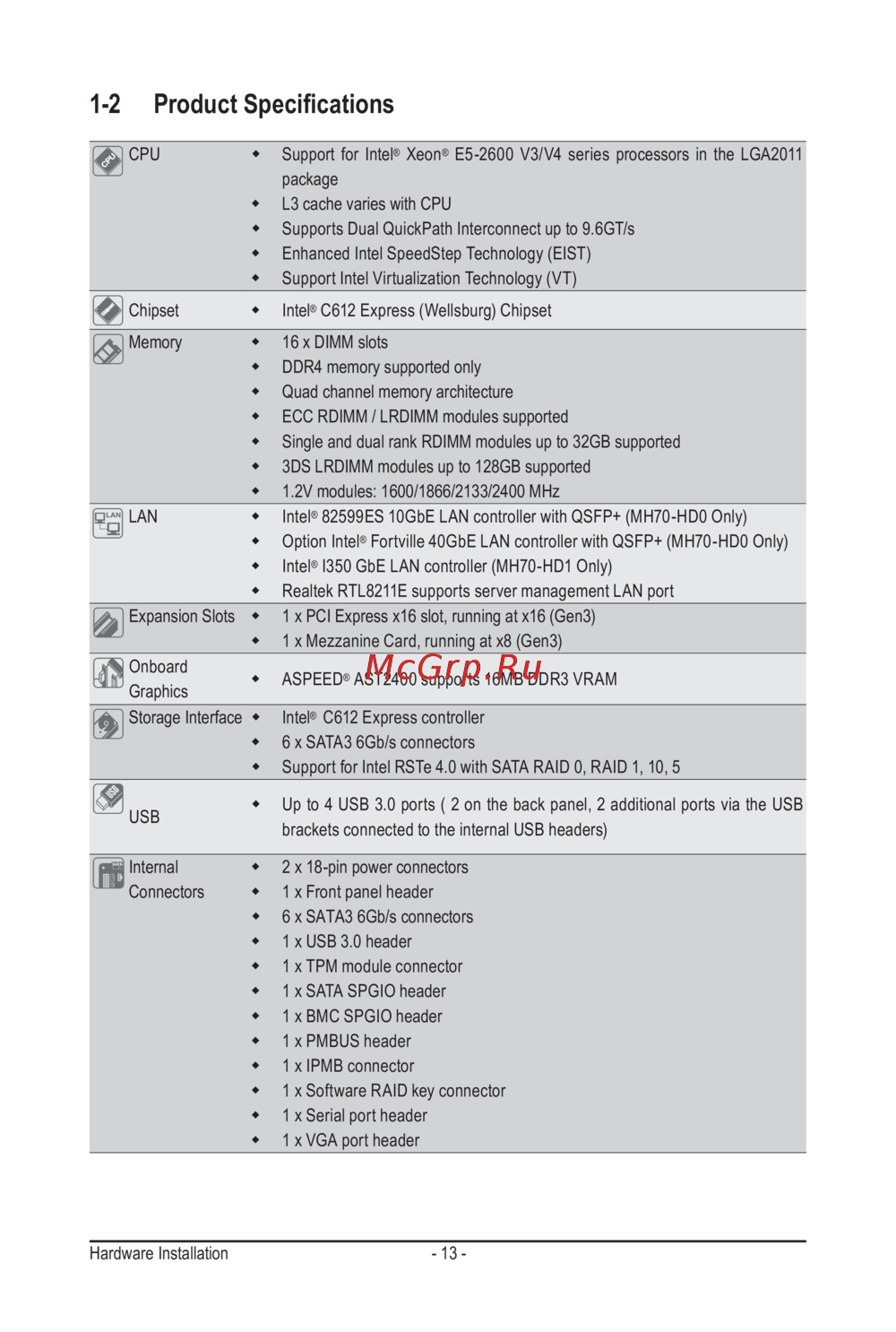

1-2 ProductSpecications
CPU Support for Intel
®
Xeon
®
E5-2600 V3/V4 series processors in the LGA2011
package
L3 cache varies with CPU
Supports Dual QuickPath Interconnect up to 9.6GT/s
Enhanced Intel SpeedStep Technology (EIST)
Support Intel Virtualization Technology (VT)
Chipset Intel
®
C612 Express (Wellsburg) Chipset
Memory 16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz
LAN Intel
®
82599ES 10GbE LAN controller with QSFP+ (MH70-HD0 Only)
Option Intel
®
Fortville 40GbE LAN controller with QSFP+ (MH70-HD0 Only)
Intel
®
I350 GbE LAN controller (MH70-HD1 Only)
Realtek RTL8211E supports server management LAN port
Expansion Slots 1 x PCI Express x16 slot, running at x16 (Gen3)
1 x Mezzanine Card, running at x8 (Gen3)
Onboard
Graphics
ASPEED
®
AST2400 supports 16MB DDR3 VRAM
Storage Interface Intel
®
C612 Express controller
6 x SATA3 6Gb/s connectors
Support for Intel RSTe 4.0 with SATA RAID 0, RAID 1, 10, 5
USB
Up to 4 USB 3.0 ports ( 2 on the back panel, 2 additional ports via the USB
brackets connected to the internal USB headers)
Internal
Connectors
2 x 18-pin power connectors
1 x Front panel header
6 x SATA3 6Gb/s connectors
1 x USB 3.0 header
1 x TPM module connector
1 x SATA SPGIO header
1 x BMC SPGIO header
1 x PMBUS header
1 x IPMB connector
1 x Software RAID key connector
1 x Serial port header
1 x VGA port header
