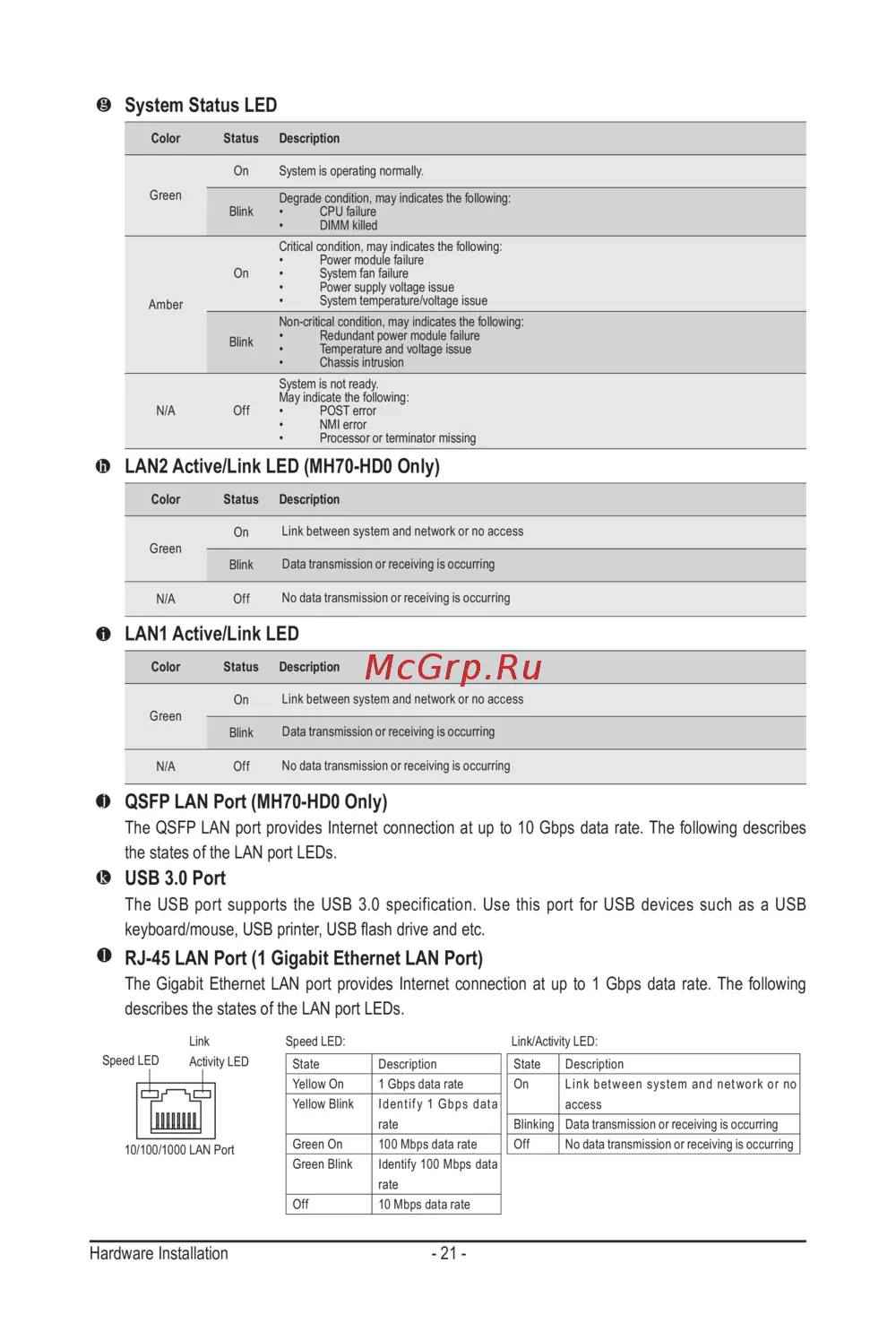

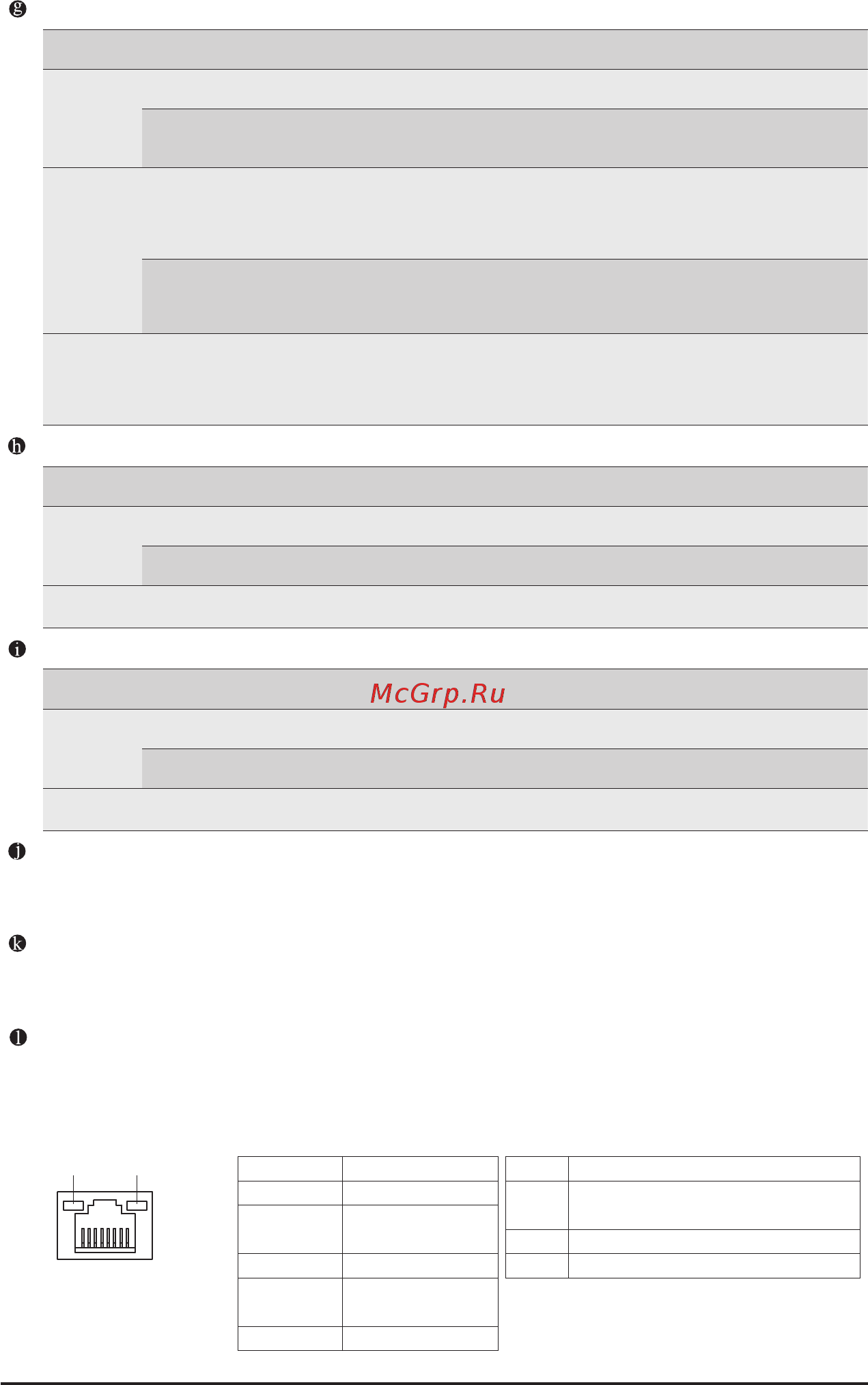

Hardware Installation - 21 -
Link
Activity LED
Speed LED
10/100/1000 LAN Port
Link/Activity LED:Speed LED:
State Description
Yellow On 1 Gbps data rate
Yellow Blink Identify 1 Gbps data
rate
Green On 100 Mbps data rate
Green Blink Identify 100 Mbps data
rate
Off 10 Mbps data rate
State Description
On Link bet ween system and network or no
access
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
System Status LED
Color Status Description
Green
On System is operating normally.
Blink
Degrade condition, may indicates the following:
• CPU failure
• DIMM killed
Amber
On
Critical condition, may indicates the following:
• Power module failure
• System fan failure
• Power supply voltage issue
• System temperature/voltage issue
Blink
Non-critical condition, may indicates the following:
• Redundant power module failure
• Temperature and voltage issue
• Chassis intrusion
N/A Off
System is not ready.
May indicate the following:
• POST error
• NMI error
• Processor or terminator missing
LAN2 Active/Link LED (MH70-HD0 Only)
Color Status Description
Green
On
Link between system and network or no access
Blink
Data transmission or receiving is occurring
N/A Off
No data transmission or receiving is occurring
LAN1 Active/Link LED
Color Status Description
Green
On
Link between system and network or no access
Blink
Data transmission or receiving is occurring
N/A Off
No data transmission or receiving is occurring
QSFP LAN Port (MH70-HD0 Only)
The QSFP LAN port provides Internet connection at up to 10 Gbps data rate. The following describes
the states of the LAN port LEDs.
USB 3.0 Port
The USB port supports the USB 3.0 specification. Use this port for USB devices such as a USB
keyboard/mouse,USBprinter,USBashdriveandetc.
RJ-45 LAN Port (1 Gigabit Ethernet LAN Port)
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
