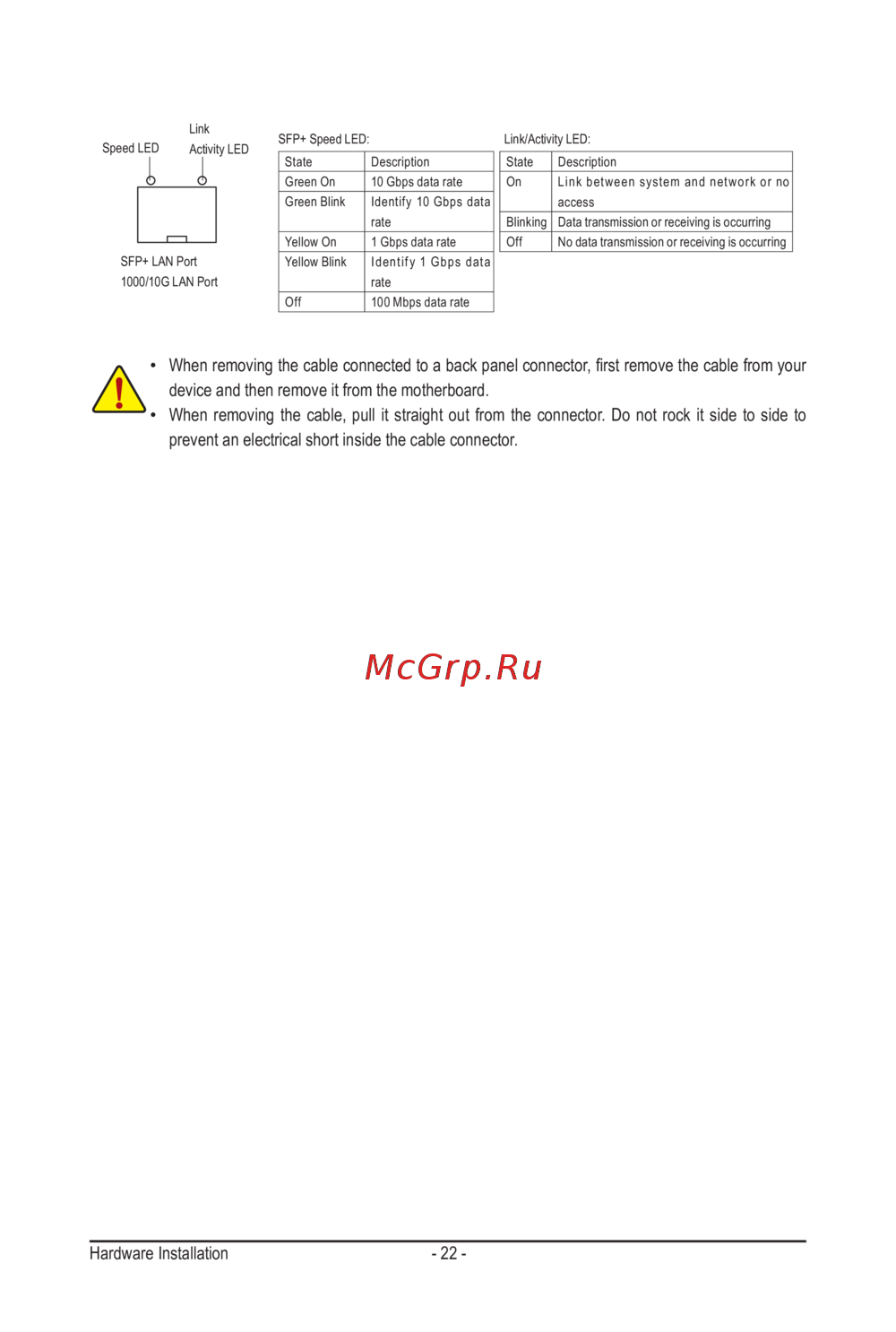

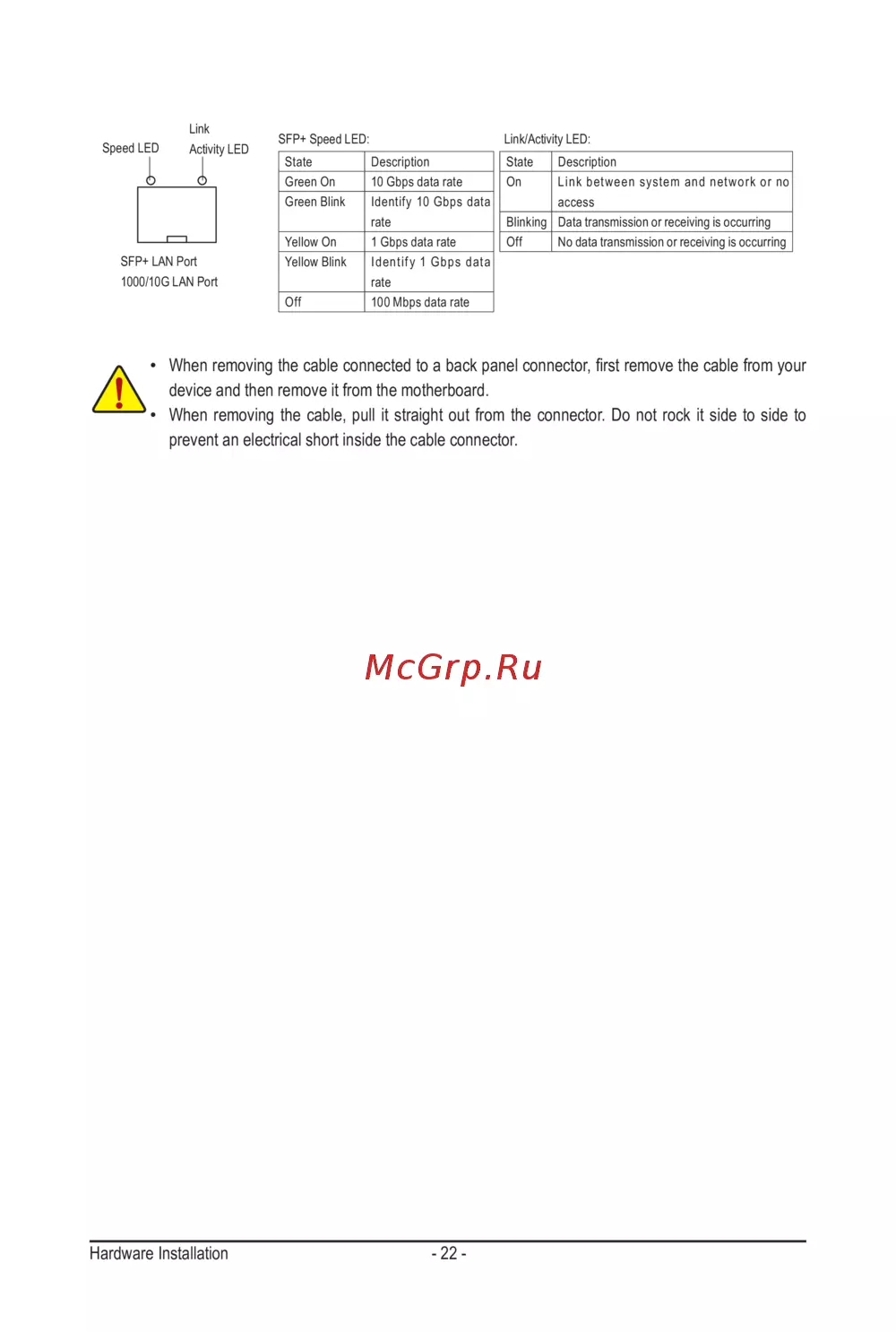

Hardware Installation - 22 -
Link
Activity LED
Speed LED
SFP+ LAN Port
1000/10G LAN Port
Link/Activity LED:SFP+ Speed LED:
State Description
Green On 10 Gbps data rate
Green Blink Identify 10 Gbps data
rate
Yellow On 1 Gbps data rate
Yellow Blink Identify 1 Gbps data
rate
Off 100 Mbps data rate
State Description
On Link bet ween system and net work or no
access
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
