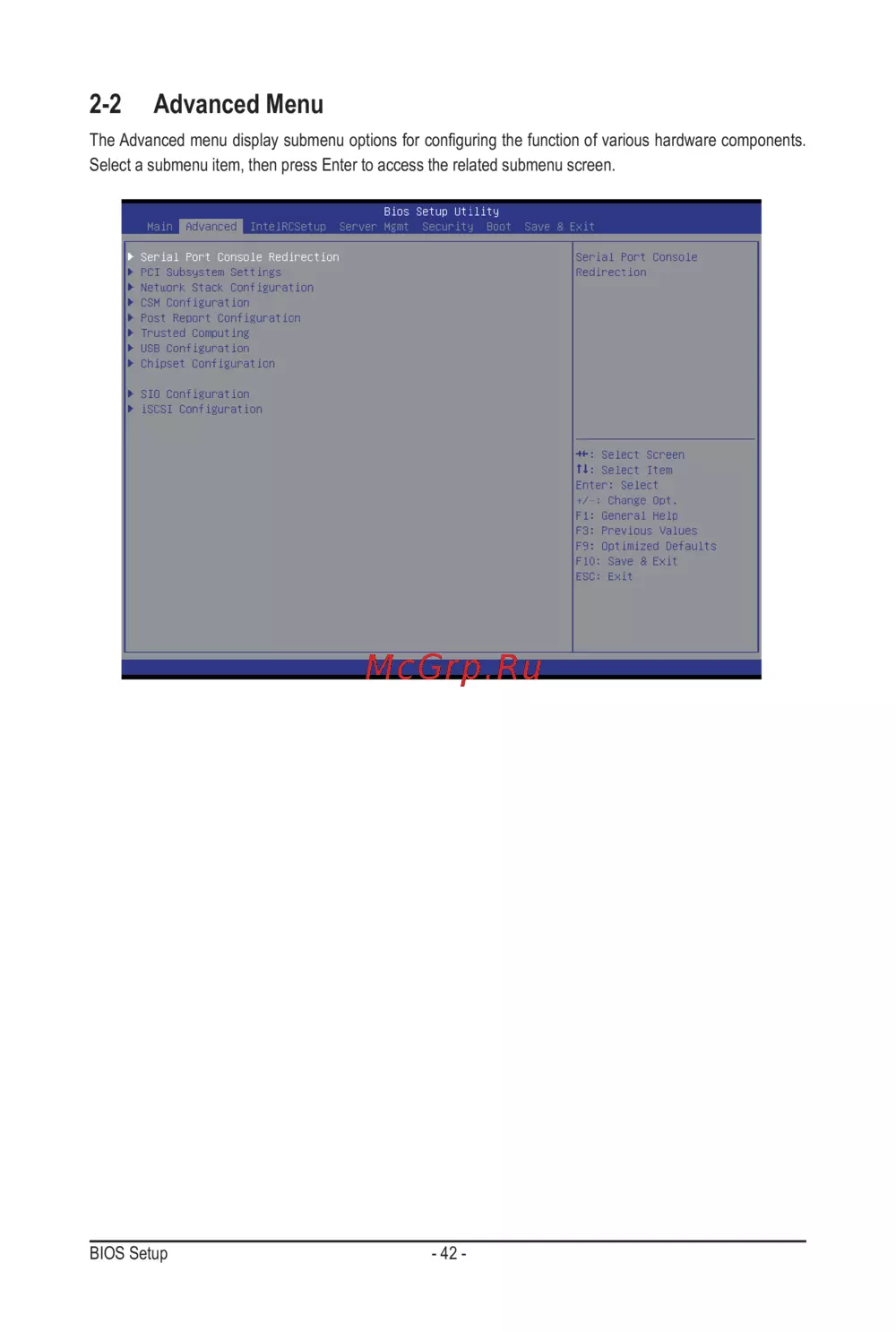

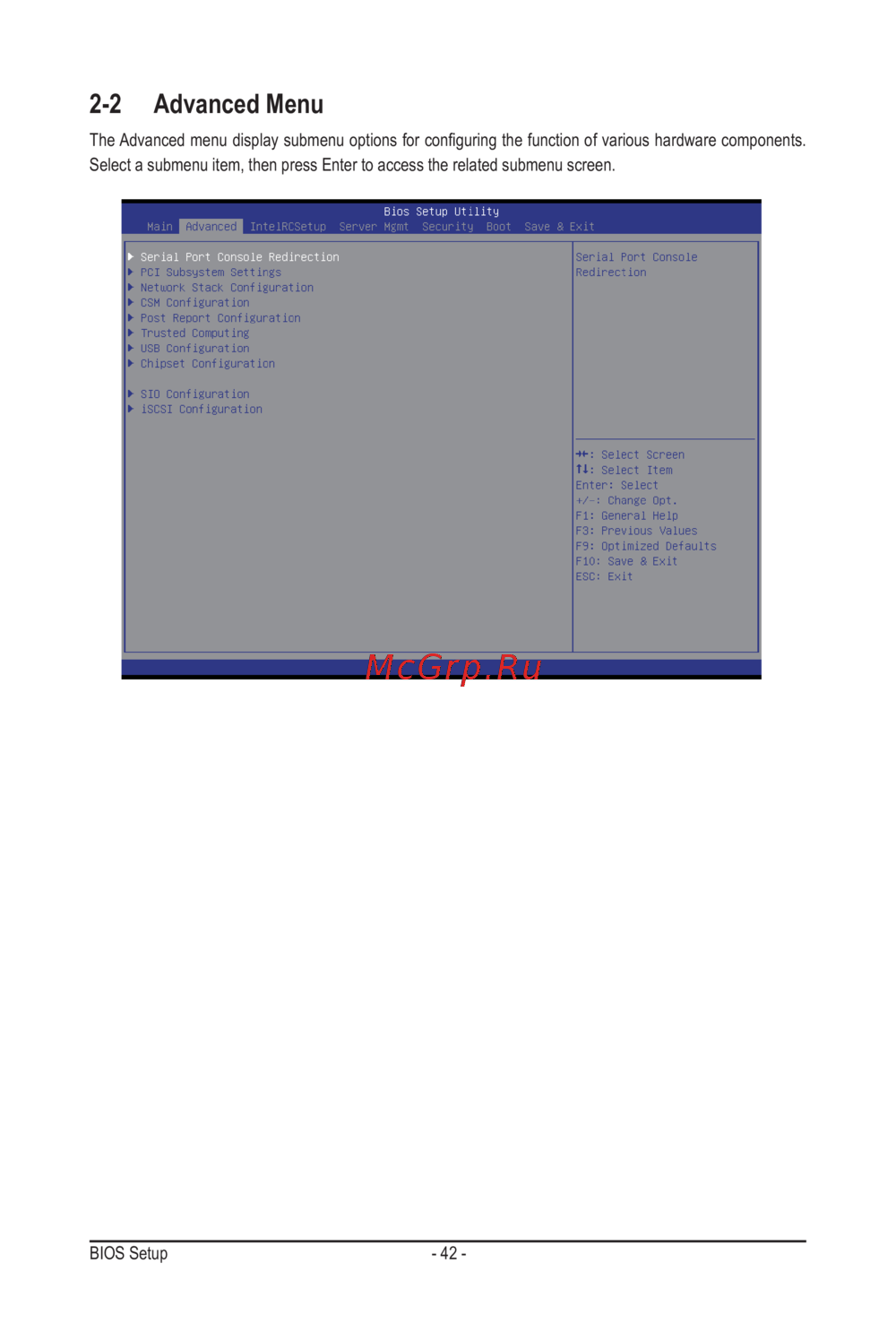

Gigabyte MH70-HD0 (rev. 1.0) [42/114] 2 advanced menu

BIOS Setup - 42 -

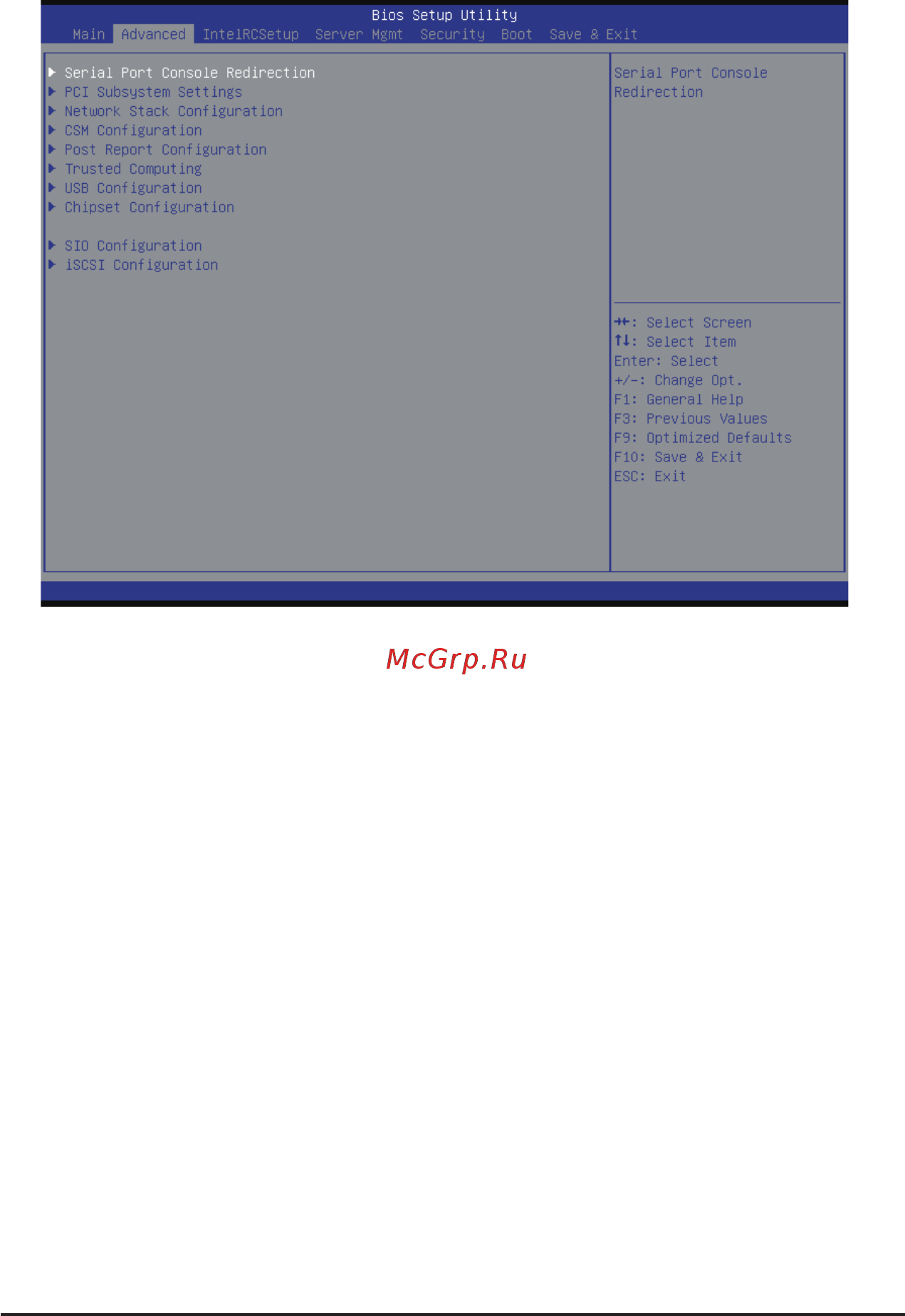

2-2 Advanced Menu

TheAdvancedmenudisplaysubmenuoptionsforconguringthefunctionofvarioushardwarecomponents.

Select a submenu item, then press Enter to access the related submenu screen.
