- 6 -

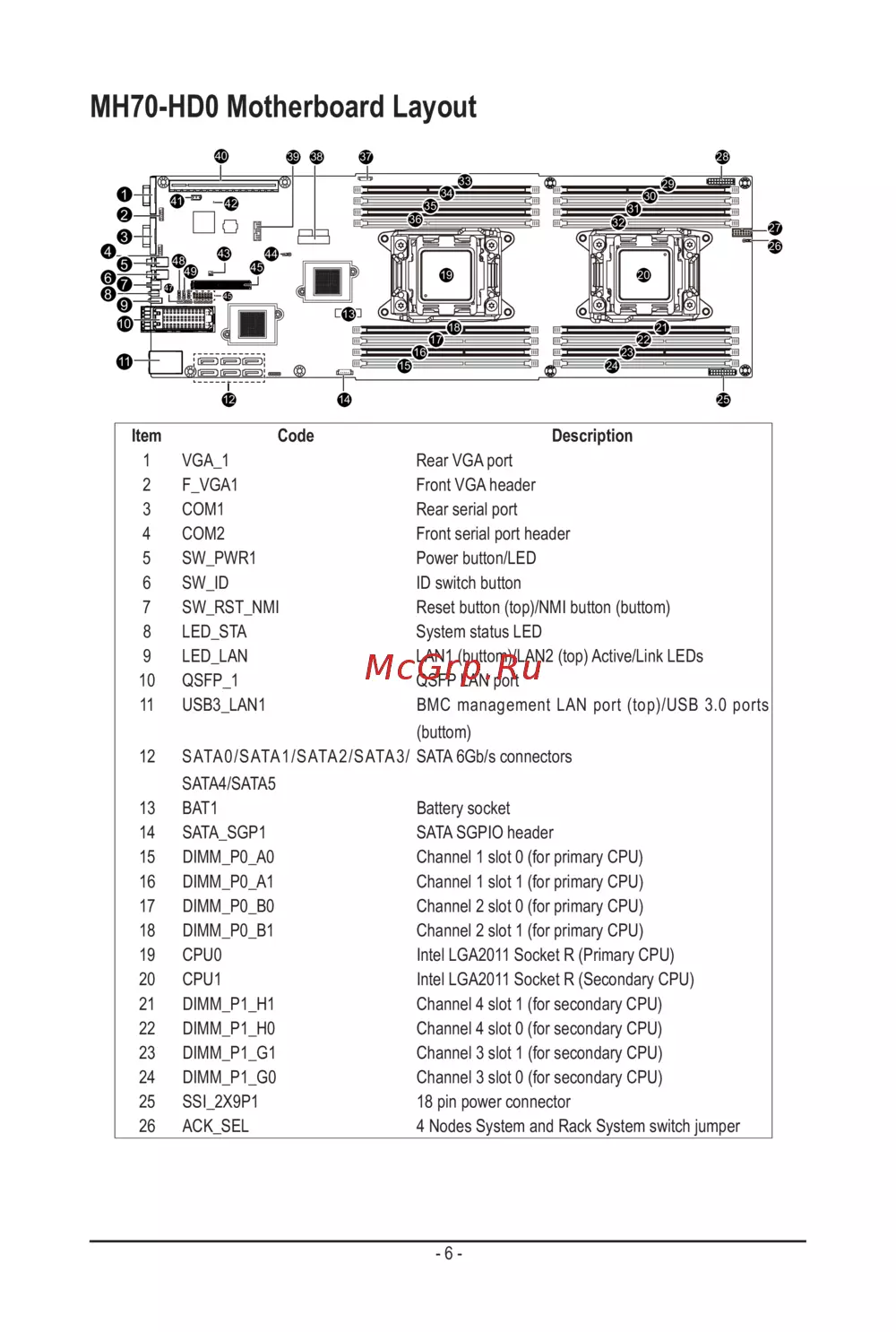

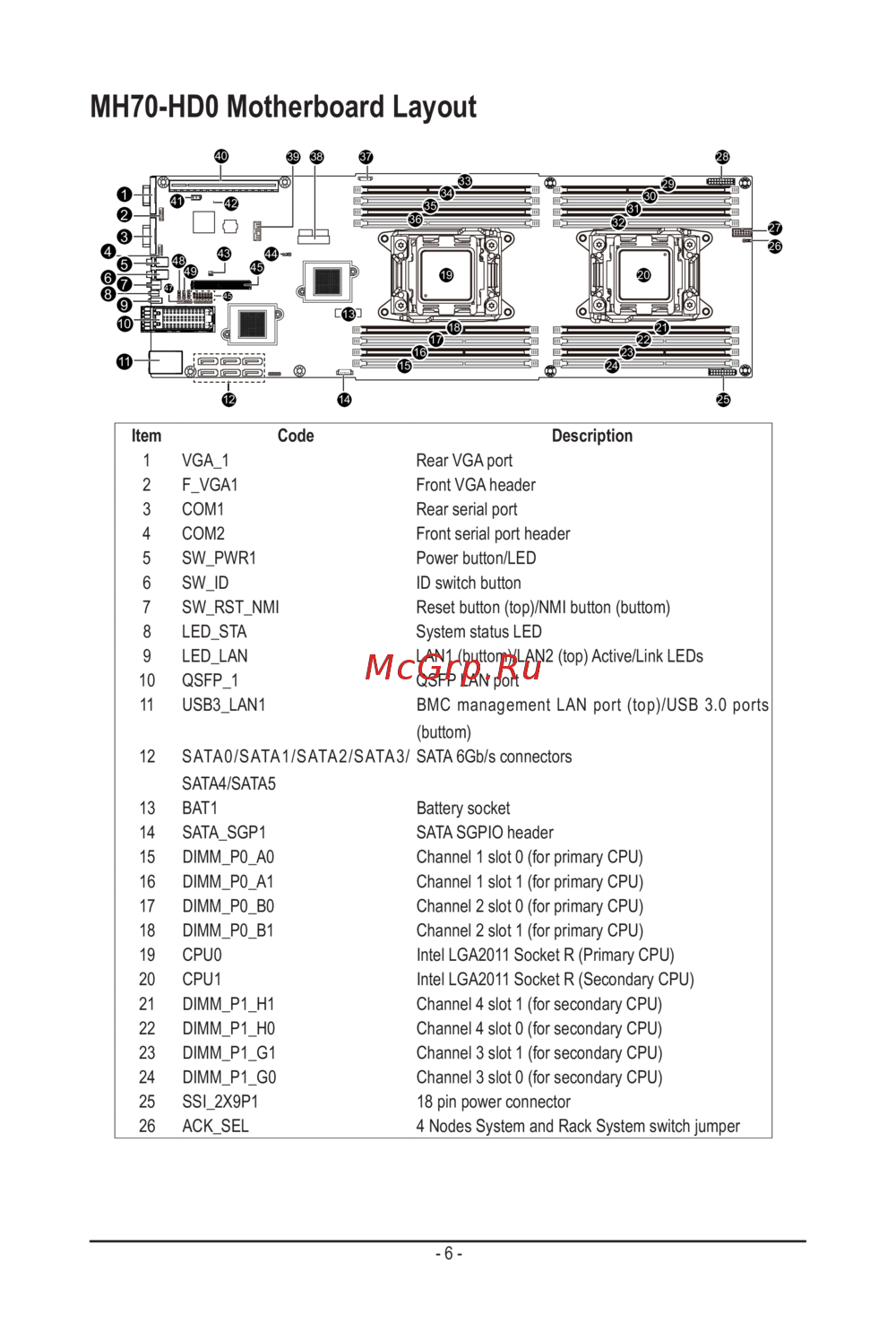

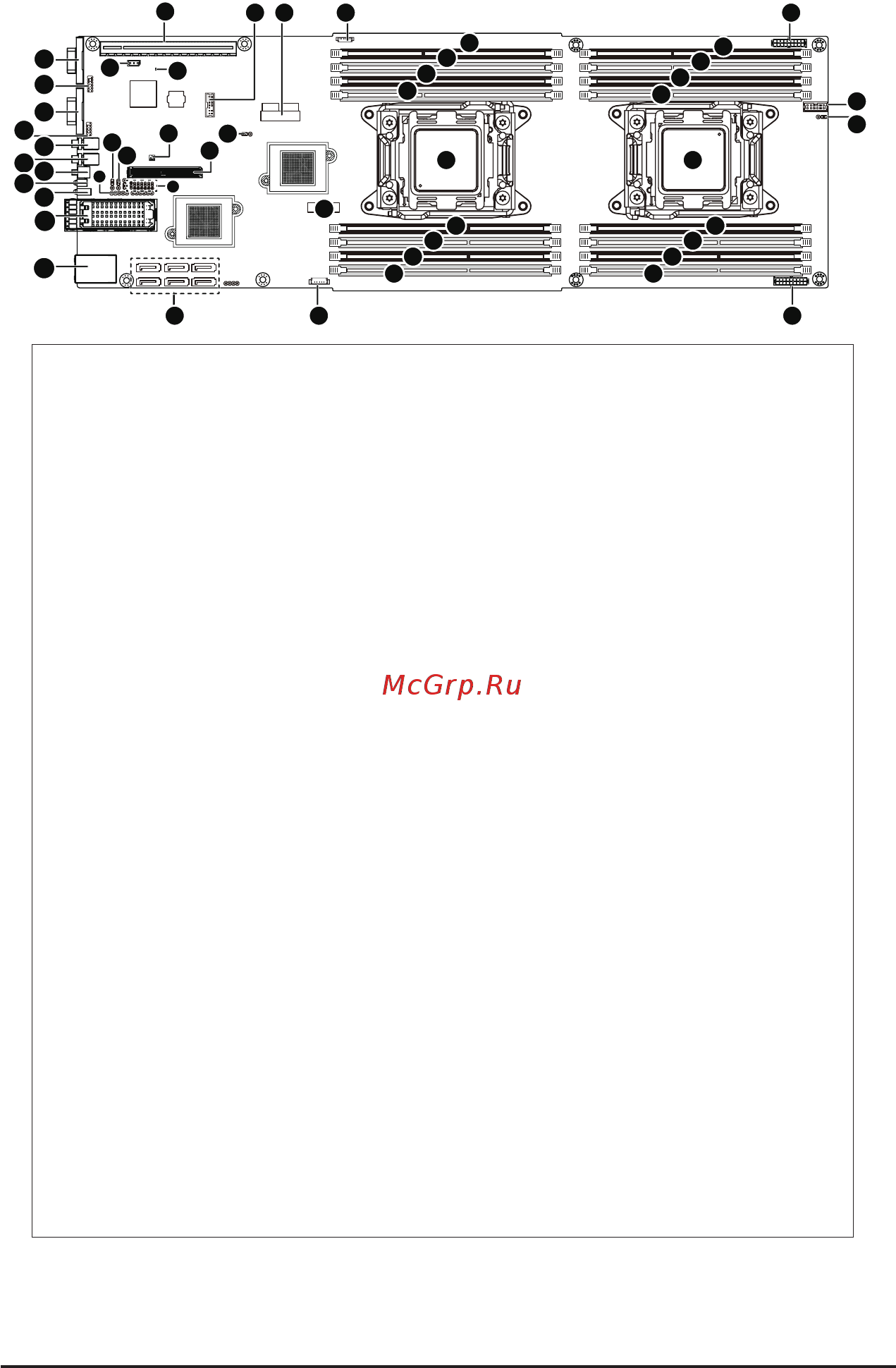

MH70-HD0 Motherboard Layout
Item Code Description
1 VGA_1 Rear VGA port
2 F_VGA1 Front VGA header
3 COM1 Rear serial port
4 COM2 Front serial port header
5 SW_PWR1 Power button/LED
6 SW_ID ID switch button
7 SW_RST_NMI Reset button (top)/NMI button (buttom)
8 LED_STA System status LED
9 LED_LAN LAN1 (buttom)/LAN2 (top) Active/Link LEDs
10 QSFP_1 QSFP LAN port
11 USB3_LAN1 BMC management LAN port (top)/USB 3.0 ports
(buttom)
12 SATA0/SATA1/SATA2/SATA3/
SATA4/SATA5
SATA 6Gb/s connectors
13 BAT1 Battery socket
14 SATA_SGP1 SATA SGPIO header
15 DIMM_P0_A0 Channel 1 slot 0 (for primary CPU)
16 DIMM_P0_A1 Channel 1 slot 1 (for primary CPU)
17 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)
18 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)
19 CPU0 Intel LGA2011 Socket R (Primary CPU)
20 CPU1 Intel LGA2011 Socket R (Secondary CPU)
21 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
22 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
23 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)
24 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)
25 SSI_2X9P1 18 pin power connector
26 ACK_SEL 4 Nodes System and Rack System switch jumper
1
2
3
4
6
8
7
9
5
11
10
12
14 25
13
15
16
17
18
24
23
22
21
32
31
30
29
36
35
34
33
19 20
26
27
28373839
44
45
45
41
43
42
49
48
47
40
