Gigabyte MH70-HD0 (rev. 1.0) [72/114] Numa non uniform memory access

BIOS Setup - 72 -

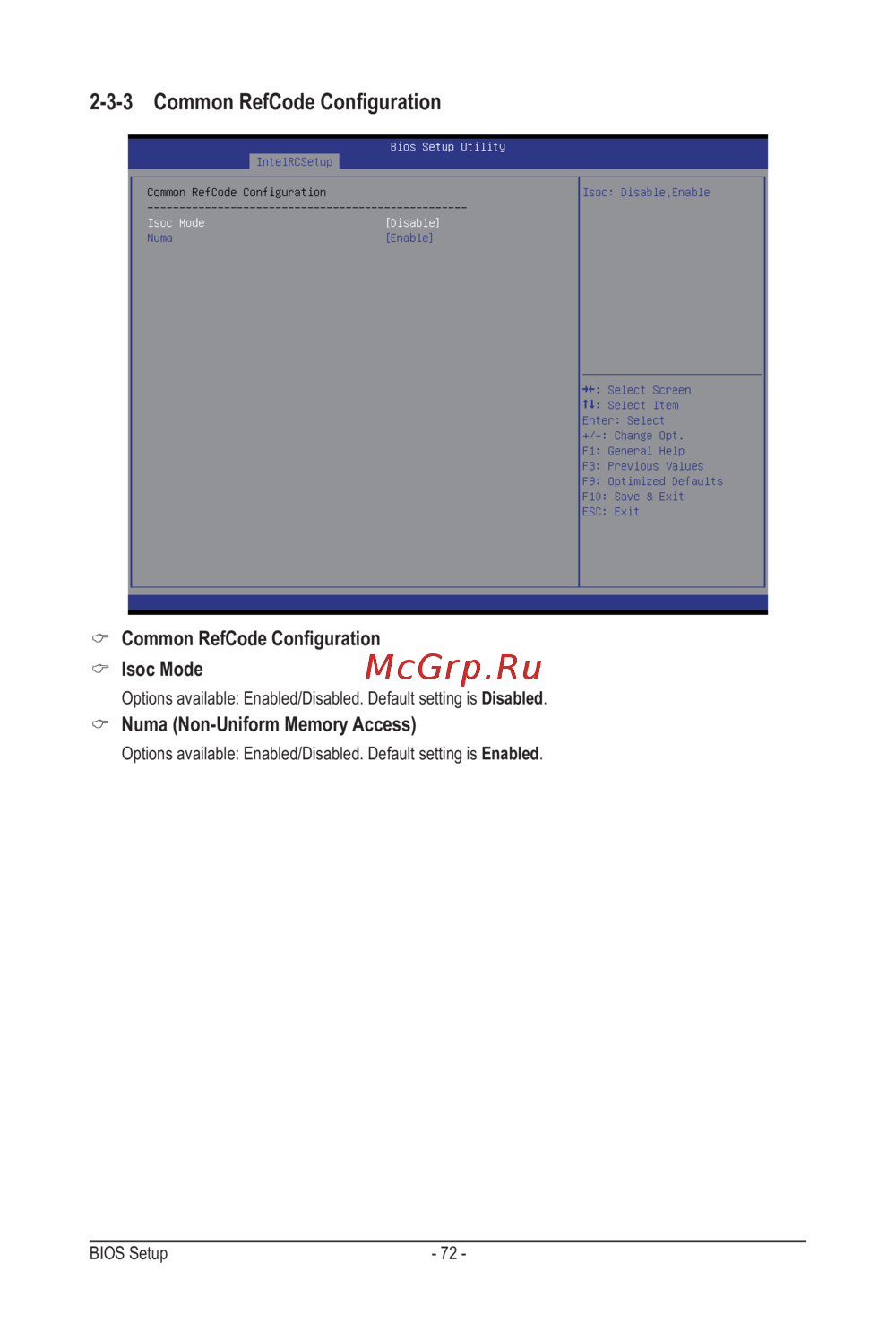

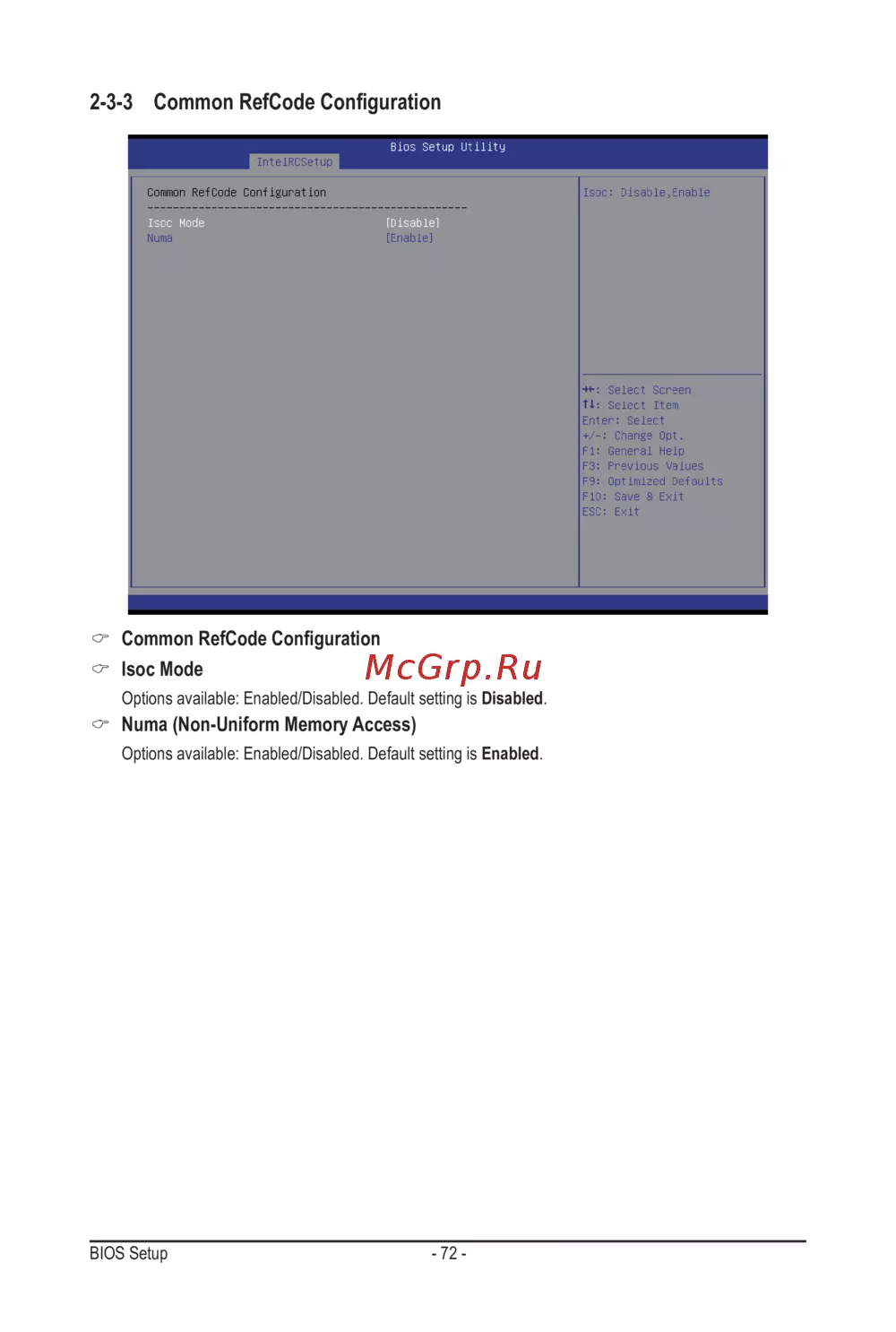

2-3-3 CommonRefCodeConguration

 CommonRefCodeConguration

Isoc Mode

Options available: Enabled/Disabled. Default setting is Disabled.

Numa (Non-Uniform Memory Access)

Options available: Enabled/Disabled. Default setting is Enabled.
