Gigabyte MH70-HD0 (rev. 1.0) [81/114] Ioatconfiguration

- 81 - BIOS Setup

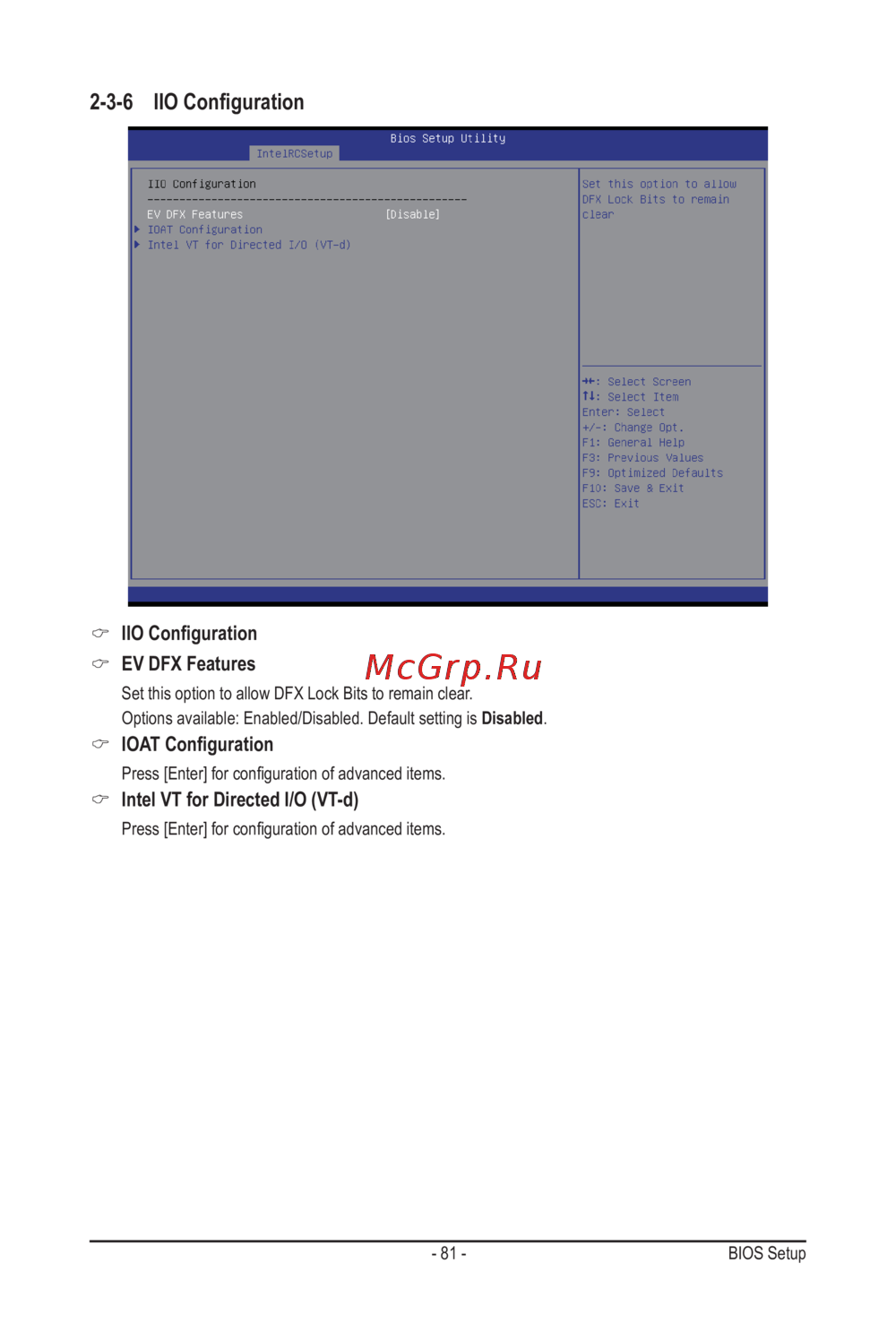

2-3-6 IIOConguration

 IIOConguration

EV DFX Features

Set this option to allow DFX Lock Bits to remain clear.

Options available: Enabled/Disabled. Default setting is Disabled.

 IOATConguration

Press[Enter]forcongurationofadvanceditems.

Intel VT for Directed I/O (VT-d)

Press[Enter]forcongurationofadvanceditems.
