BIOS Setup - 84 -

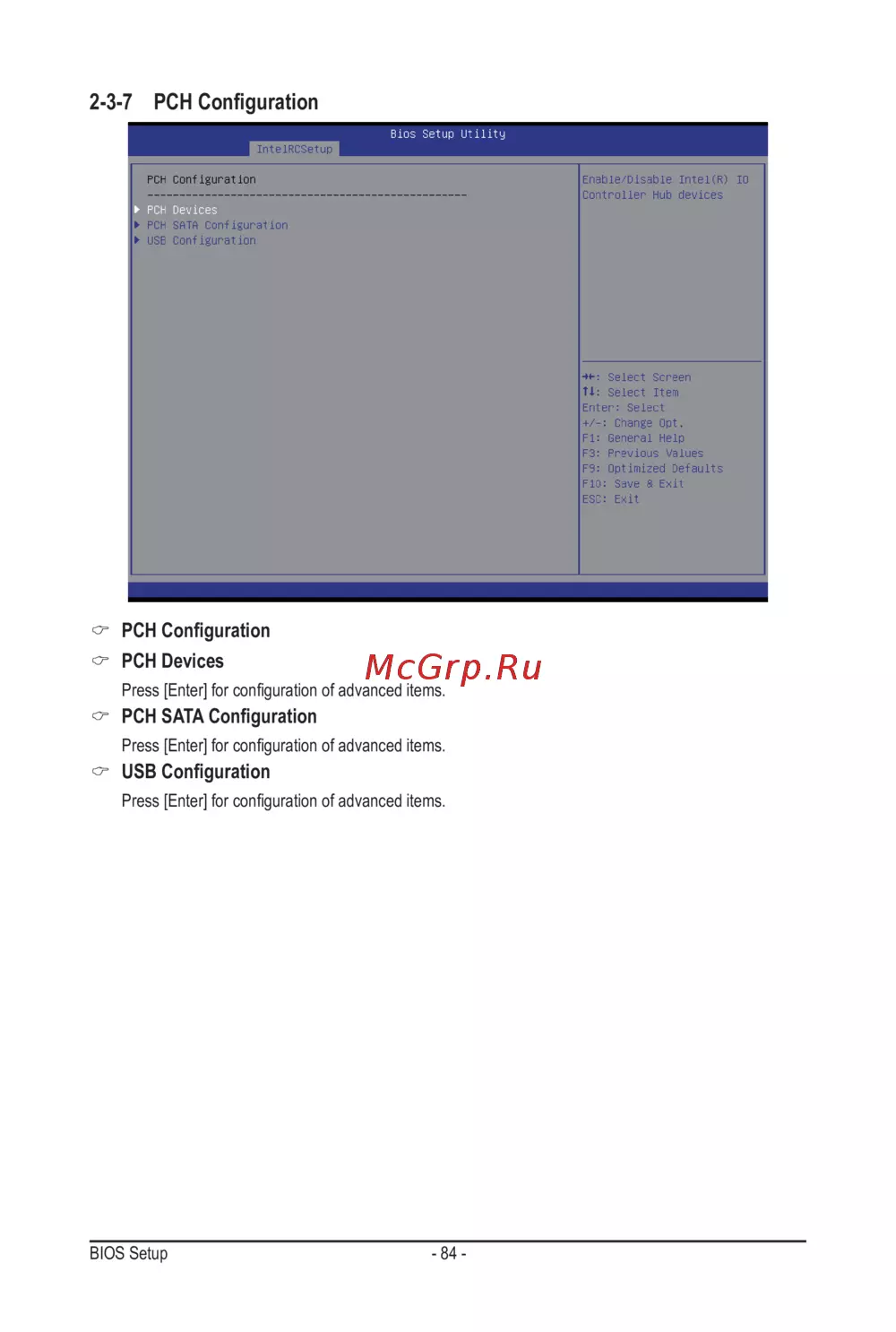

2-3-7 PCHConguration

 PCHConguration

PCH Devices

Press[Enter]forcongurationofadvanceditems.

 PCHSATAConguration

Press[Enter]forcongurationofadvanceditems.

 USBConguration

Press[Enter]forcongurationofadvanceditems.
