MH70-HD0 (rev. 1.0)
Инструкция Страница: 91

Gigabyte MH70-HD0 (rev. 1.0) [91/114] Xhci mode

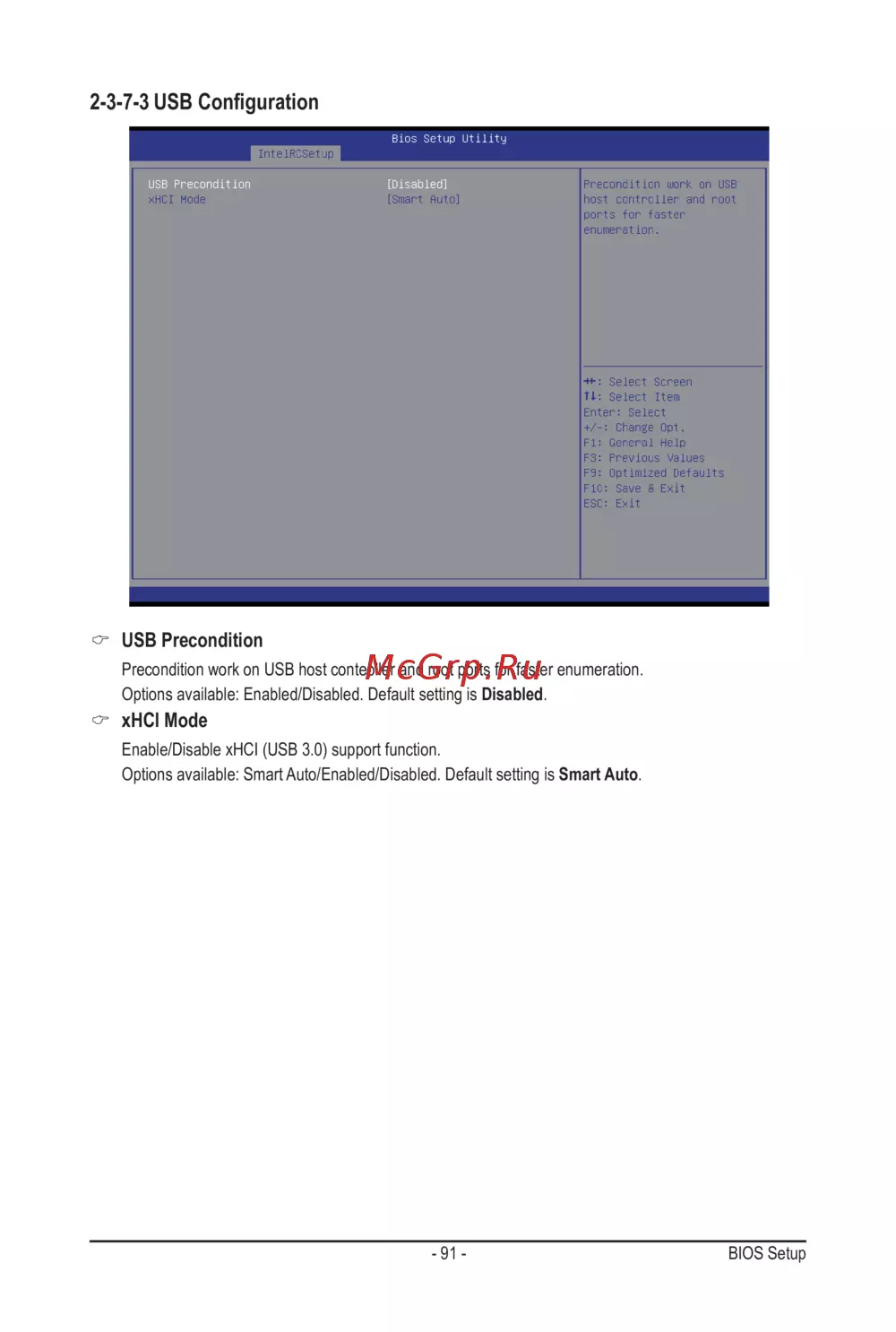

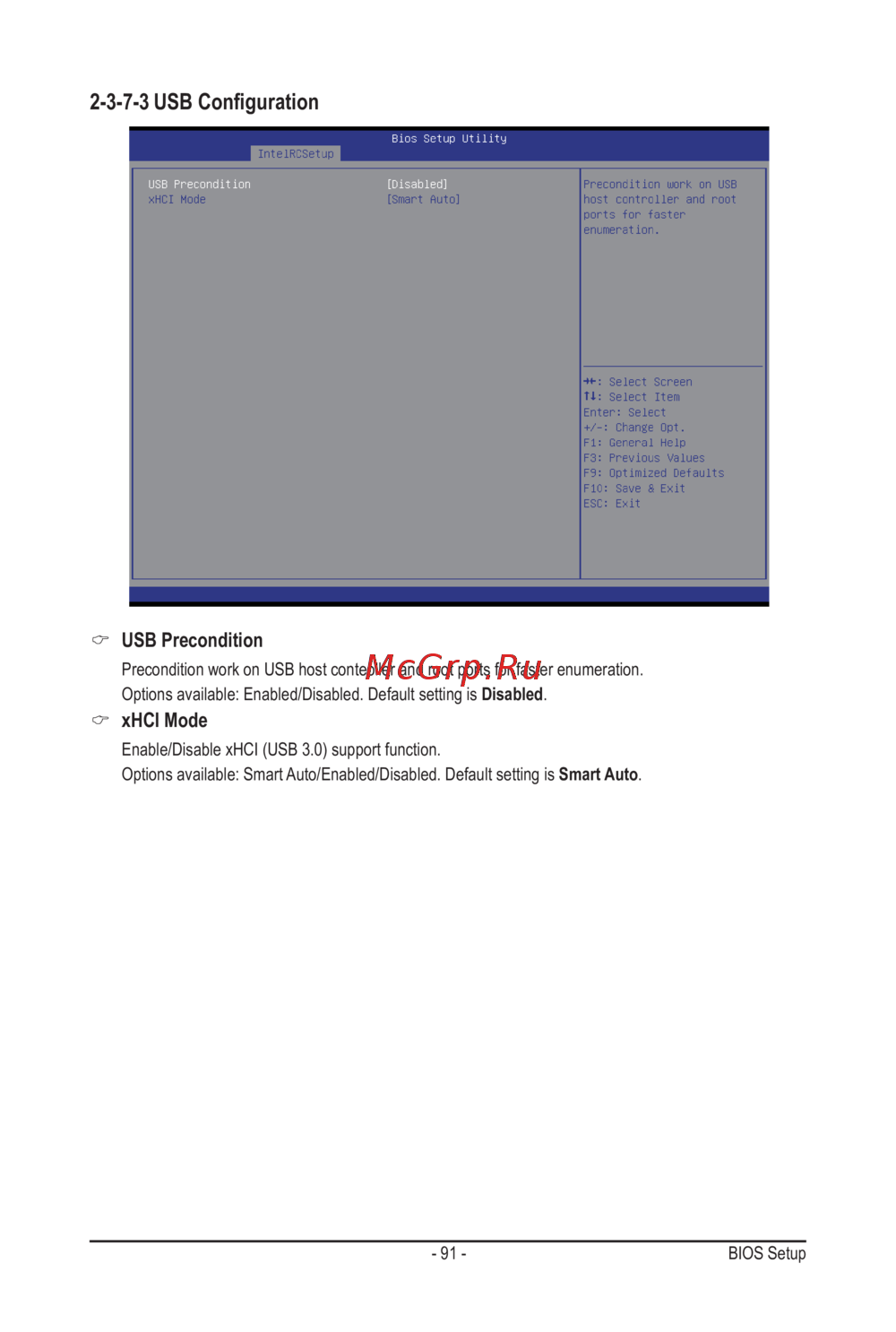

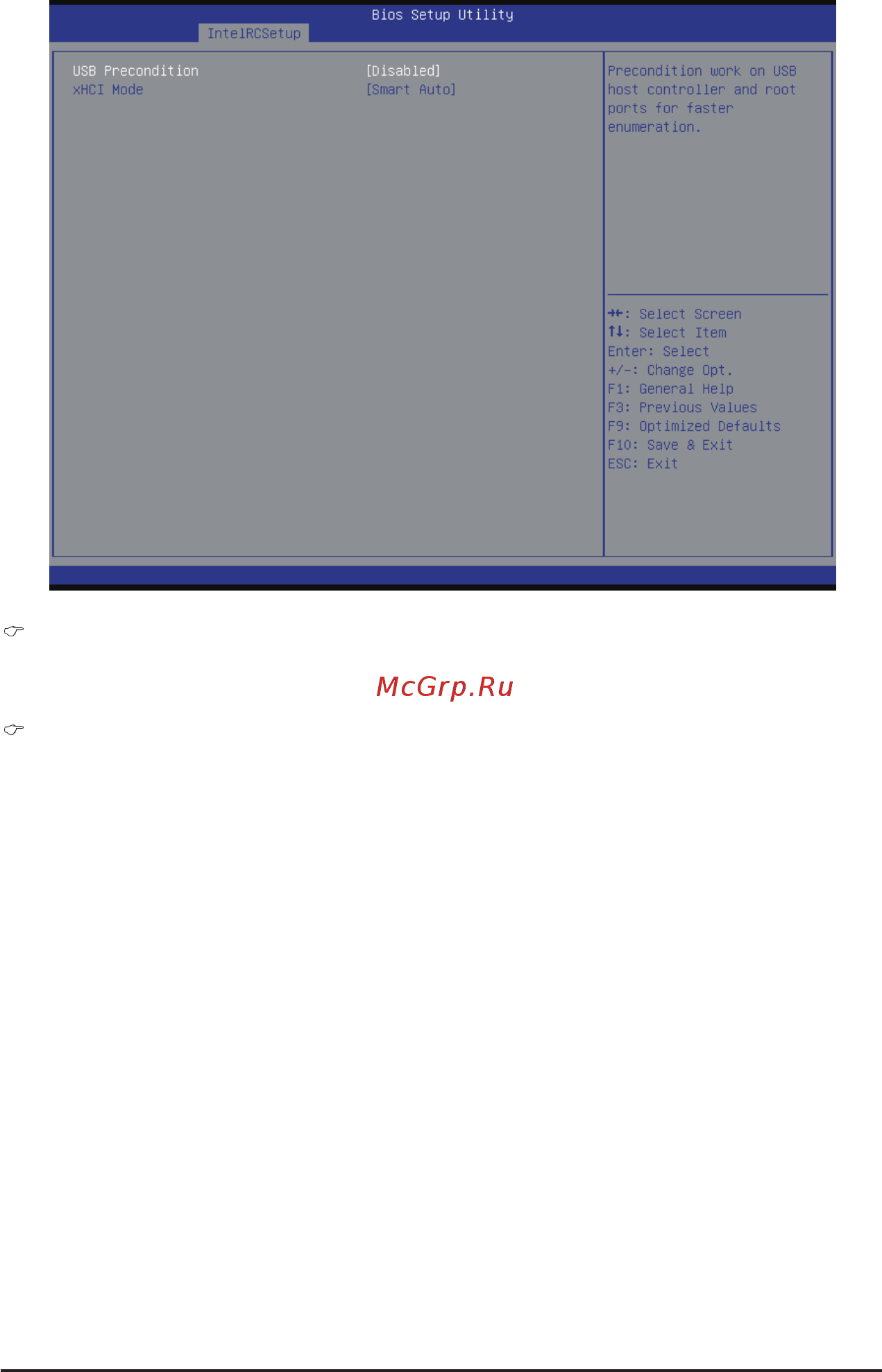

- 91 - BIOS Setup

2-3-7-3USBConguration

USB Precondition

Precondition work on USB host conteoller and root ports for faster enumeration.

Options available: Enabled/Disabled. Default setting is Disabled.

xHCI Mode

Enable/Disable xHCI (USB 3.0) support function.

Options available: Smart Auto/Enabled/Disabled. Default setting is Smart Auto.
