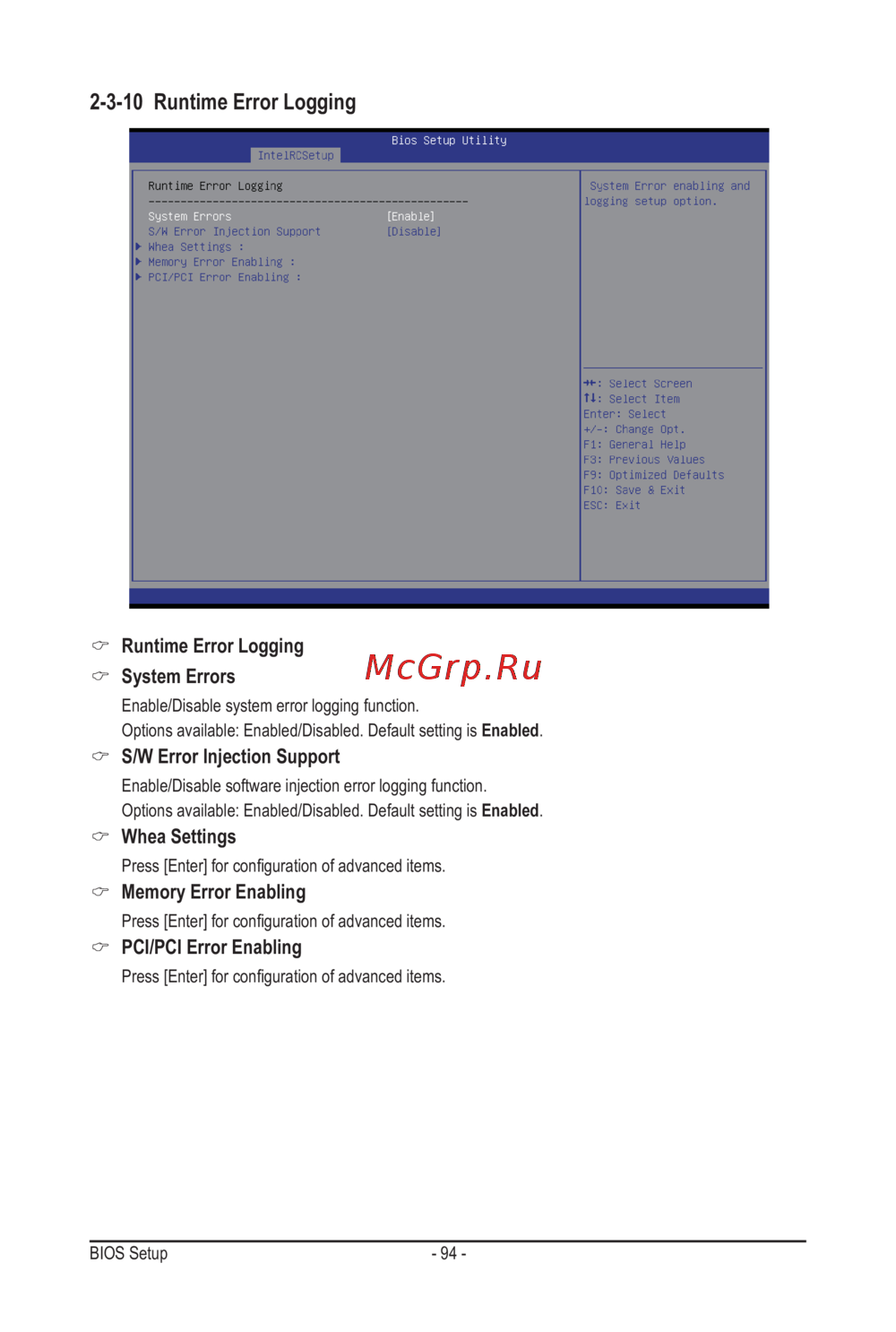

Gigabyte MH70-HD0 (rev. 1.0) [94/114] Wheasettings

BIOS Setup - 94 -

2-3-10 Runtime Error Logging

Runtime Error Logging

System Errors

Enable/Disable system error logging function.

Options available: Enabled/Disabled. Default setting is Enabled.

 S/WErrorInjectionSupport

Enable/Disable software injection error logging function.

Options available: Enabled/Disabled. Default setting is Enabled.

 WheaSettings

Press[Enter]forcongurationofadvanceditems.

Memory Error Enabling

Press[Enter]forcongurationofadvanceditems.

PCI/PCI Error Enabling

Press[Enter]forcongurationofadvanceditems.
