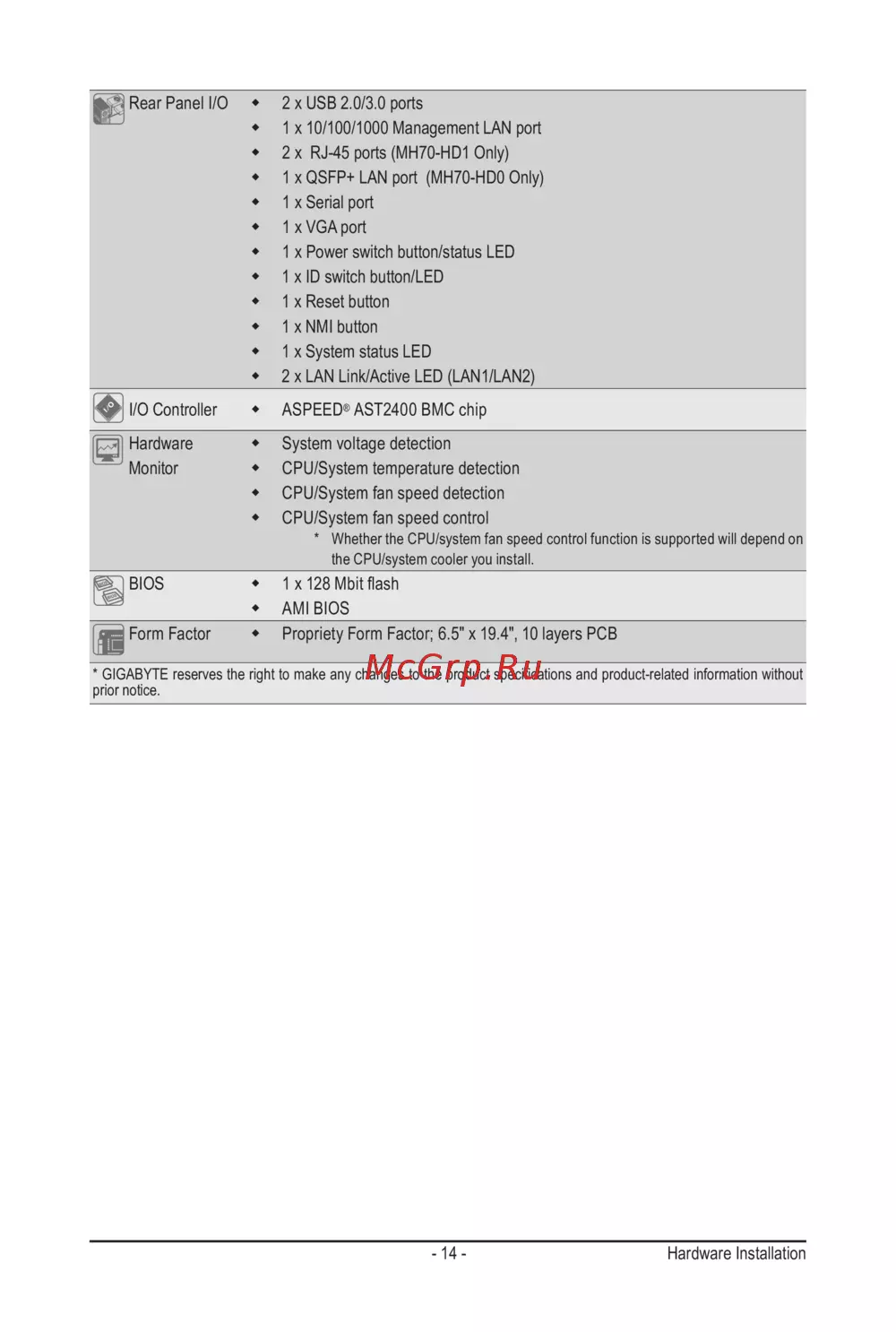

- 14 - Hardware Installation
Rear Panel I/O 2 x USB 2.0/3.0 ports
1 x 10/100/1000 Management LAN port
2 x RJ-45 ports (MH70-HD1 Only)
1 x QSFP+ LAN port (MH70-HD0 Only)
1 x Serial port
1 x VGA port
1 x Power switch button/status LED
1 x ID switch button/LED
1 x Reset button
1 x NMI button
1 x System status LED
2 x LAN Link/Active LED (LAN1/LAN2)
I/O Controller ASPEED
®
AST2400 BMC chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on
the CPU/system cooler you install.
BIOS 1x128Mbitash
AMI BIOS
Form Factor Propriety Form Factor; 6.5" x 19.4", 10 layers PCB
*GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
