![Gigabyte MH70-HD1 (rev. 1.0) [24/114] With the use of the power connector the power supply can supply enough stable power to all the componentsonthemotherboard beforeconnectingthepowerconnector firstmakesurethepower supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation](/img/pdf.png)
Gigabyte MH70-HD1 (rev. 1.0) [24/114] With the use of the power connector the power supply can supply enough stable power to all the componentsonthemotherboard beforeconnectingthepowerconnector firstmakesurethepower supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation
![Gigabyte MH70-HD1 (rev. 1.0) [24/114] With the use of the power connector the power supply can supply enough stable power to all the componentsonthemotherboard beforeconnectingthepowerconnector firstmakesurethepower supply is turned off and all devices are properly installed the power connector possesses a foolproof design connect the power supply cable to the power connector in the correct orientation](/views2/1680179/page24/bg18.png)
Hardware Installation - 24 -

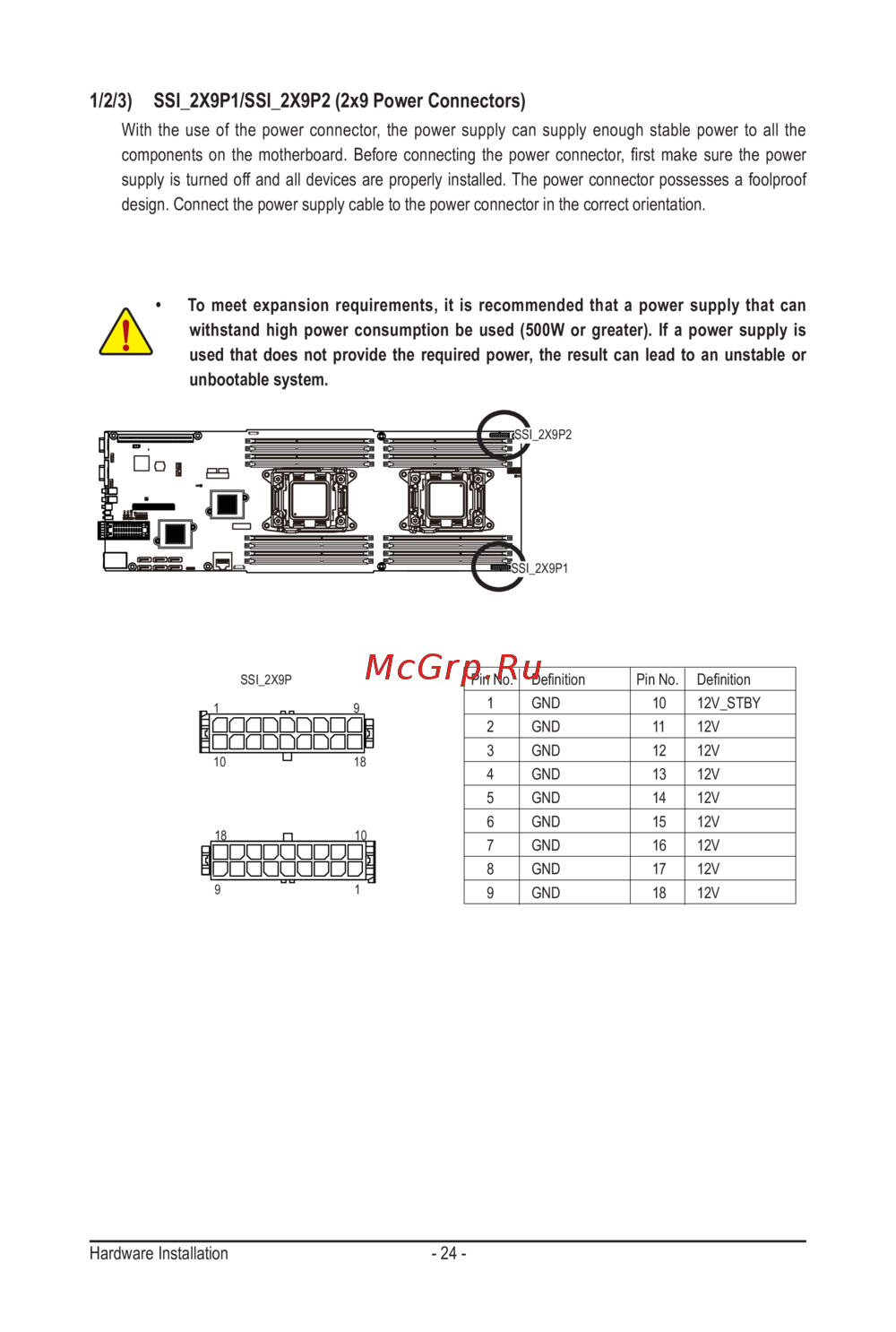

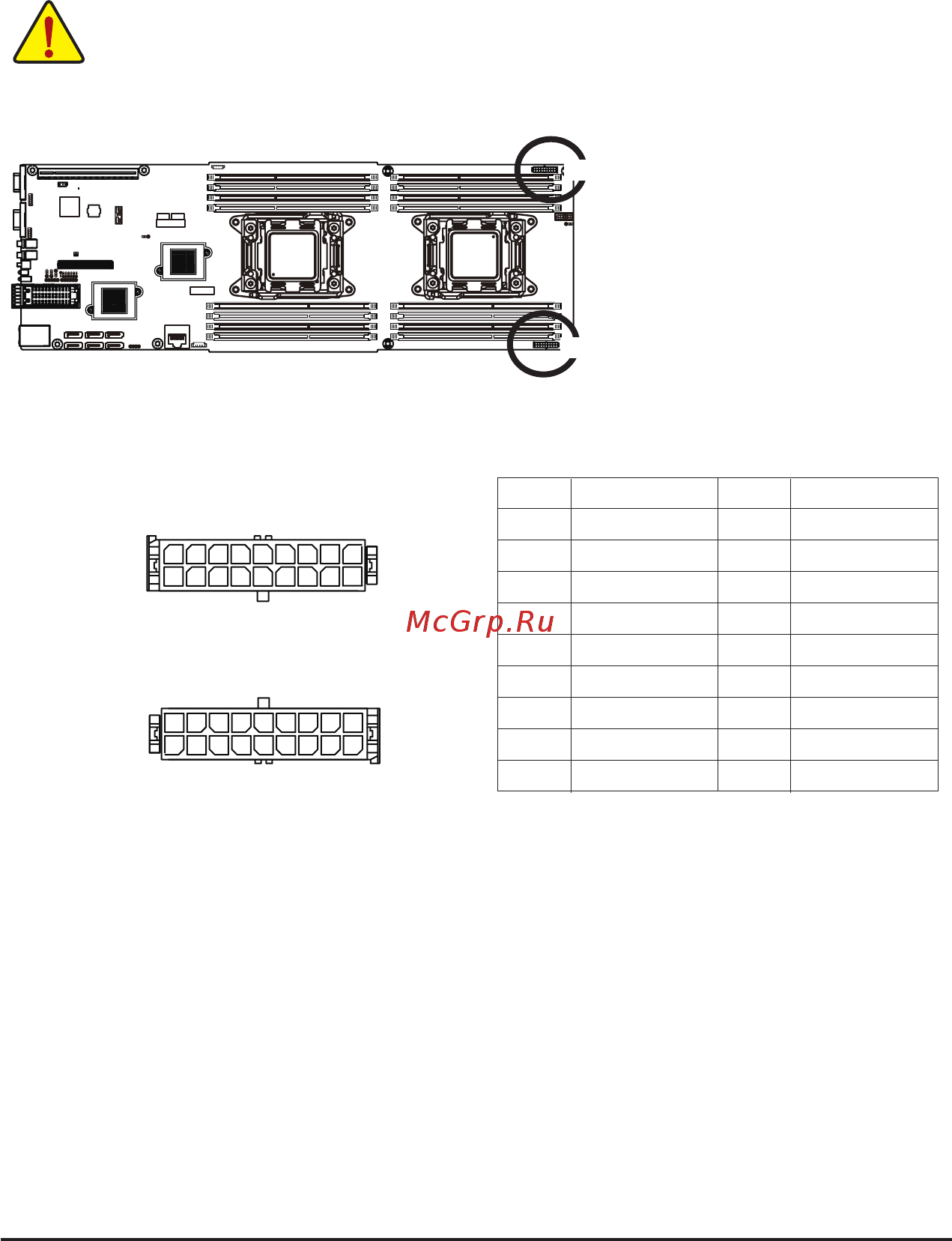

1/2/3) SSI_2X9P1/SSI_2X9P2 (2x9 Power Connectors)
With the use of the power connector, the power supply can supply enough stable power to all the
componentsonthemotherboard.Beforeconnectingthepowerconnector,rstmake sure the power
supply is turned off and all devices are properly installed. The power connector possesses a foolproof
design. Connect the power supply cable to the power connector in the correct orientation.
• To meet expansion requirements, it is recommended that a power supply that can
withstandhighpowerconsumptionbeused(500Worgreater).Ifapowersupplyis
used that does not provide the required power, the result can lead to an unstable or
unbootable system.
SSI_2X9P1
SSI_2X9P2
PinNo. Denition
1 GND
2 GND
3 GND
4 GND
5 GND
6 GND
7 GND
8 GND
9 GND
PinNo. Denition
10 12V_STBY
11 12V
12 12V
13 12V
14 12V
15 12V
16 12V
17 12V
18 12V
1
18
9
10
10
9
18
1
SSI_2X9P
