Hardware Installation - 28 -
10) COM2 (Serial Port Header)
The COM header provides one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.

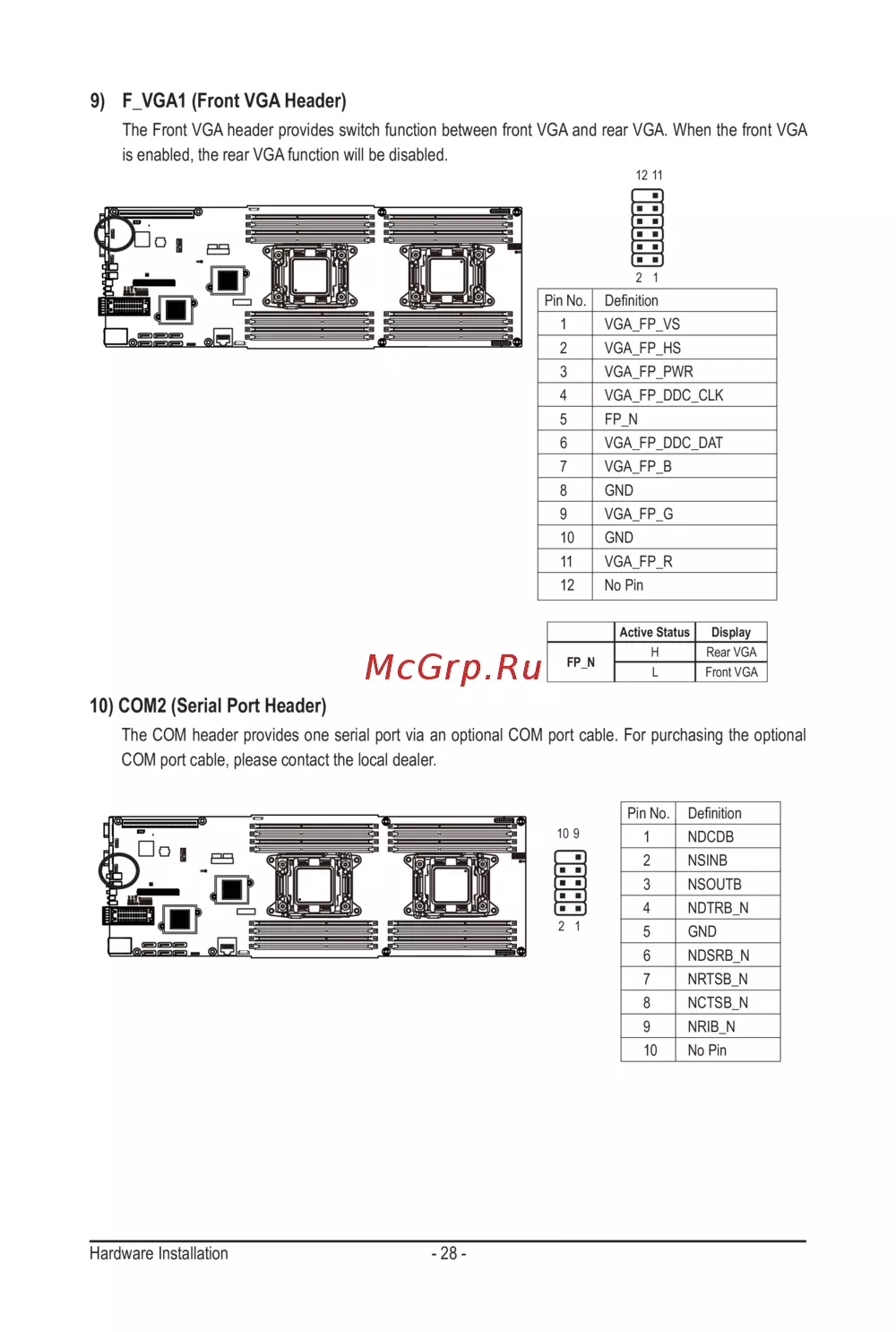

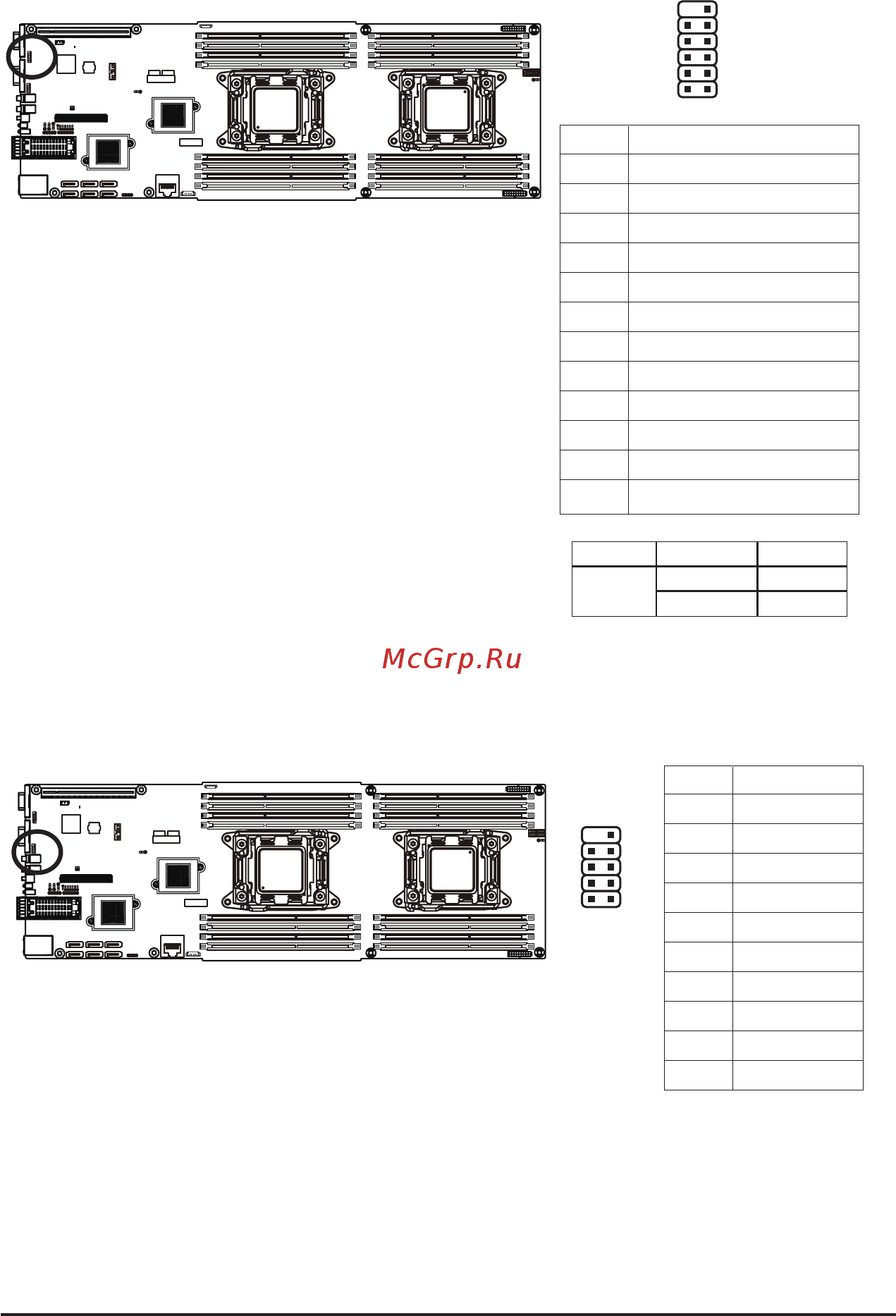

9) F_VGA1 (Front VGA Header)
The Front VGA header provides switch function between front VGA and rear VGA. When the front VGA
is enabled, the rear VGA function will be disabled.
PinNo. Denition
1 VGA_FP_VS
2 VGA_FP_HS
3 VGA_FP_PWR
4 VGA_FP_DDC_CLK
5 FP_N
6 VGA_FP_DDC_DAT
7 VGA_FP_B
8 GND
9 VGA_FP_G
10 GND
11 VGA_FP_R
12 No Pin
Active Status Display
FP_N
H Rear VGA
L Front VGA
12 11
2 1
2 1
10 9
PinNo. Denition
1 NDCDB
2 NSINB
3 NSOUTB
4 NDTRB_N
5 GND
6 NDSRB_N
7 NRTSB_N
8 NCTSB_N
9 NRIB_N
10 No Pin
