Gigabyte MH70-HD1 (rev. 1.0) [32/114] 3 close me updated

Hardware Installation - 32 -

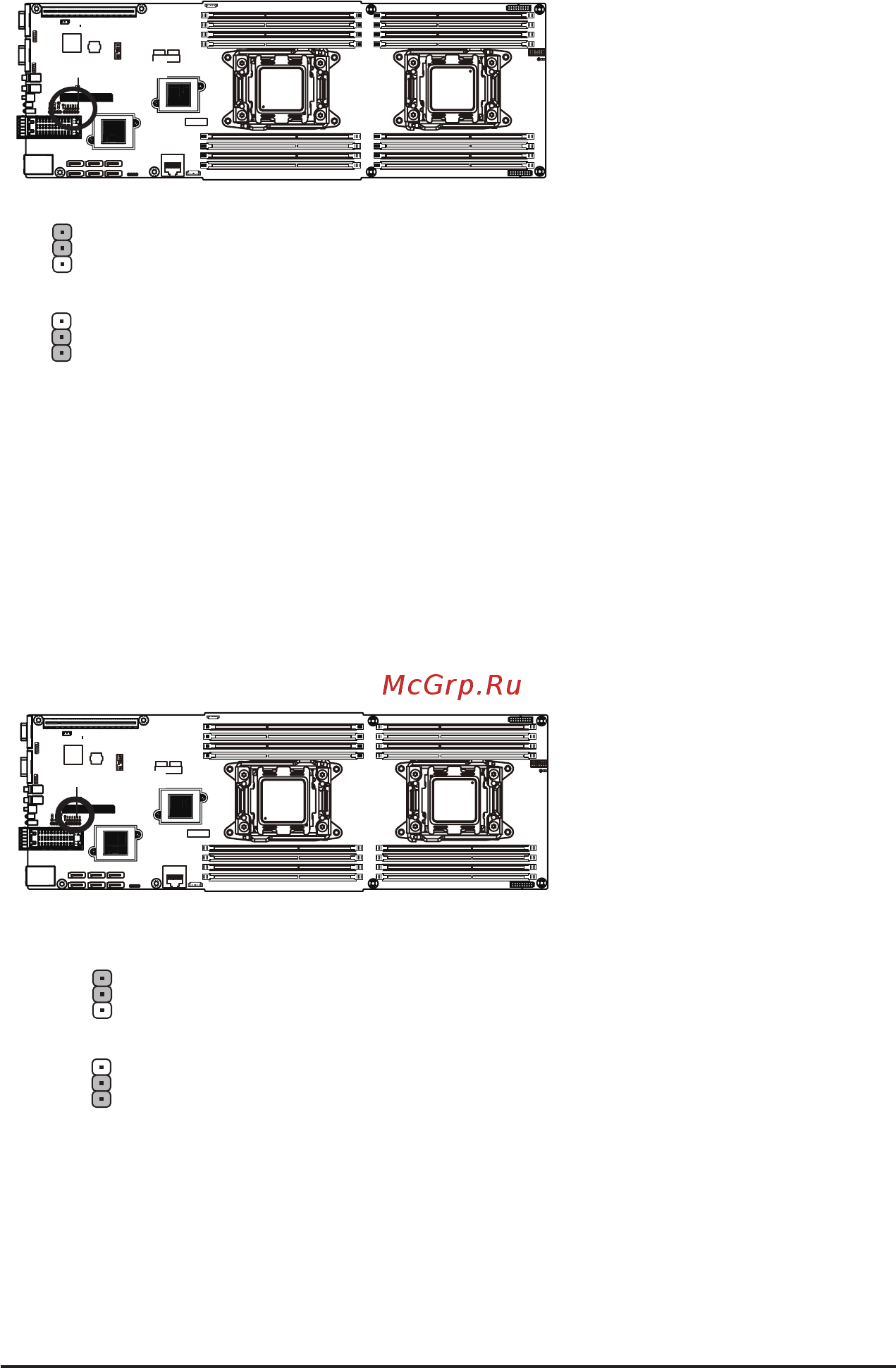

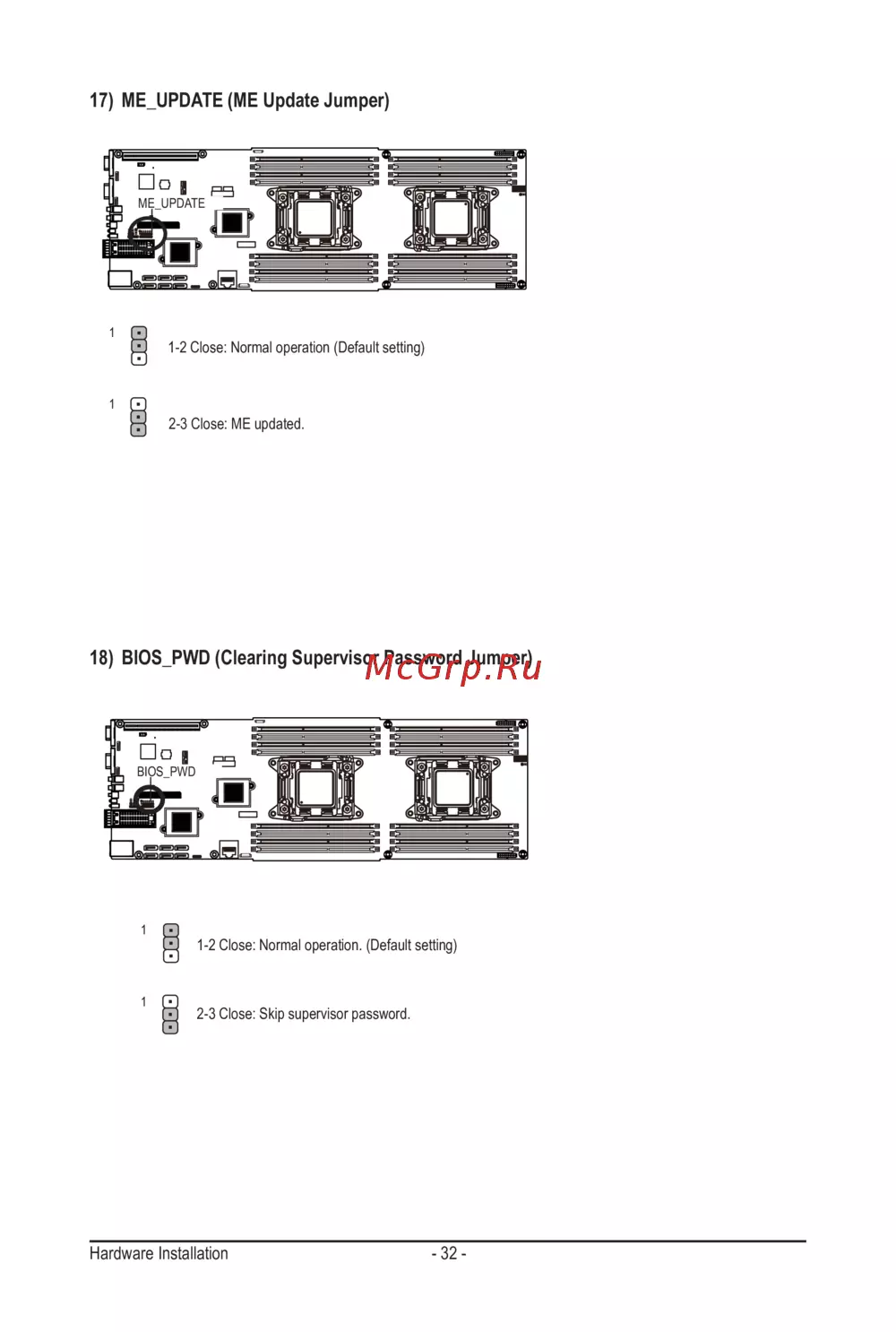

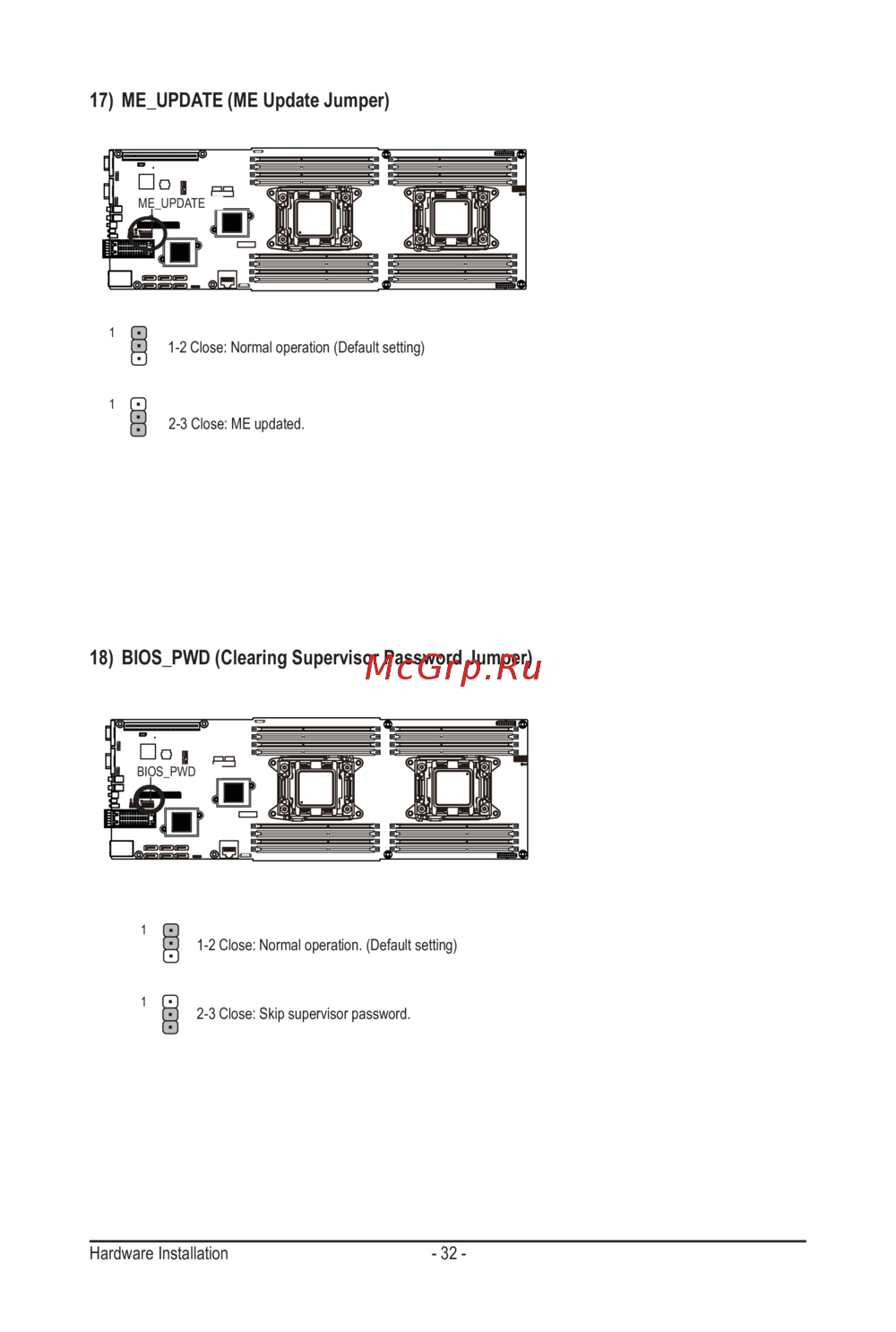

17) ME_UPDATE (ME Update Jumper)

1-2 Close: Normal operation (Default setting)

2-3 Close: ME updated.

ME_UPDATE

18) BIOS_PWD(ClearingSupervisorPasswordJumper)

2-3 Close: Skip supervisor password.

1-2 Close: Normal operation. (Default setting)

BIOS_PWD
