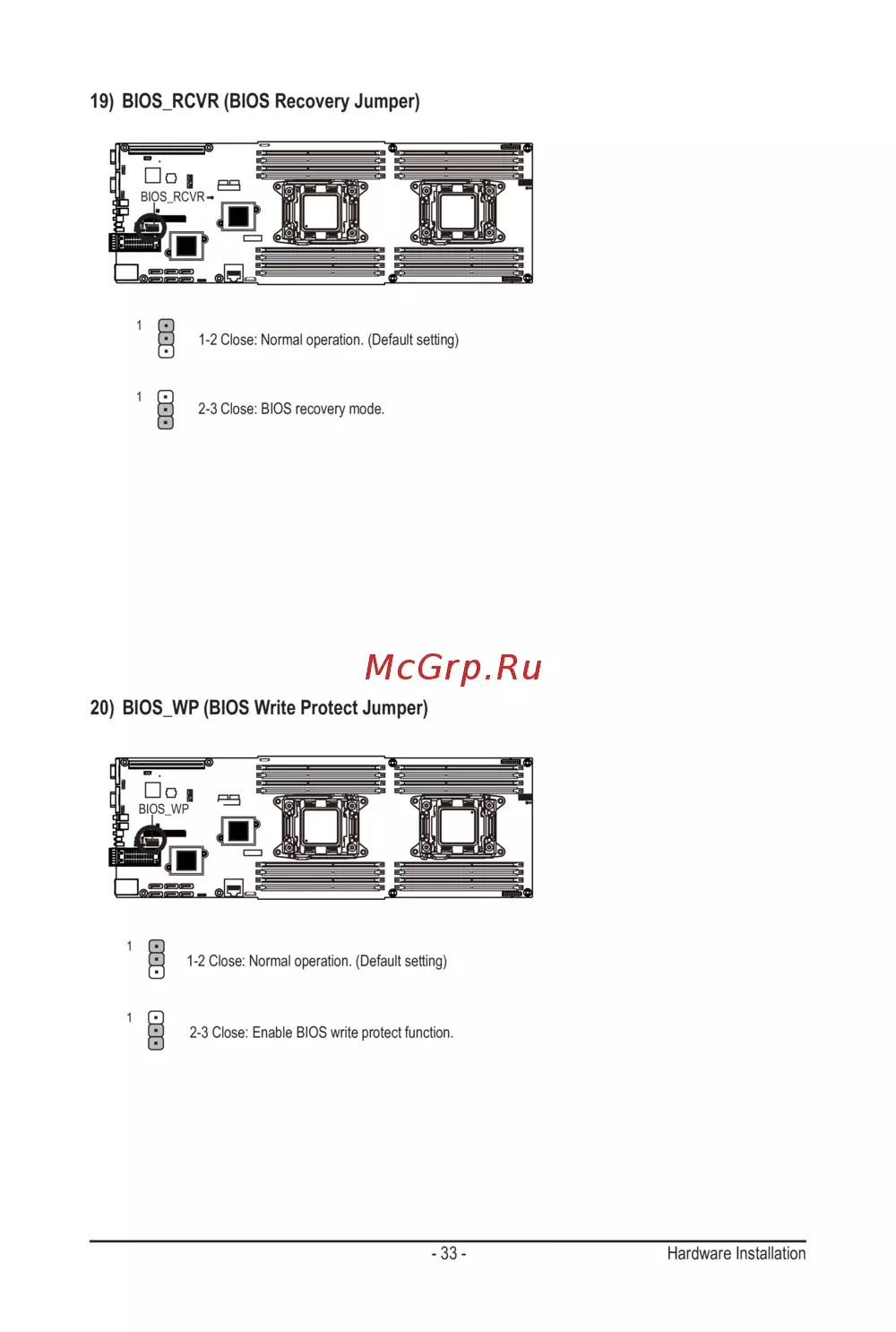

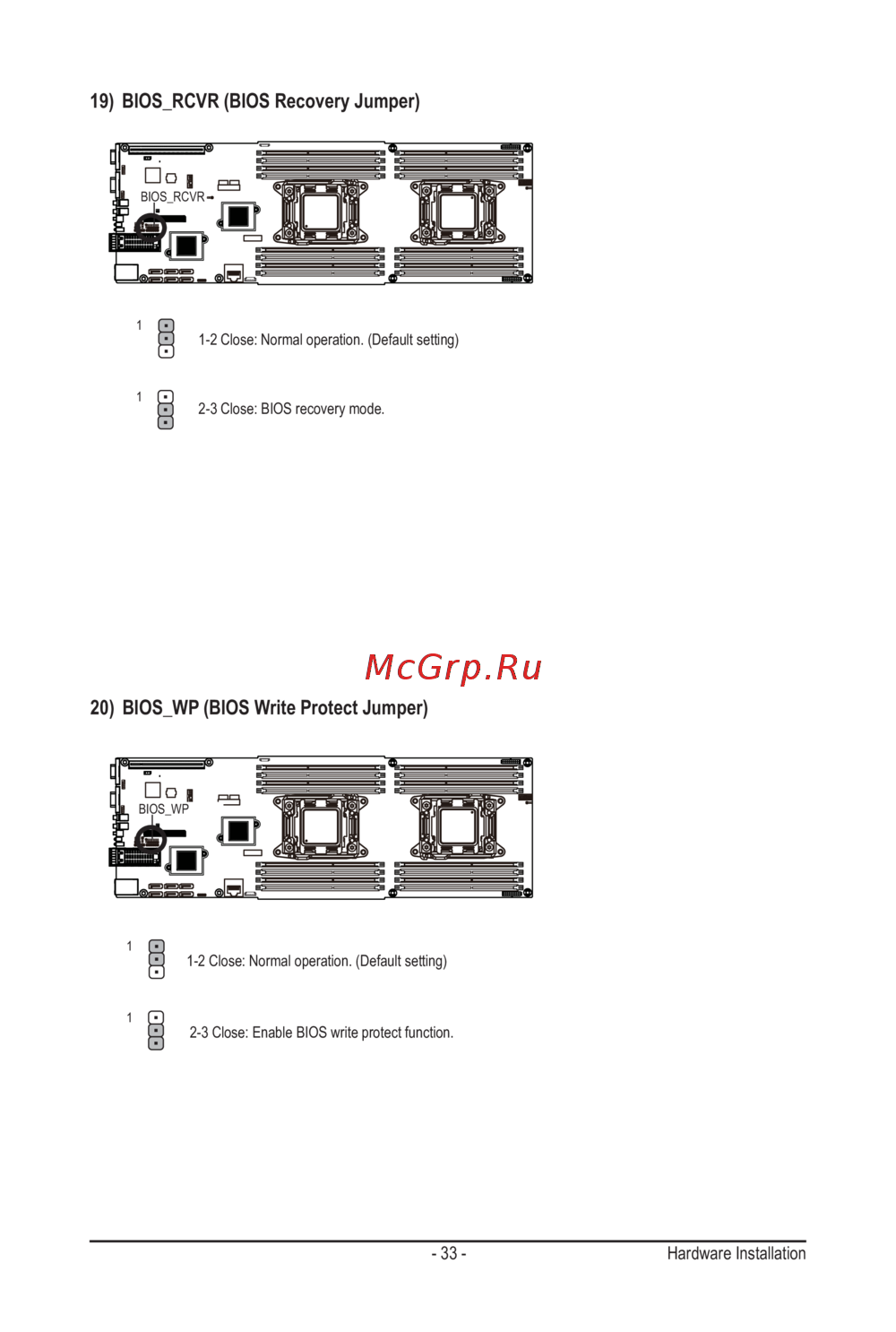

Gigabyte MH70-HD1 (rev. 1.0) [33/114] 33 hardware installation

- 33 - Hardware Installation

2-3 Close: BIOS recovery mode.

1-2 Close: Normal operation. (Default setting)

19) BIOS_RCVR (BIOS Recovery Jumper)

BIOS_RCVR

20) BIOS_WP(BIOSWriteProtectJumper)

1-2 Close: Normal operation. (Default setting)

2-3 Close: Enable BIOS write protect function.

BIOS_WP
