- 35 - Hardware Installation

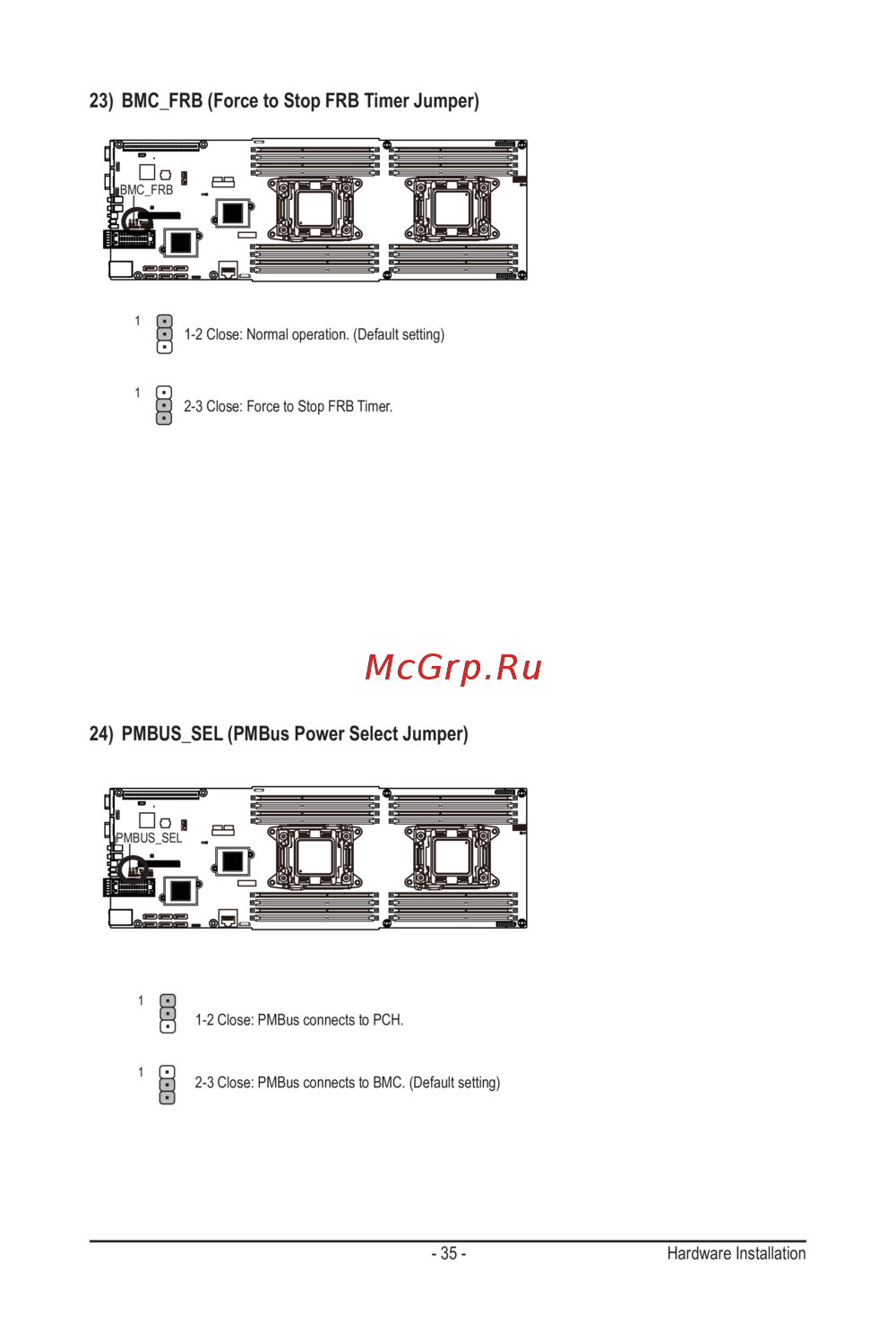

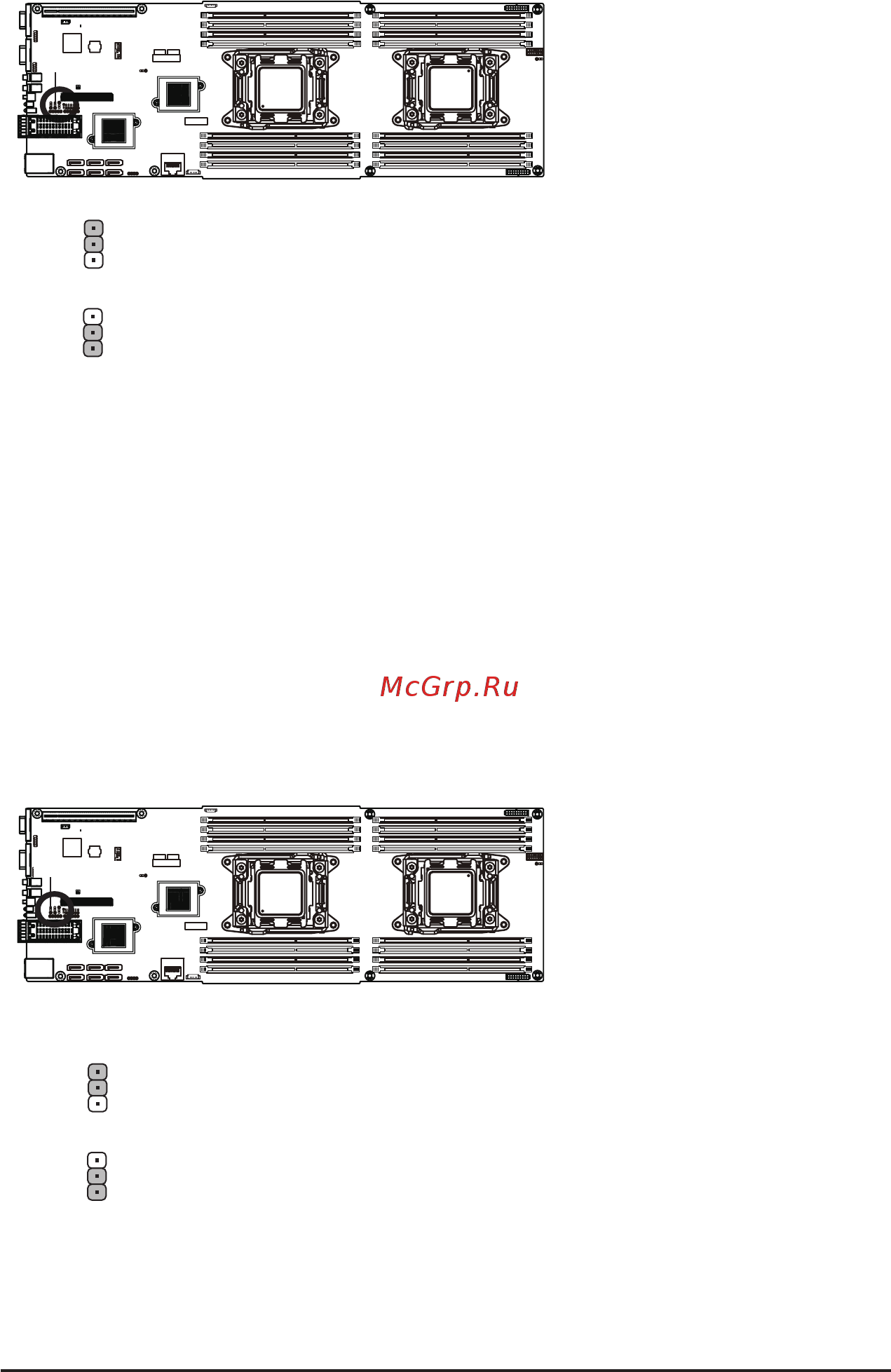

24) PMBUS_SEL (PMBus Power Select Jumper)

2-3 Close: PMBus connects to BMC. (Default setting)

1-2 Close: PMBus connects to PCH.

23) BMC_FRB (Force to Stop FRB Timer Jumper)

1-2 Close: Normal operation. (Default setting)

2-3 Close: Force to Stop FRB Timer.
