Gigabyte MH70-HD1 (rev. 1.0) [36/114] Ack_sel 4 nodes system and rack system switch jumper

Hardware Installation - 36 -

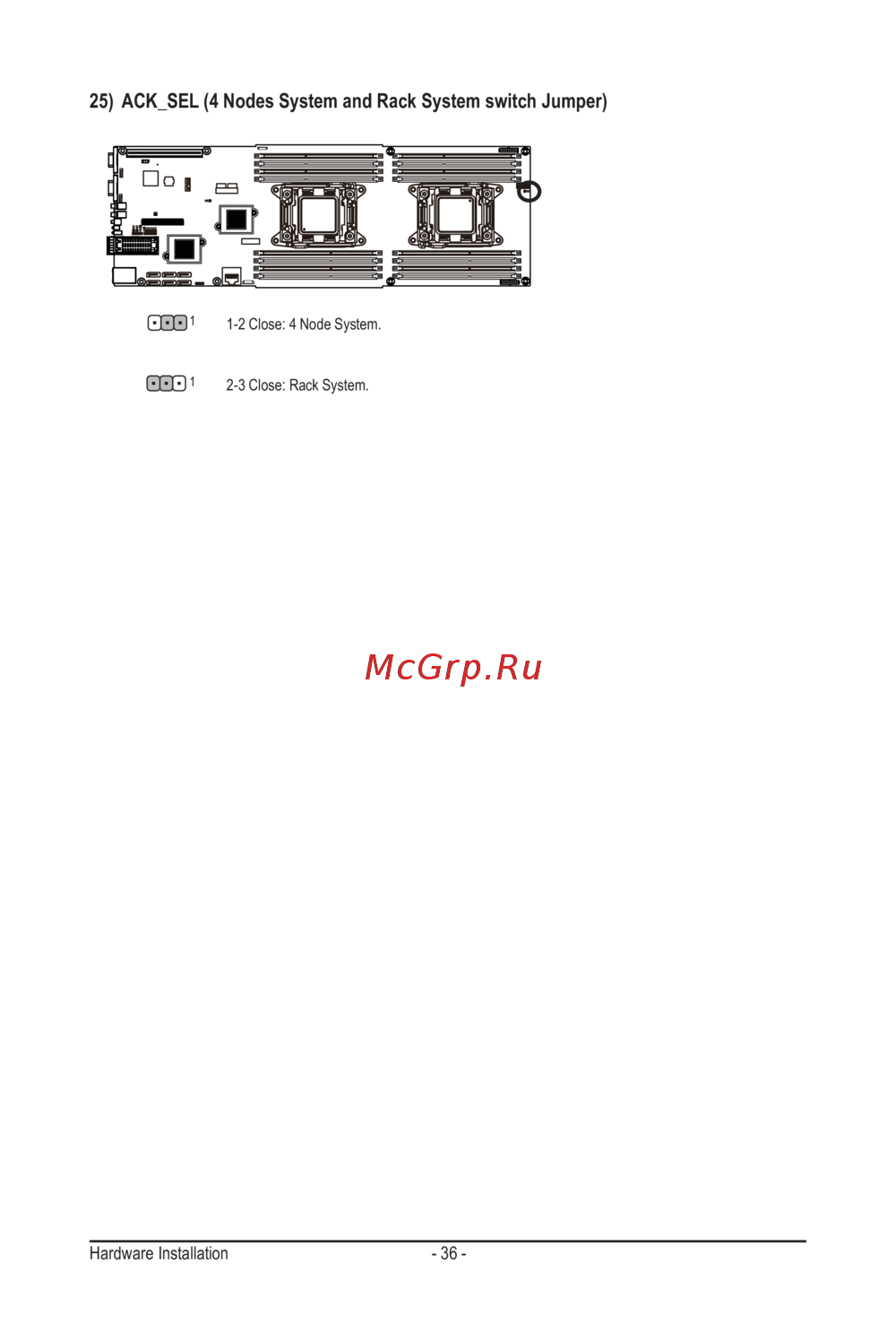

25) ACK_SEL (4 Nodes System and Rack System switch Jumper)

1-2 Close: 4 Node System.

2-3 Close: Rack System.
