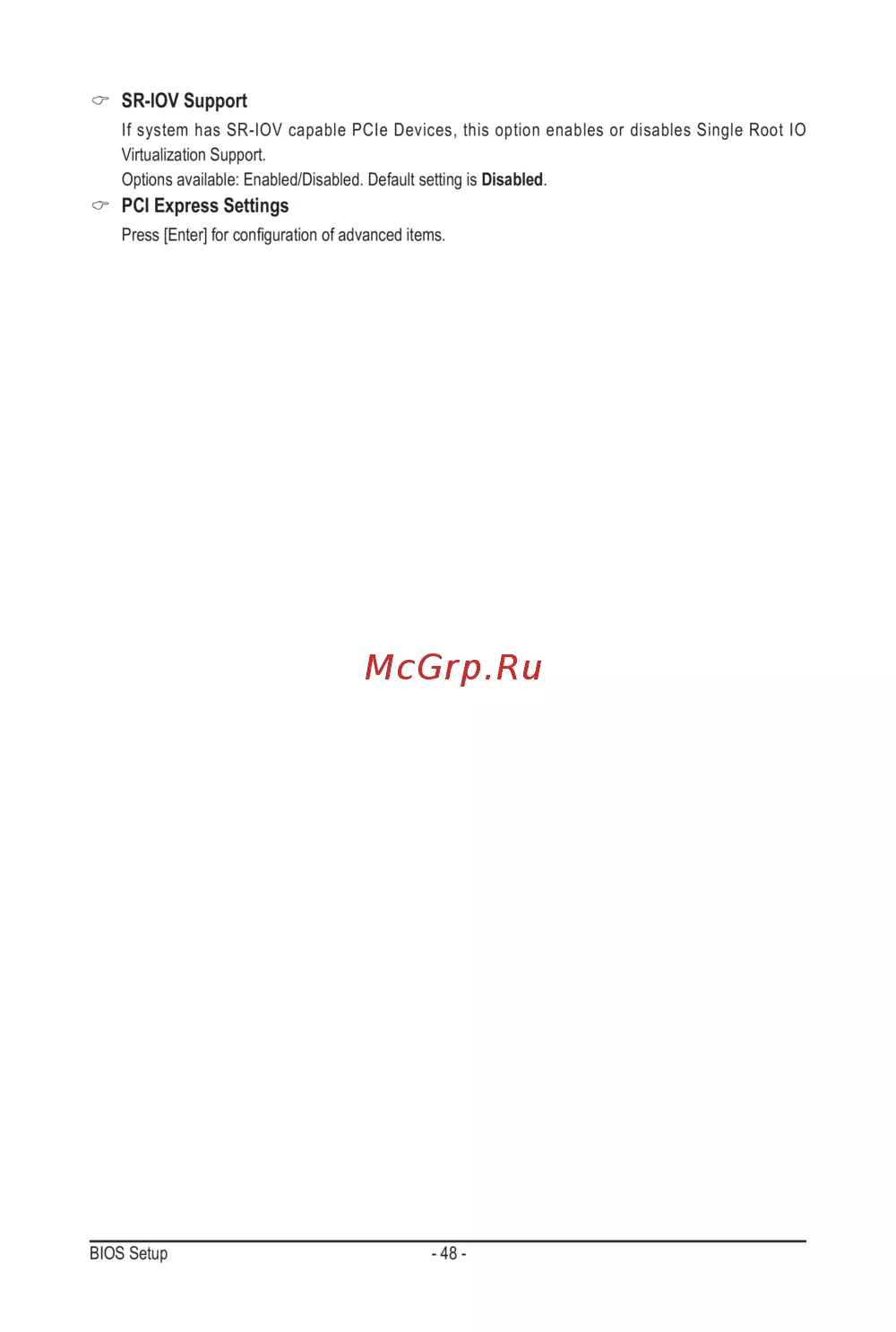

Gigabyte MH70-HD1 (rev. 1.0) [48/114] Sr iov support

BIOS Setup - 48 -

SR-IOV Support

If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO

Virtualization Support.

Options available: Enabled/Disabled. Default setting is Disabled.
