Gigabyte MH70-HD1 (rev. 1.0) [54/114] Postreportconfiguration error message report post error message

BIOS Setup - 54 -

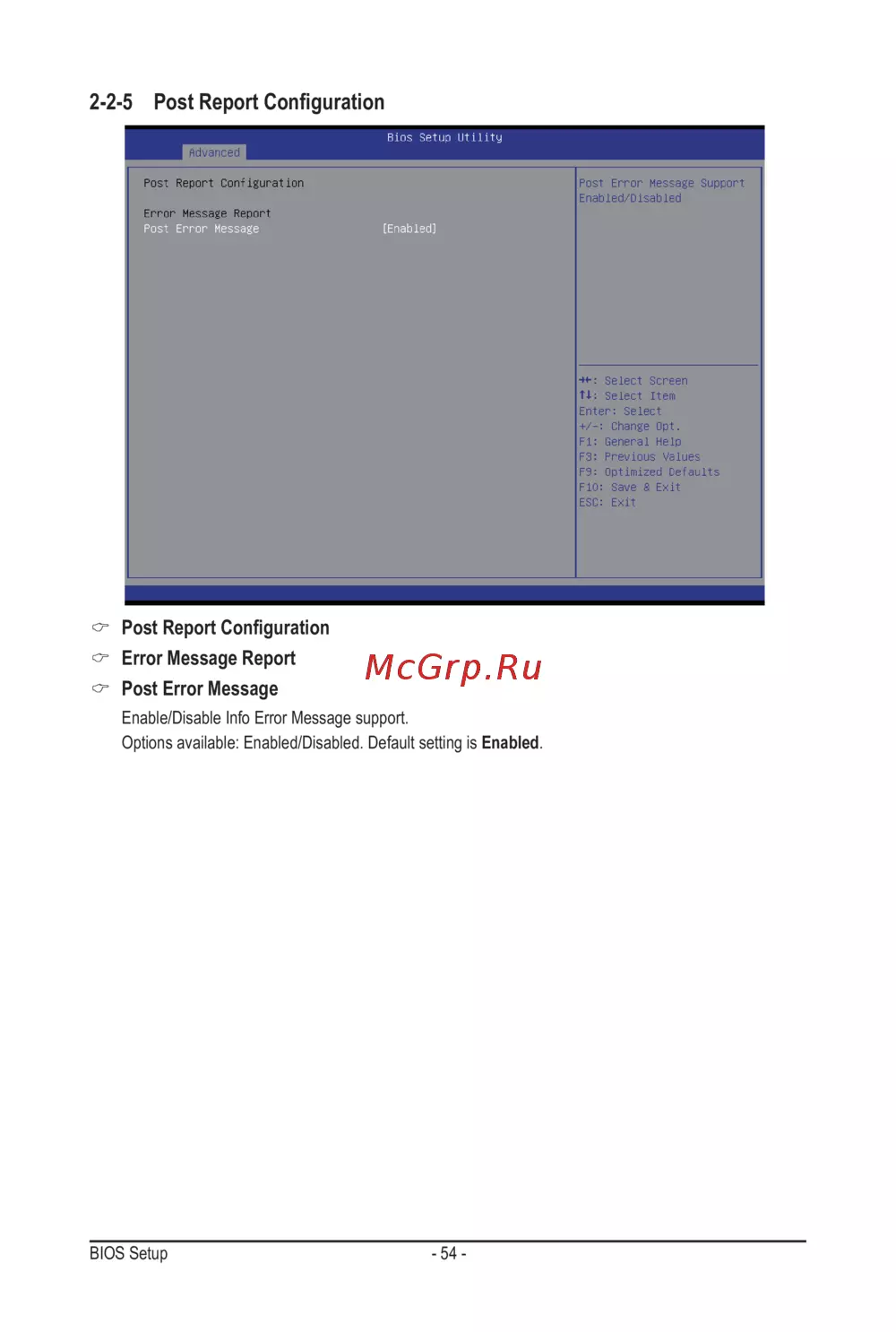

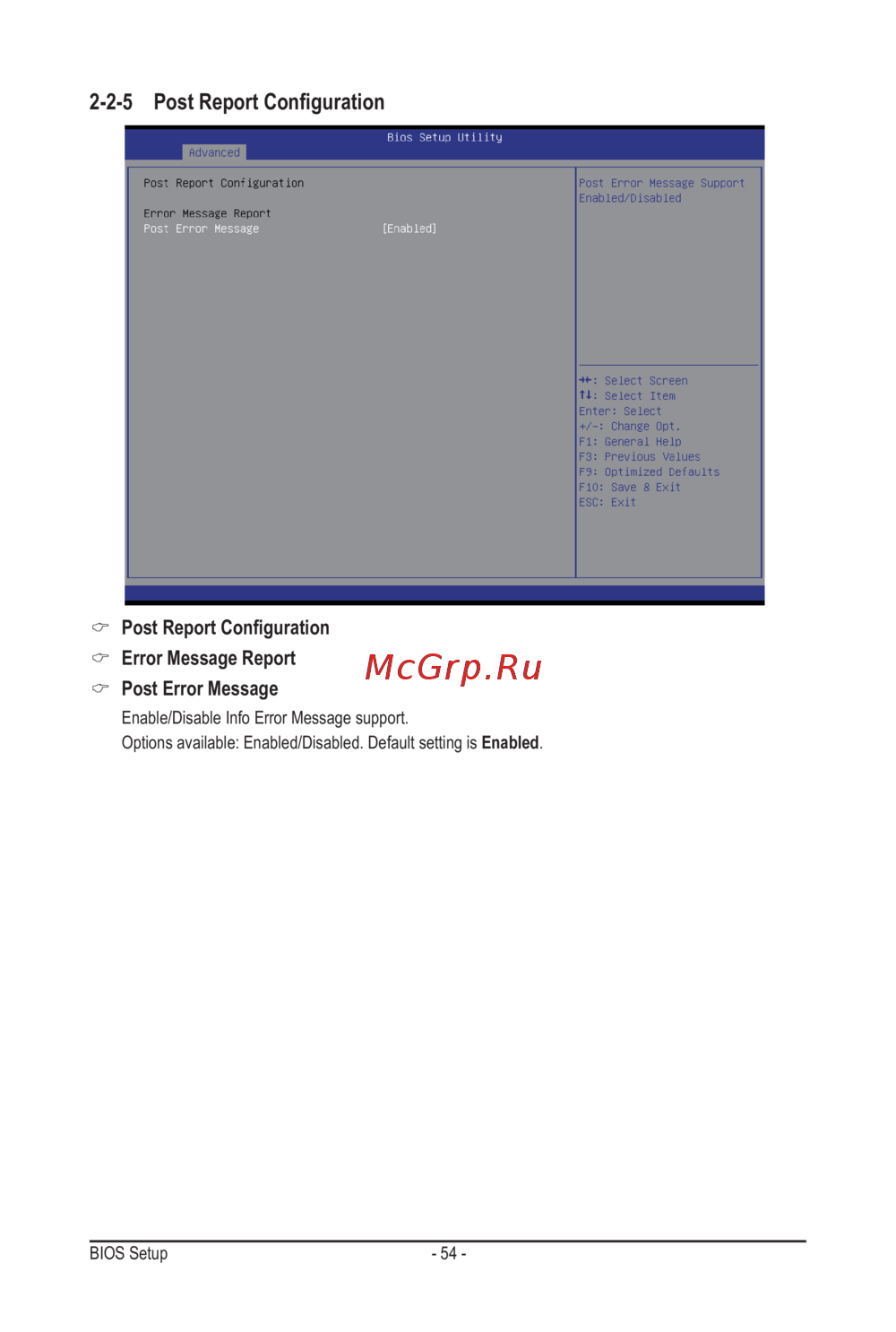

2-2-5 PostReportConguration

 PostReportConguration

Error Message Report

Post Error Message

Enable/Disable Info Error Message support.

Options available: Enabled/Disabled. Default setting is Enabled.
