- 55 - BIOS Setup

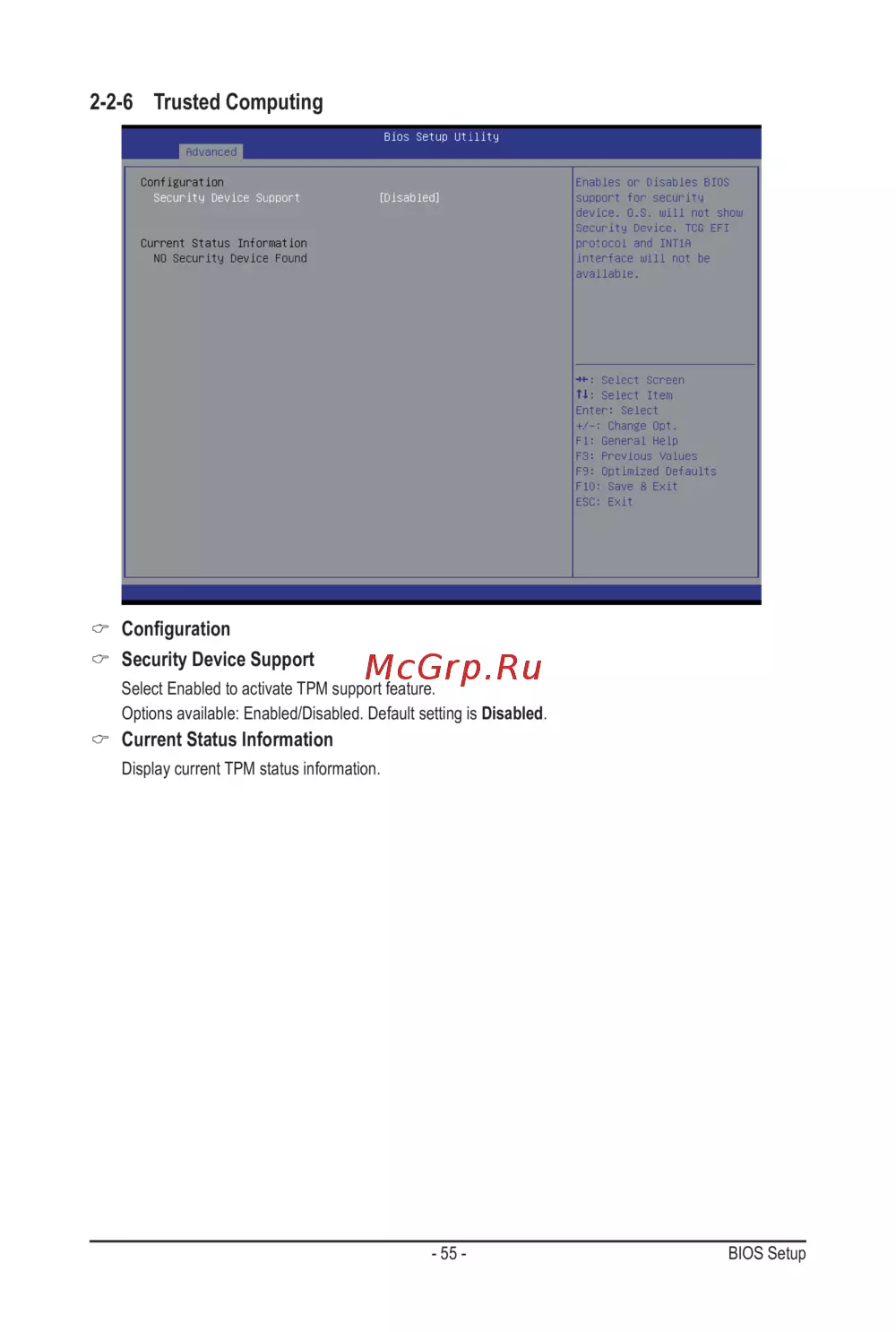

2-2-6 Trusted Computing

 Conguration

Security Device Support

Select Enabled to activate TPM support feature.

Options available: Enabled/Disabled. Default setting is Disabled.

Current Status Information

Display current TPM status information.
