Gigabyte MH70-HD1 (rev. 1.0) [82/114] No snoop

BIOS Setup - 82 -

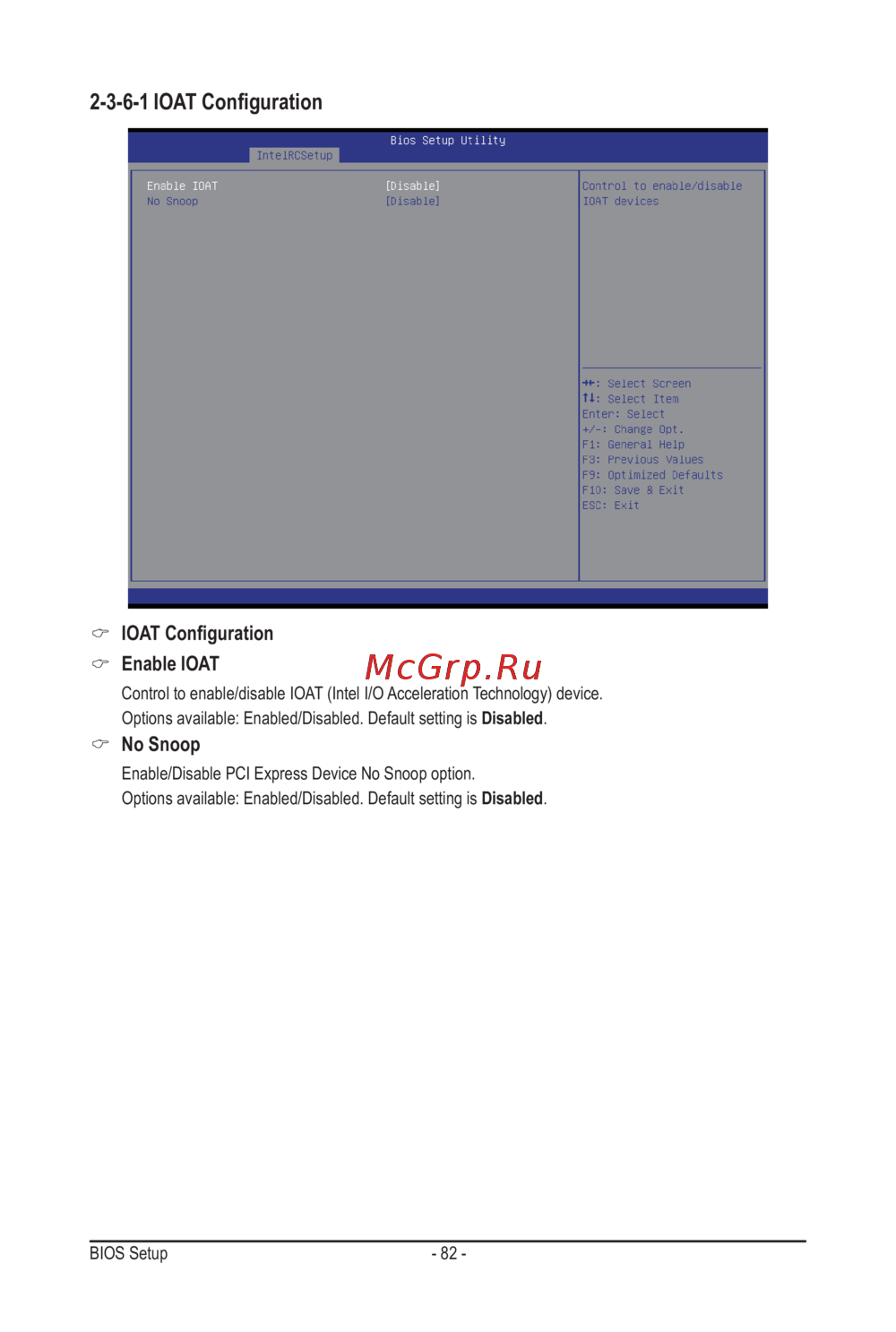

2-3-6-1IOATConguration

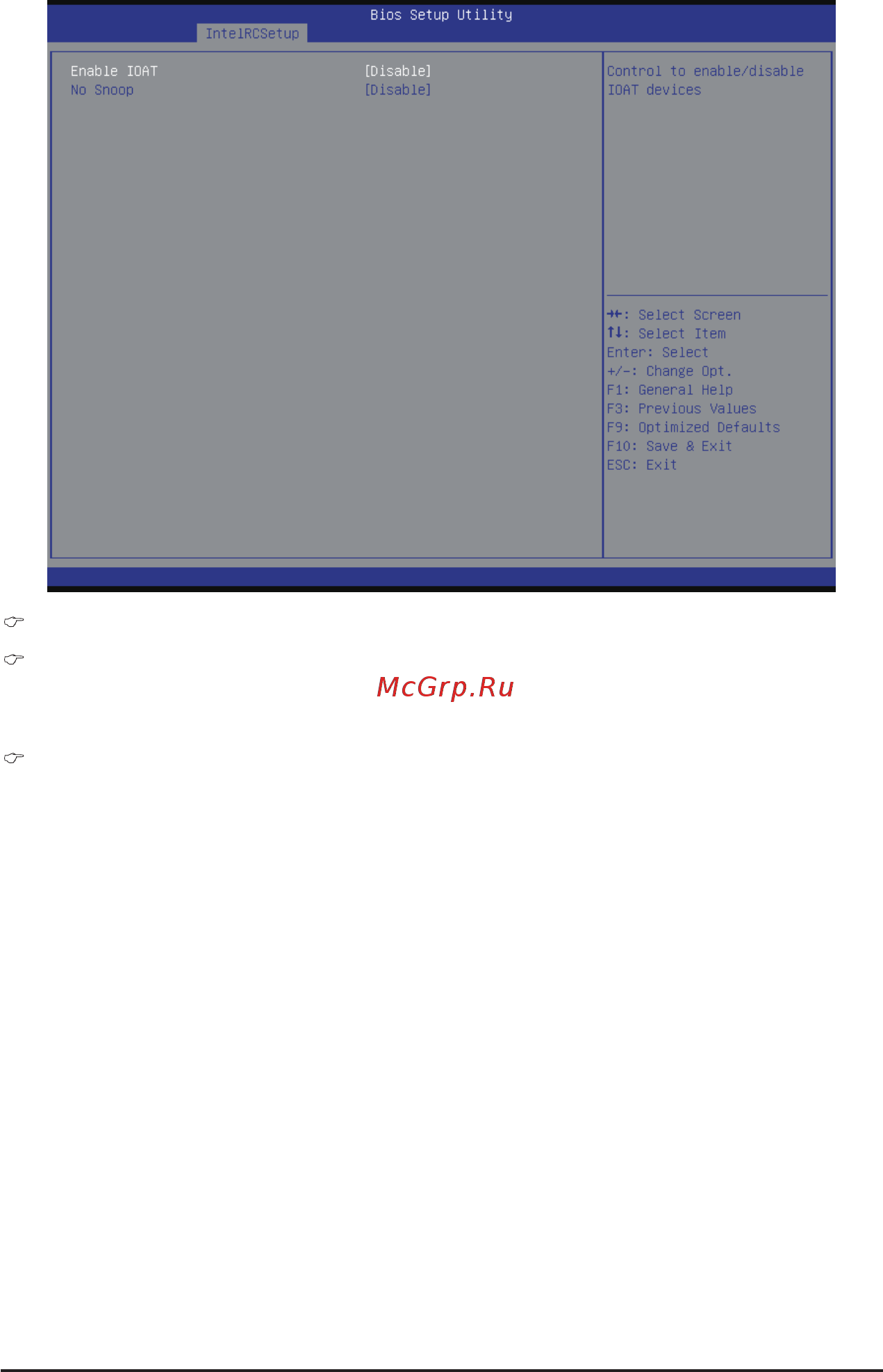

 IOATConguration

Enable IOAT

Control to enable/disable IOAT (Intel I/O Acceleration Technology) device.

Options available: Enabled/Disabled. Default setting is Disabled.

No Snoop

Enable/Disable PCI Express Device No Snoop option.

Options available: Enabled/Disabled. Default setting is Disabled.
