Gigabyte MH70-HD1 (rev. 1.0) [85/114] Pch crid

- 85 - BIOS Setup

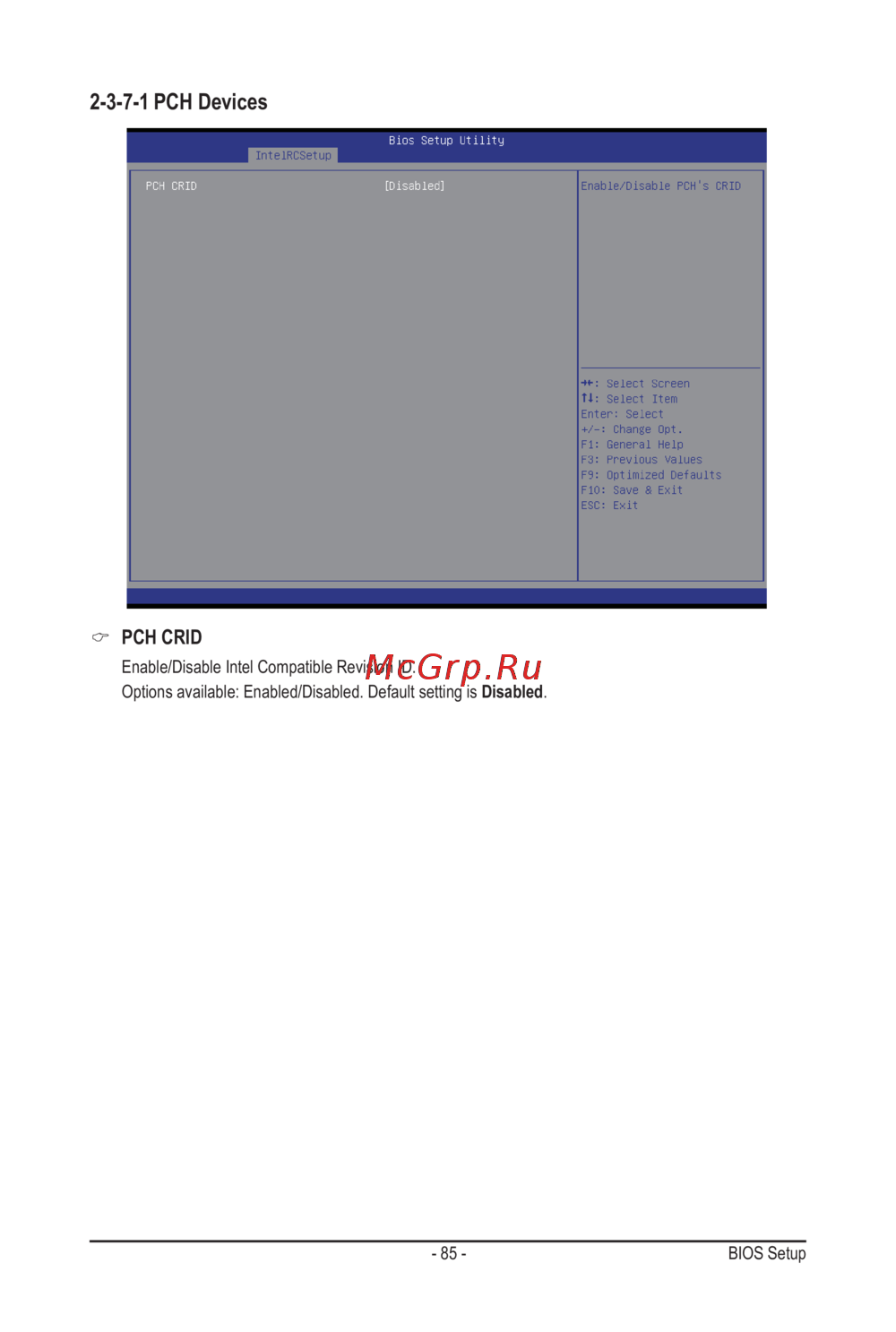

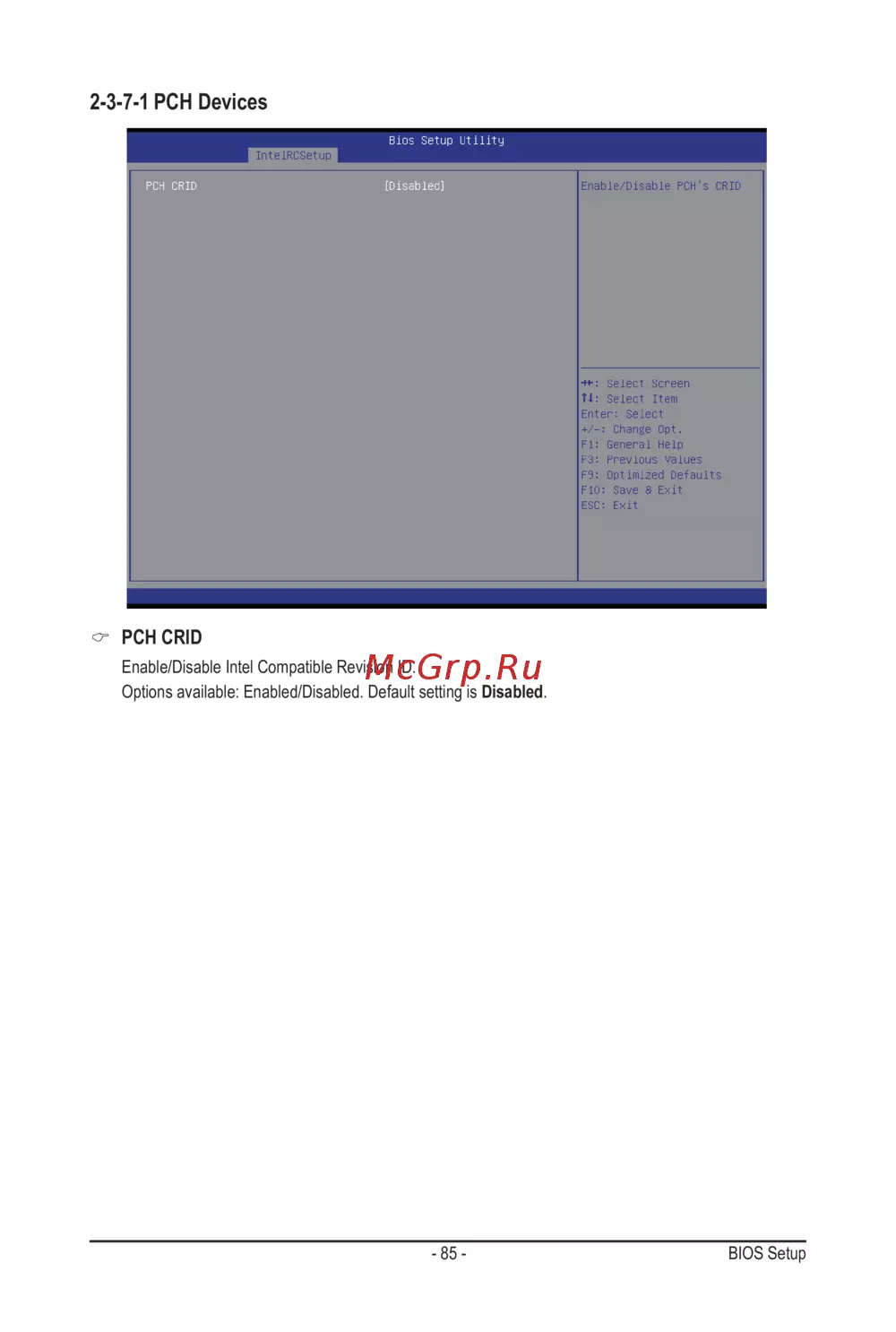

2-3-7-1 PCH Devices

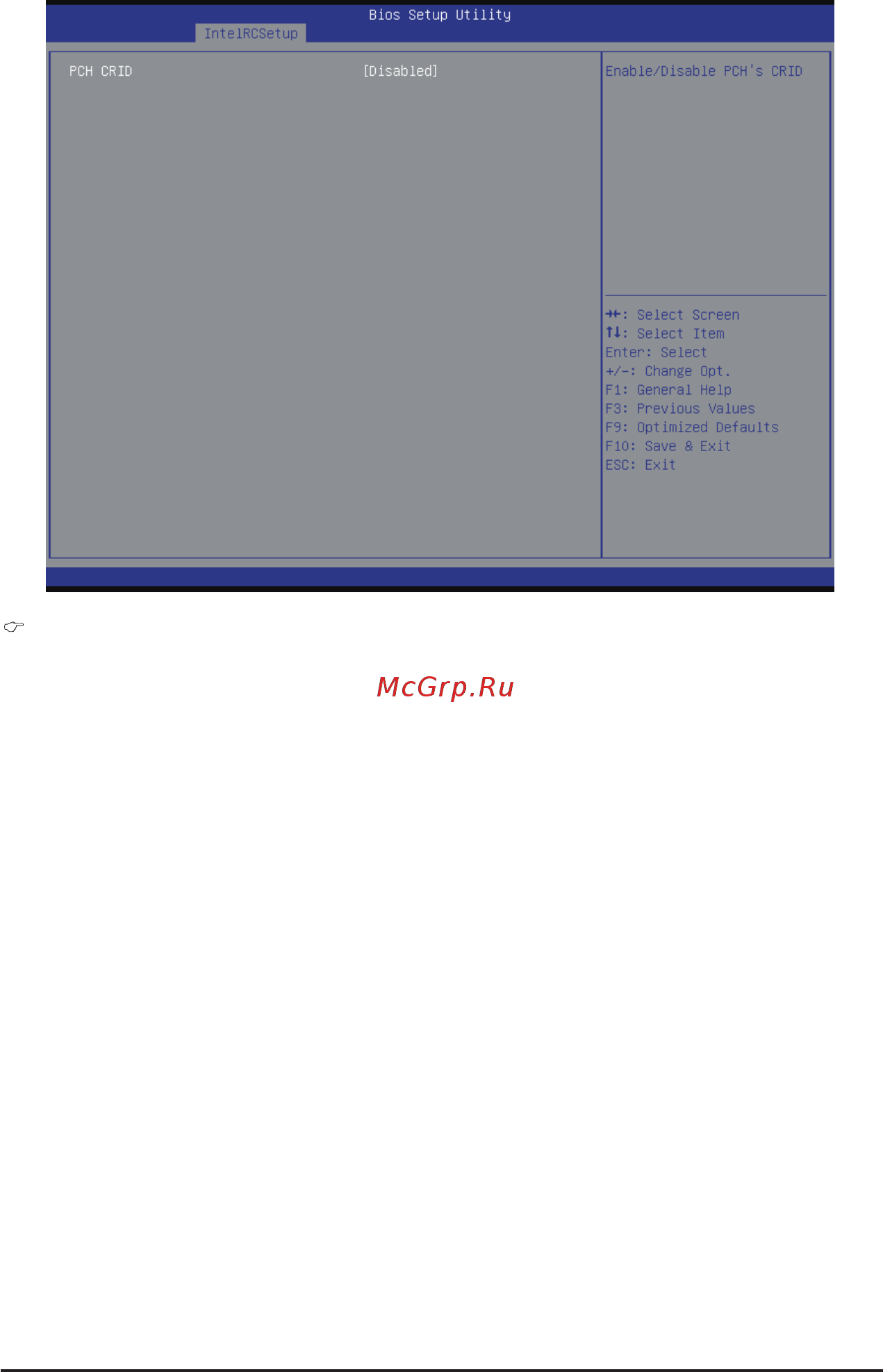

PCH CRID

Enable/Disable Intel Compatible Revision ID.

Options available: Enabled/Disabled. Default setting is Disabled.
