Gigabyte MH70-HD1 (rev. 1.0) [95/114] Wheasupport windowshardwareerrorarchitecture

- 95 - BIOS Setup

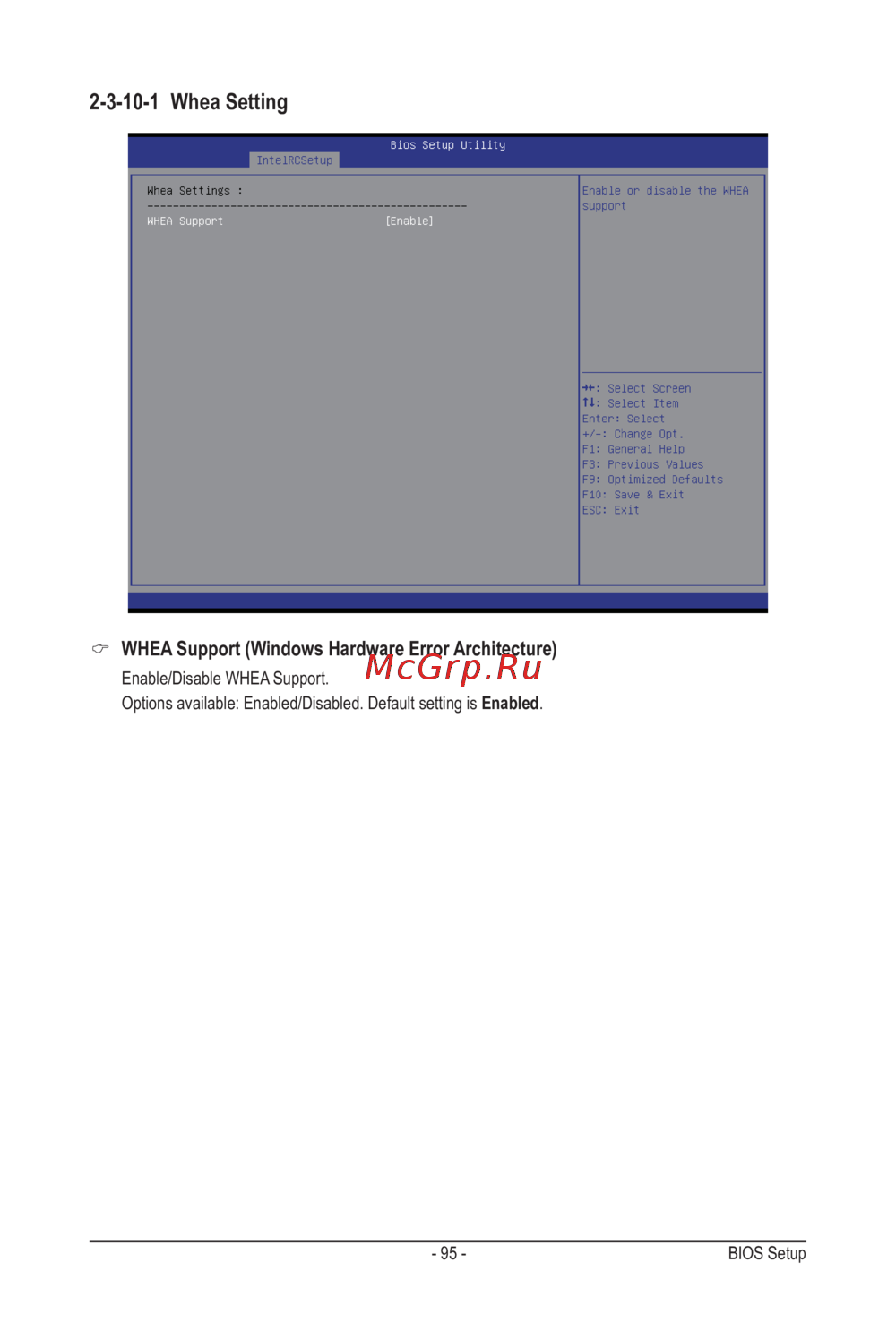

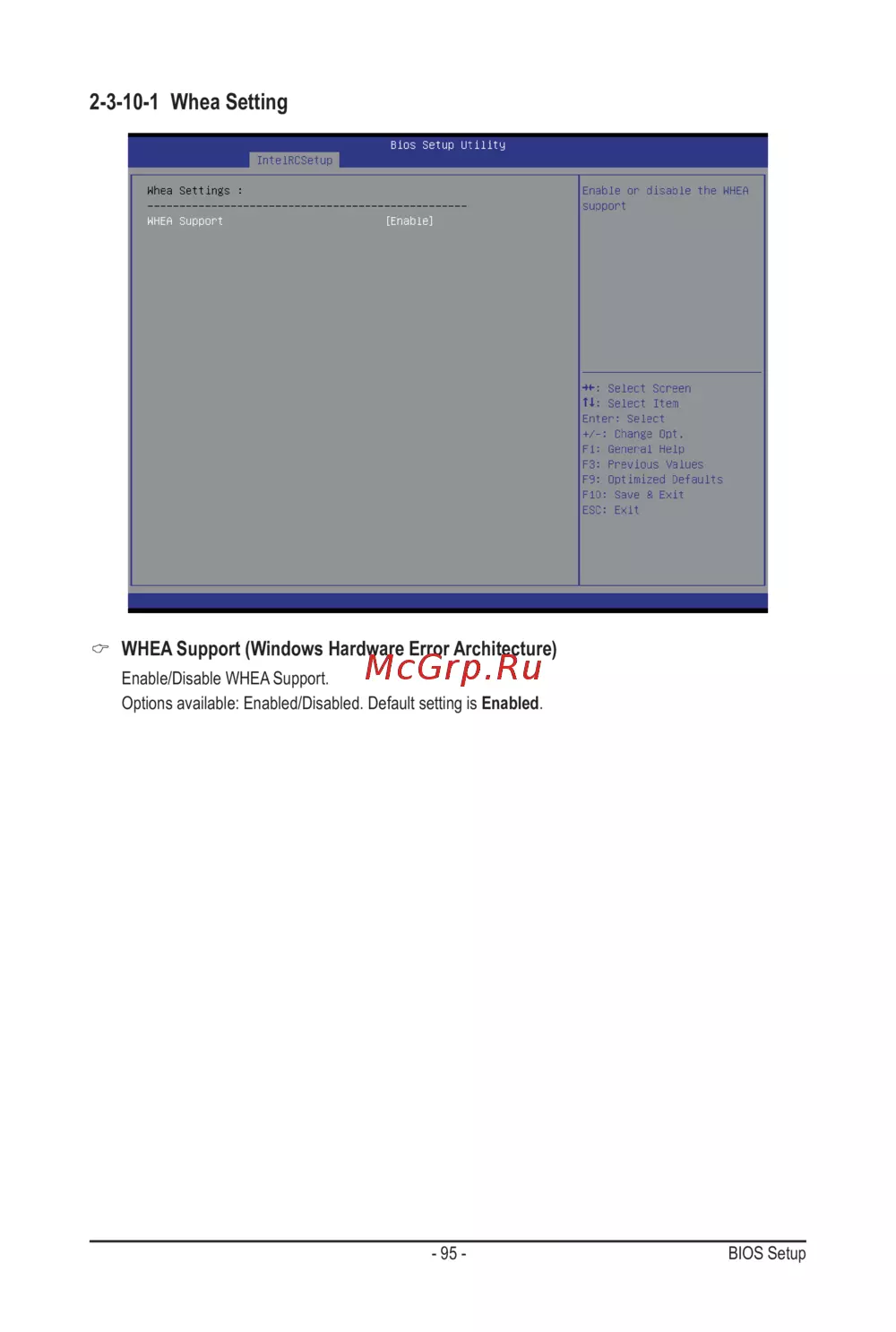

2-3-10-1 WheaSetting

 WHEASupport(WindowsHardwareErrorArchitecture)

Enable/Disable WHEA Support.

Options available: Enabled/Disabled. Default setting is Enabled.
