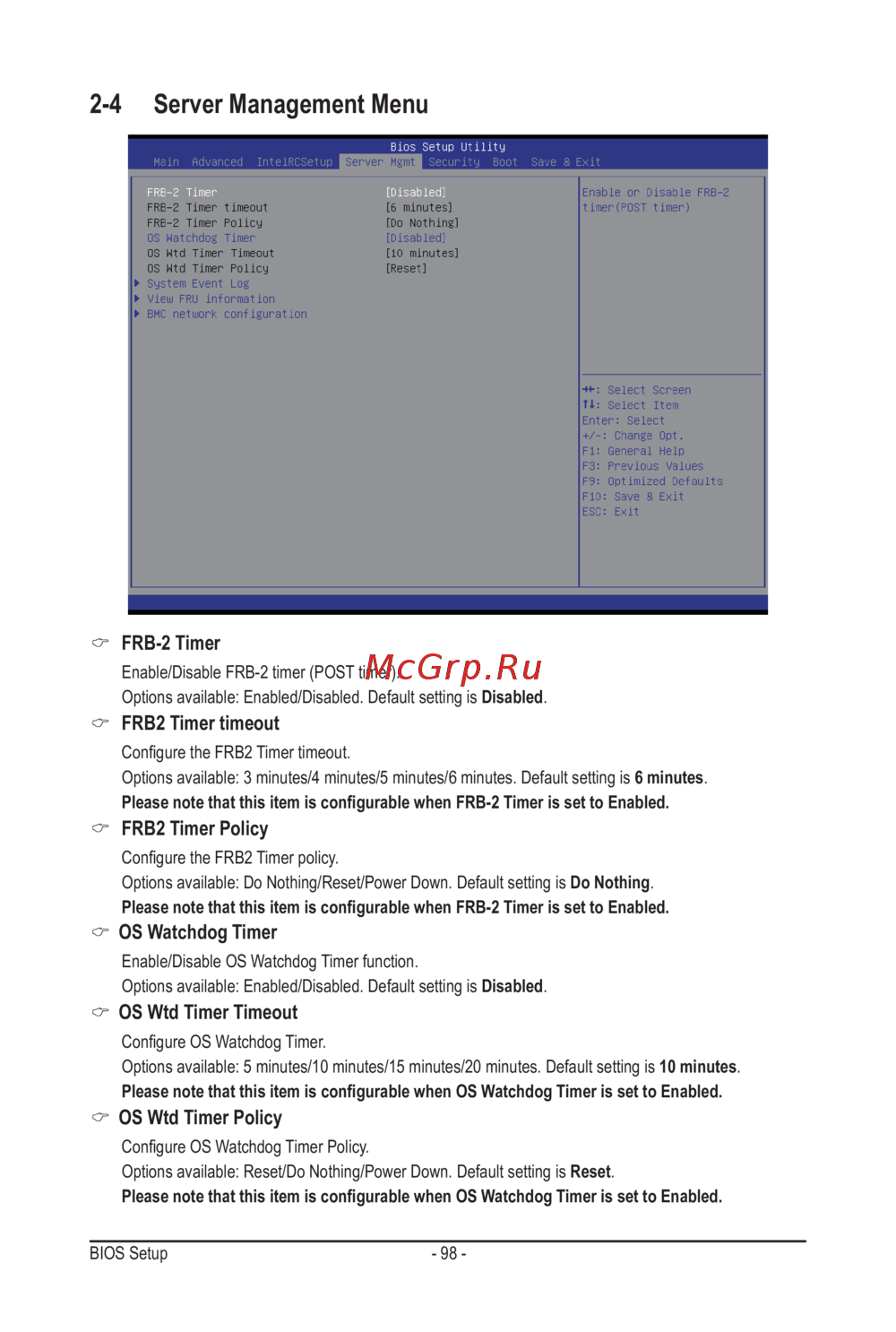

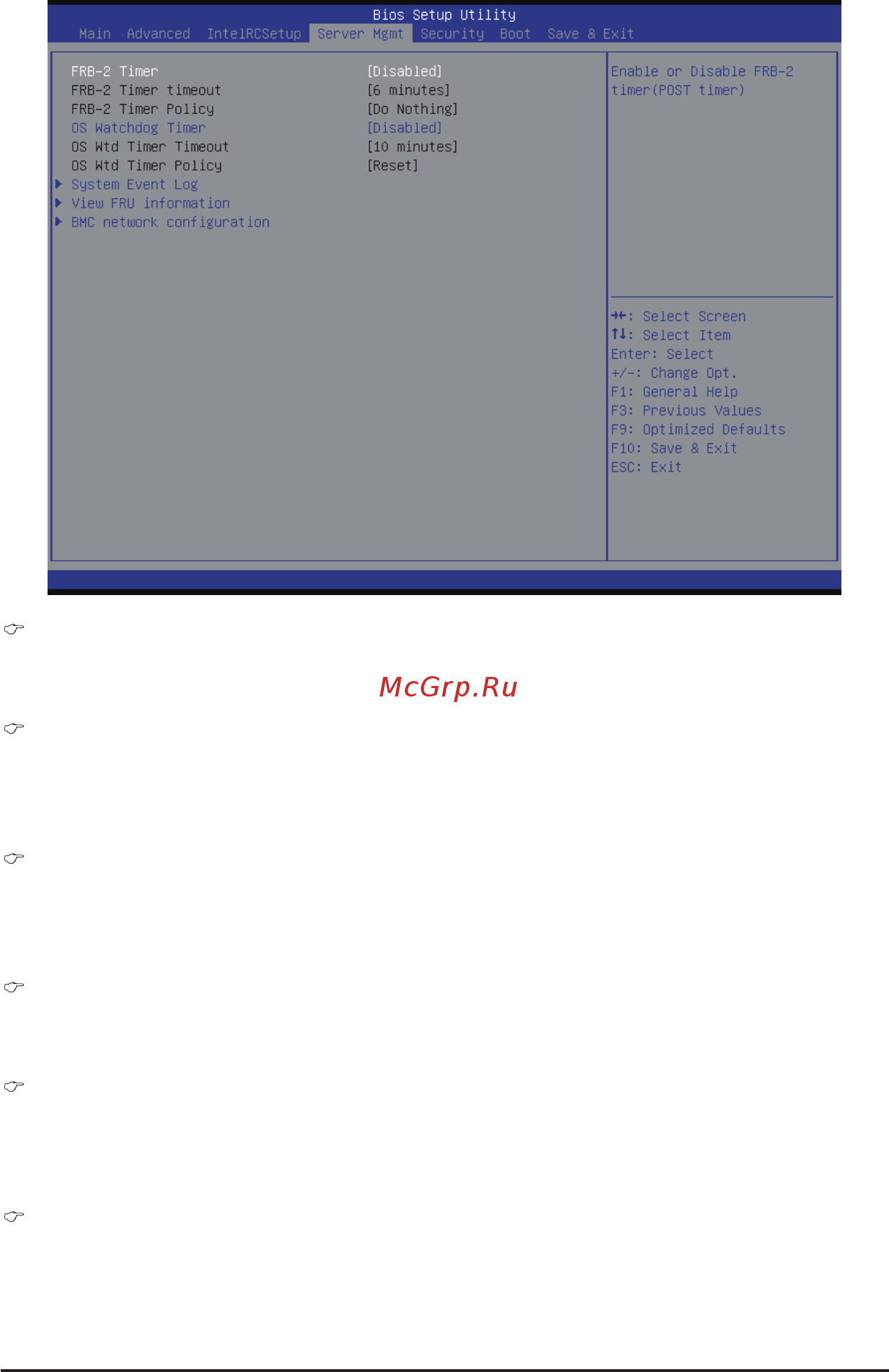

BIOS Setup - 98 -
2-4 Server Management Menu
FRB-2 Timer
Enable/Disable FRB-2 timer (POST timer).
Options available: Enabled/Disabled. Default setting is Disabled.
FRB2 Timer timeout
ConguretheFRB2Timertimeout.
Options available: 3 minutes/4 minutes/5 minutes/6 minutes. Default setting is 6 minutes.
PleasenotethatthisitemiscongurablewhenFRB-2TimerissettoEnabled.
FRB2 Timer Policy
ConguretheFRB2Timerpolicy.
Options available: Do Nothing/Reset/Power Down. Default setting is Do Nothing.
PleasenotethatthisitemiscongurablewhenFRB-2TimerissettoEnabled.
OSWatchdogTimer
Enable/Disable OS Watchdog Timer function.
Options available: Enabled/Disabled. Default setting is Disabled.
OSWtdTimerTimeout
CongureOSWatchdogTimer.
Options available: 5 minutes/10 minutes/15 minutes/20 minutes. Default setting is 10 minutes.
PleasenotethatthisitemiscongurablewhenOSWatchdogTimerissettoEnabled.
OSWtdTimerPolicy
CongureOSWatchdogTimerPolicy.
Options available: Reset/Do Nothing/Power Down. Default setting is Reset.
PleasenotethatthisitemiscongurablewhenOSWatchdogTimerissettoEnabled.
