- 105 - BIOS Setup

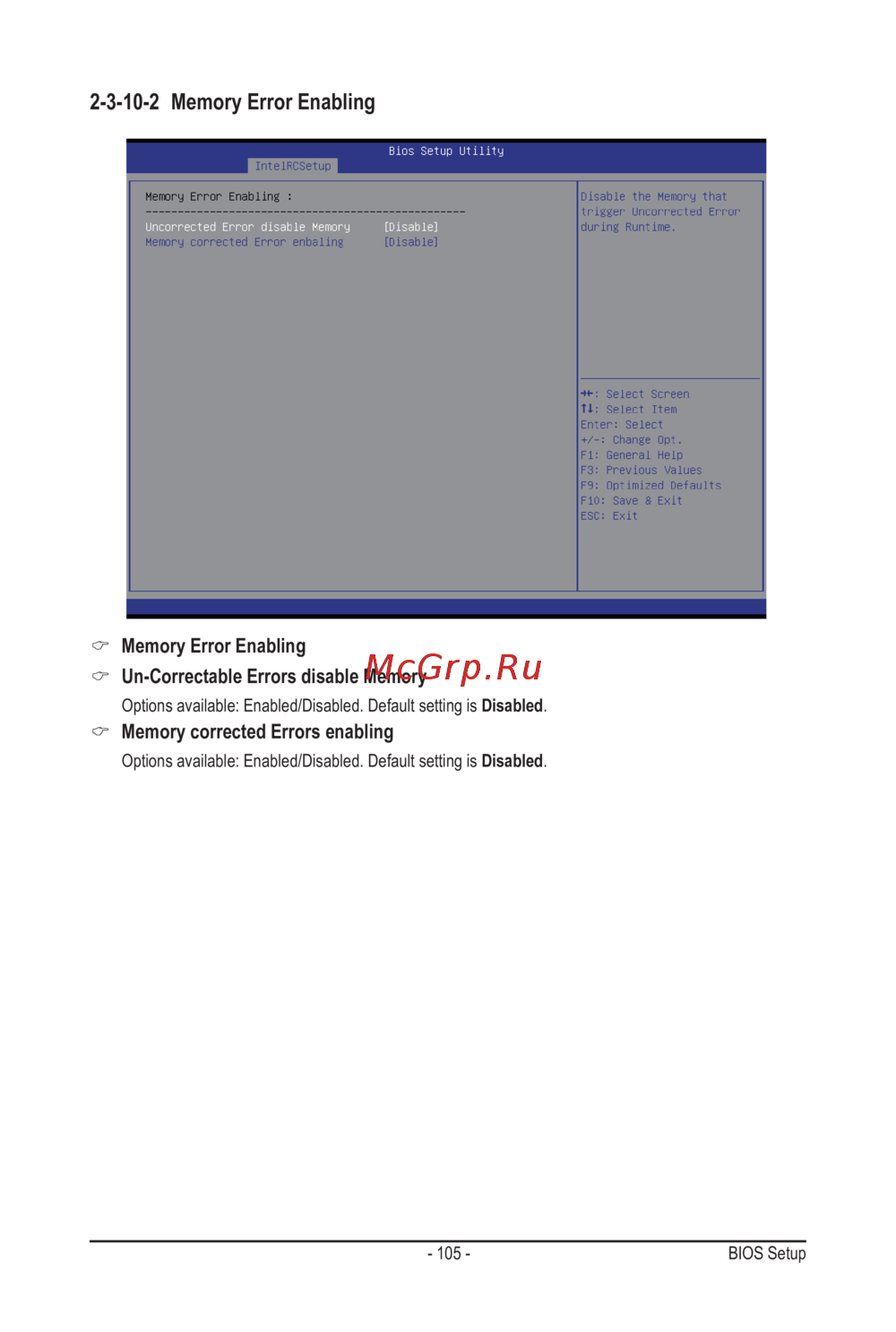

2-3-10-2 Memory Error Enabling

Memory Error Enabling

Un-Correctable Errors disable Memory

Options available: Enabled/Disabled. Default setting is Disabled.

Memory corrected Errors enabling

Options available: Enabled/Disabled. Default setting is Disabled.
