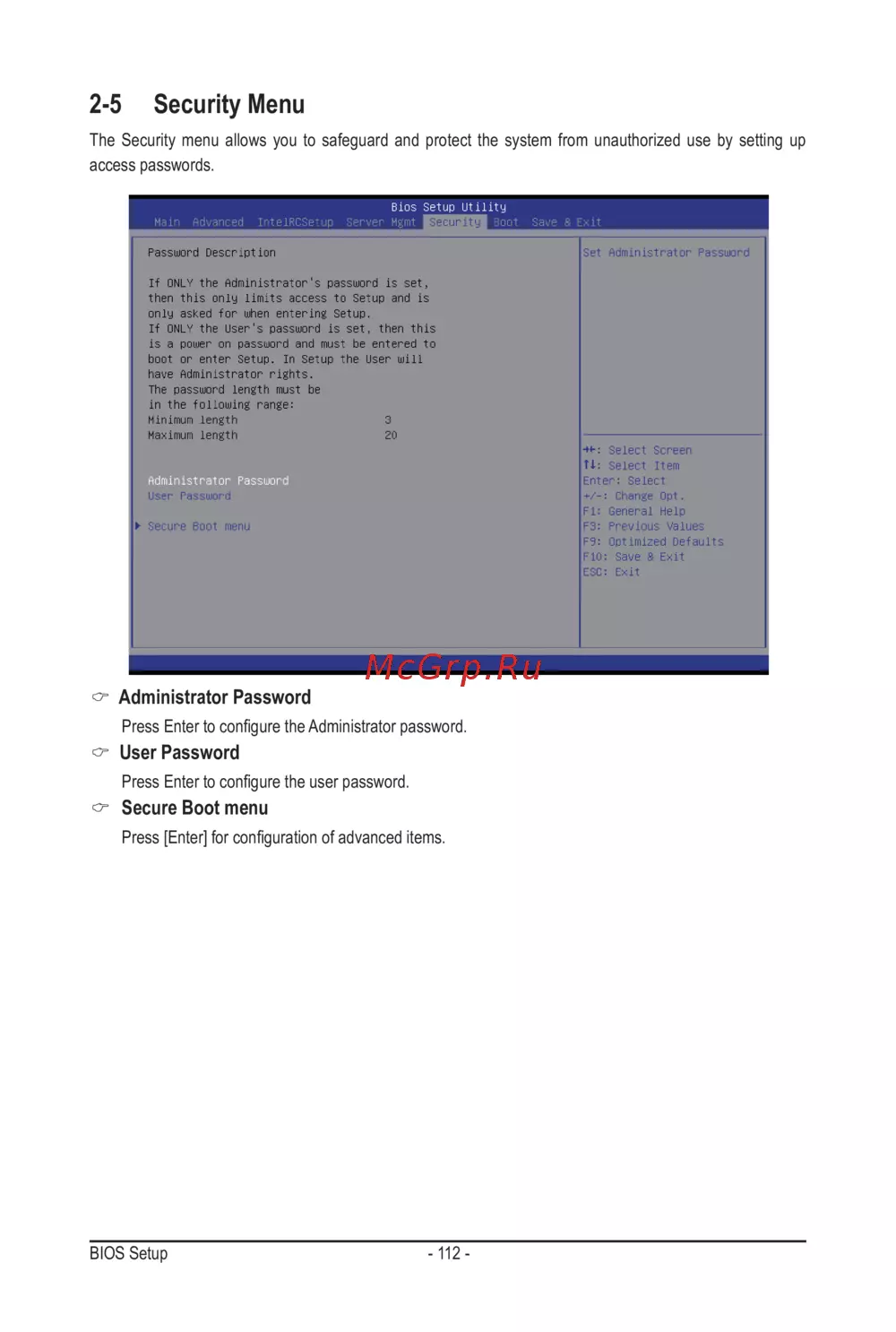

Gigabyte MD60-SC0 (rev. 1.1) [112/127] User password

BIOS Setup - 112 -

Administrator Password

 PressEntertoconguretheAdministratorpassword.

User Password

 PressEntertoconguretheuserpassword.

Secure Boot menu

 Press[Enter]forcongurationofadvanceditems.

2-5 Security Menu

The Security menu allows you to safeguard and protect the system from unauthorized use by setting up

access passwords.
