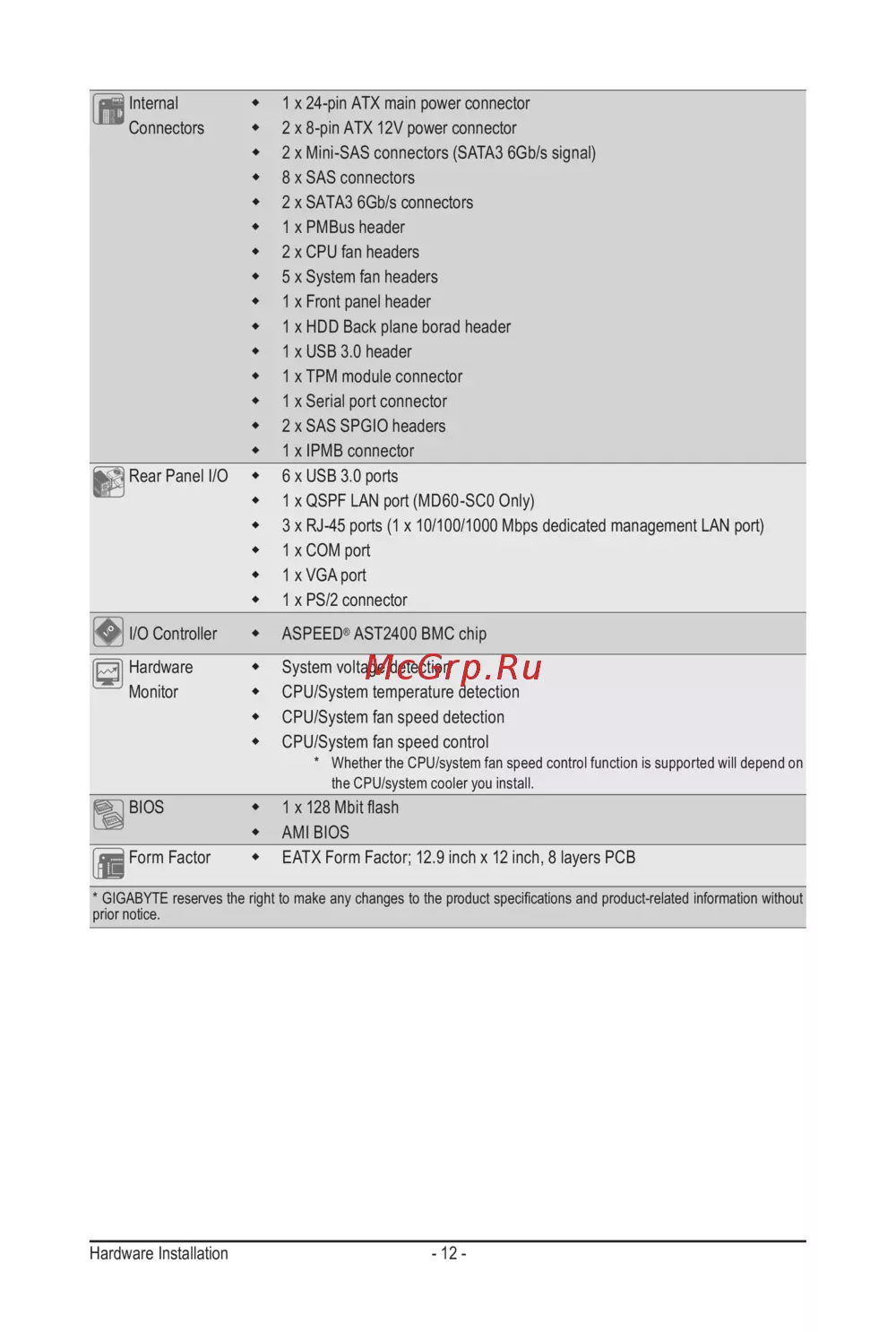

Hardware Installation - 12 -
Internal
Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connector
2 x Mini-SAS connectors (SATA3 6Gb/s signal)
8 x SAS connectors
2 x SATA3 6Gb/s connectors
1 x PMBus header
2 x CPU fan headers
5 x System fan headers
1 x Front panel header
1 x HDD Back plane borad header
1 x USB 3.0 header
1 x TPM module connector
1 x Serial port connector
2 x SAS SPGIO headers
1 x IPMB connector
Rear Panel I/O 6 x USB 3.0 ports
1 x QSPF LAN port (MD60-SC0 Only)
3 x RJ-45 ports (1 x 10/100/1000 Mbps dedicated management LAN port)
1 x COM port
1 x VGA port
1 x PS/2 connector
I/O Controller ASPEED
®
AST2400 BMC chip
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on
the CPU/system cooler you install.
BIOS 1x128Mbitash
AMI BIOS
Form Factor EATX Form Factor; 12.9 inch x 12 inch, 8 layers PCB
*GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
