Hardware Installation - 26 -

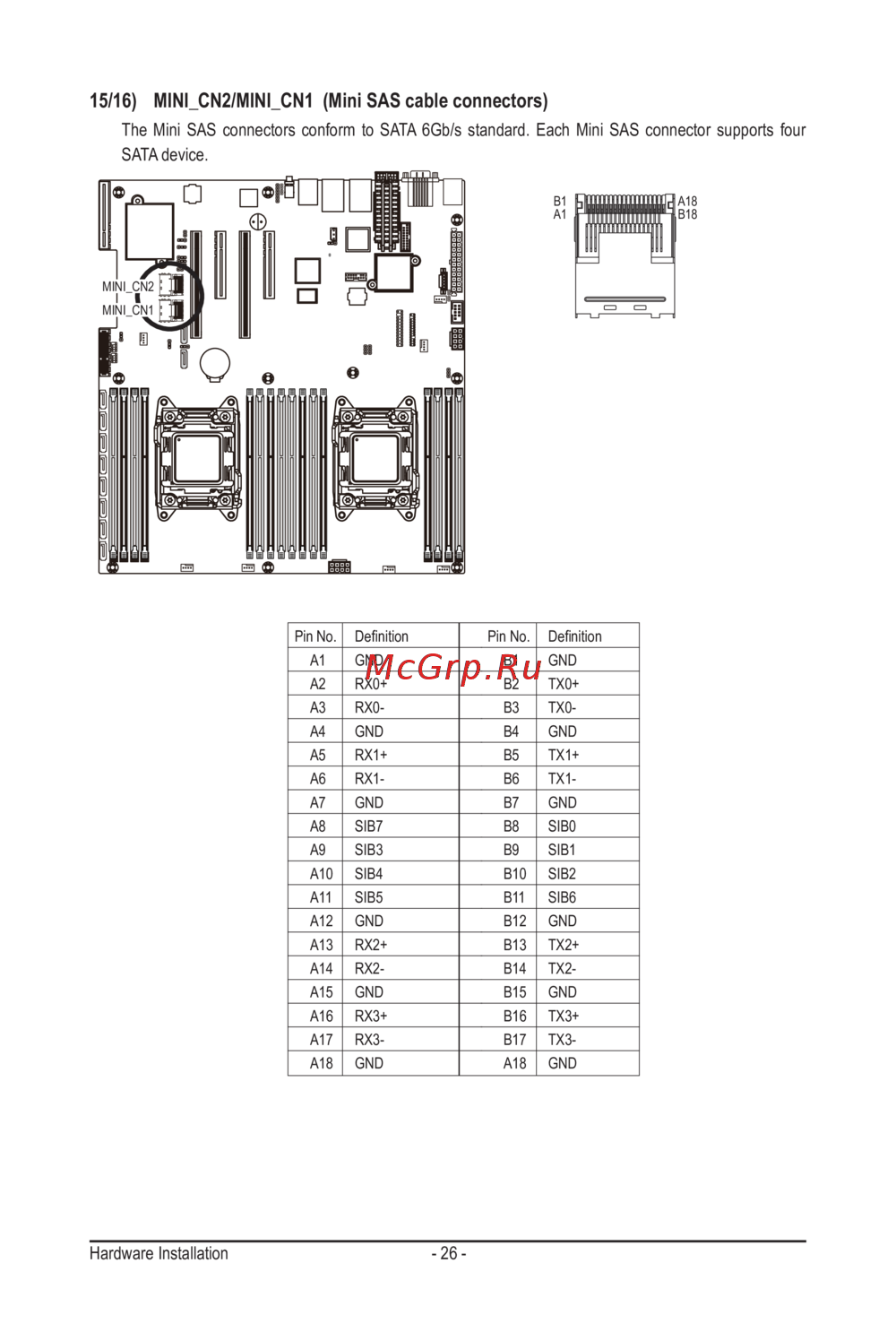

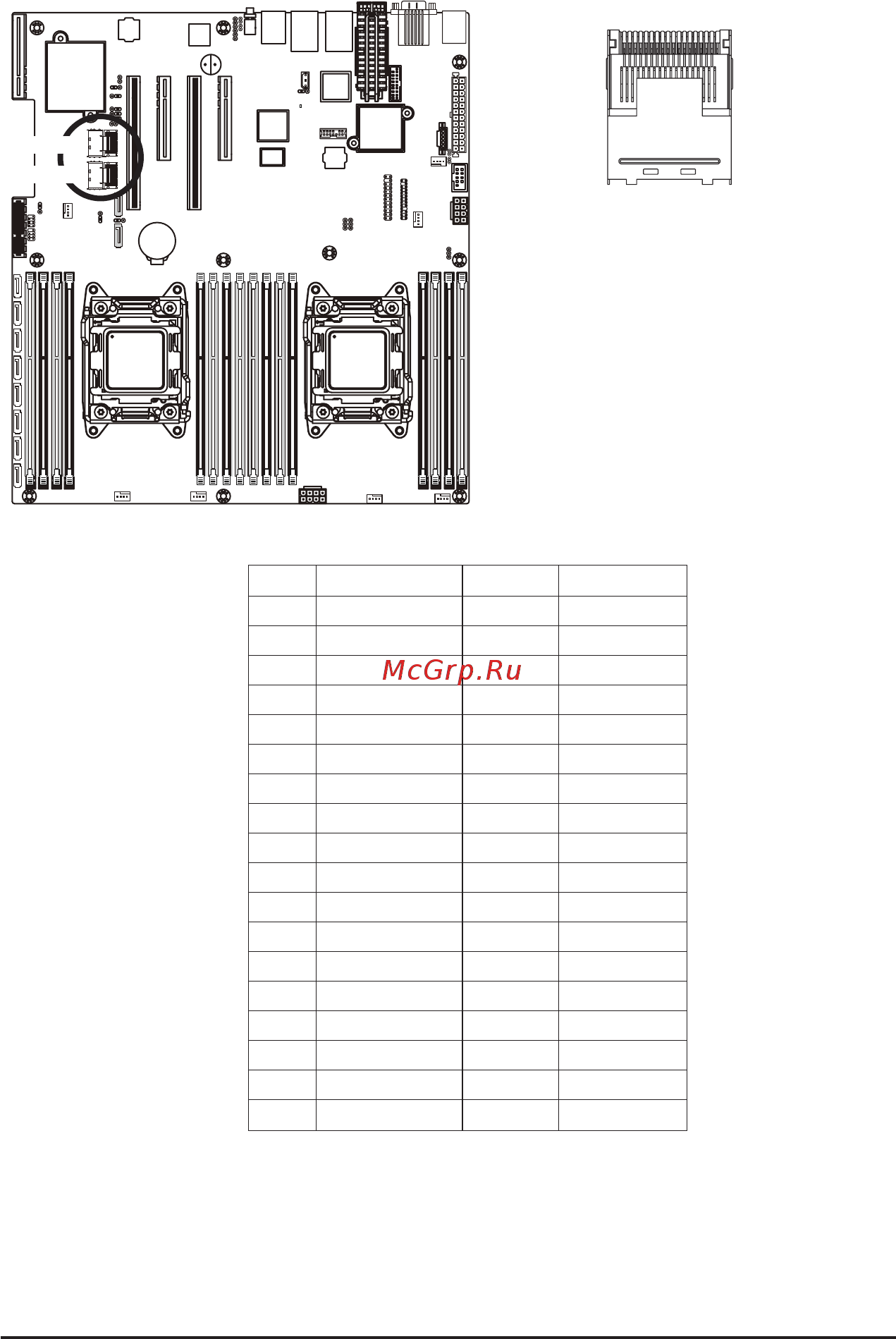

15/16) MINI_CN2/MINI_CN1 (Mini SAS cable connectors)
The Mini SAS connectors conform to SATA 6Gb/s standard. Each Mini SAS connector supports four
SATA device.
MINI_CN1
MINI_CN2
B1
A1
A18
B18
PinNo. Denition
A1 GND
A2 RX0+
A3 RX0-
A4 GND
A5 RX1+
A6 RX1-
A7 GND
A8 SIB7
A9 SIB3
A10 SIB4
A11 SIB5
A12 GND
A13 RX2+
A14 RX2-
A15 GND
A16 RX3+
A17 RX3-
A18 GND
PinNo. Denition
B1 GND
B2 TX0+
B3 TX0-
B4 GND
B5 TX1+
B6 TX1-
B7 GND
B8 SIB0
B9 SIB1
B10 SIB2
B11 SIB6
B12 GND
B13 TX2+
B14 TX2-
B15 GND
B16 TX3+
B17 TX3-
A18 GND
