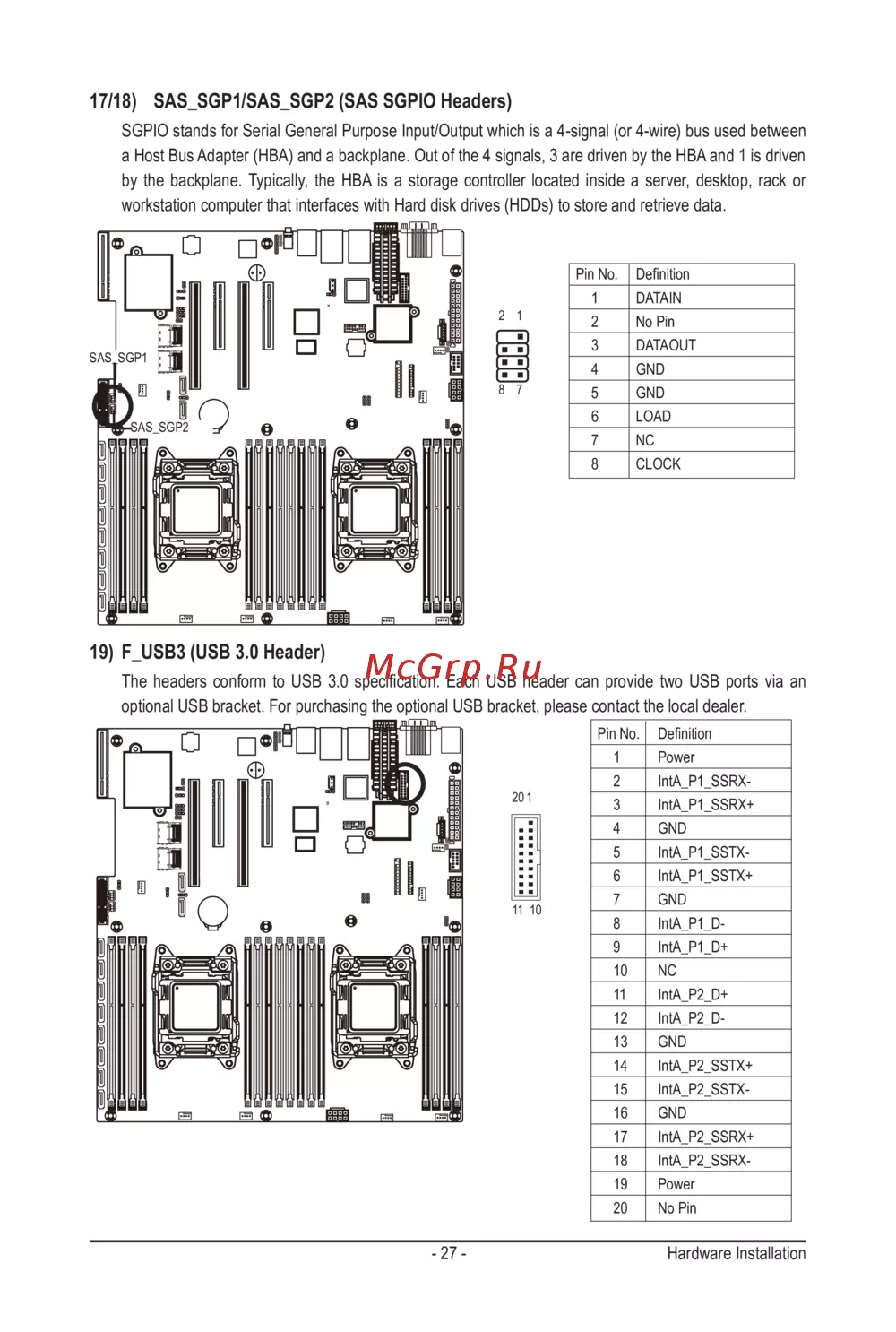

- 27 - Hardware Installation
17/18) SAS_SGP1/SAS_SGP2 (SAS SGPIO Headers)
SGPIO stands for Serial General Purpose Input/Output which is a 4-signal (or 4-wire) bus used between
a Host Bus Adapter (HBA) and a backplane. Out of the 4 signals, 3 are driven by the HBA and 1 is driven
by the backplane. Typically, the HBA is a storage controller located inside a server, desktop, rack or
workstation computer that interfaces with Hard disk drives (HDDs) to store and retrieve data.
7
1
8
2
PinNo. Denition
1 DATAIN
2 No Pin
3 DATAOUT
4 GND
5 GND
6 LOAD
7 NC
8 CLOCK
SAS_SGP2
SAS_SGP1
19) F_USB3 (USB 3.0 Header)
The headersconformtoUSB3.0 specication. EachUSB header canprovide two USBports via an
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
PinNo. Denition
1 Power
2 IntA_P1_SSRX-
3 IntA_P1_SSRX+
4 GND
5 IntA_P1_SSTX-
6 IntA_P1_SSTX+
7 GND
8 IntA_P1_D-
9 IntA_P1_D+
10 NC
11 IntA_P2_D+
12 IntA_P2_D-
13 GND
14 IntA_P2_SSTX+
15 IntA_P2_SSTX-
16 GND
17 IntA_P2_SSRX+
18 IntA_P2_SSRX-
19 Power
20 No Pin
1
20
1011
