Gigabyte MD60-SC0 (rev. 1.1) [30/127] Tpm tpm module connector

Hardware Installation - 30 -

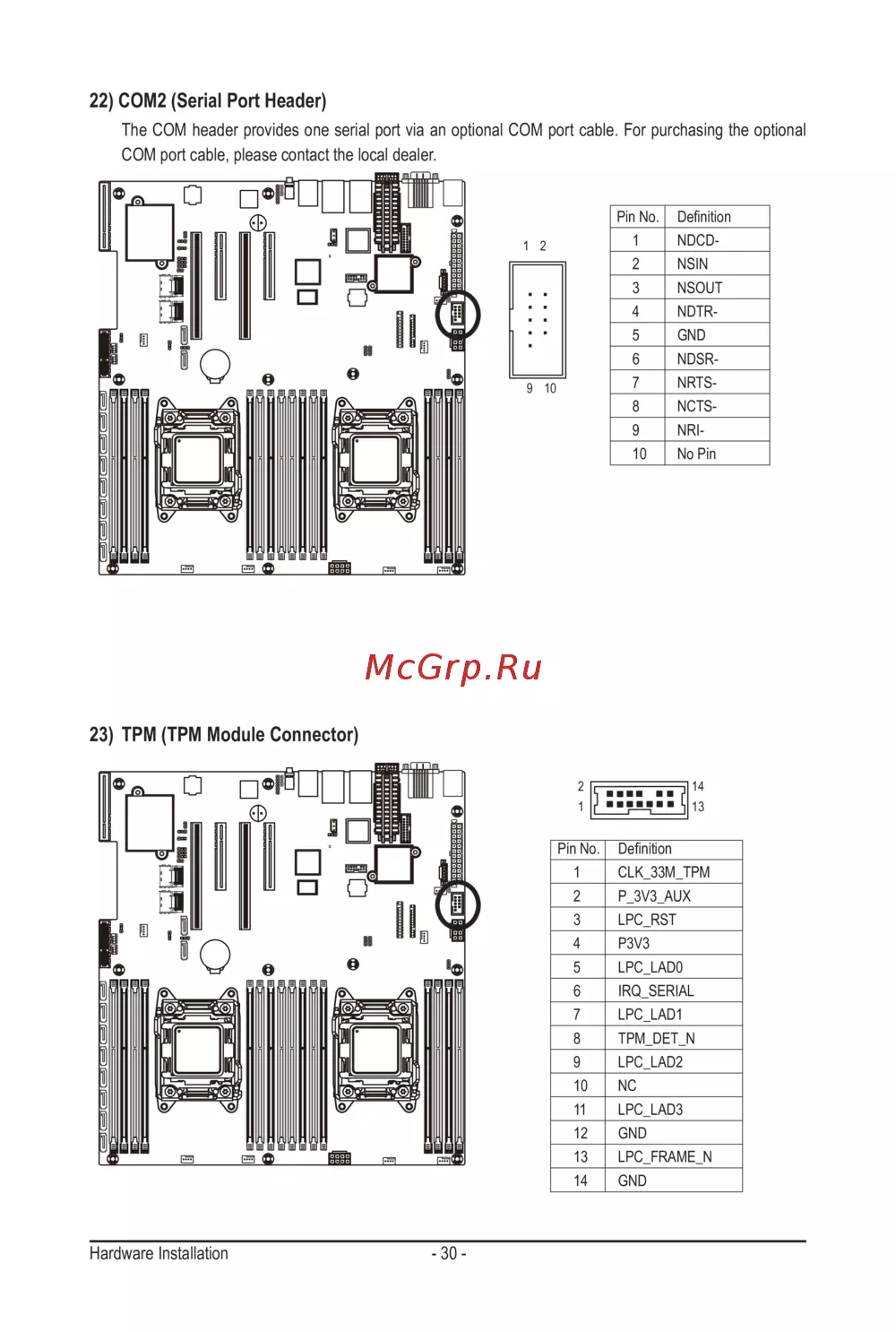

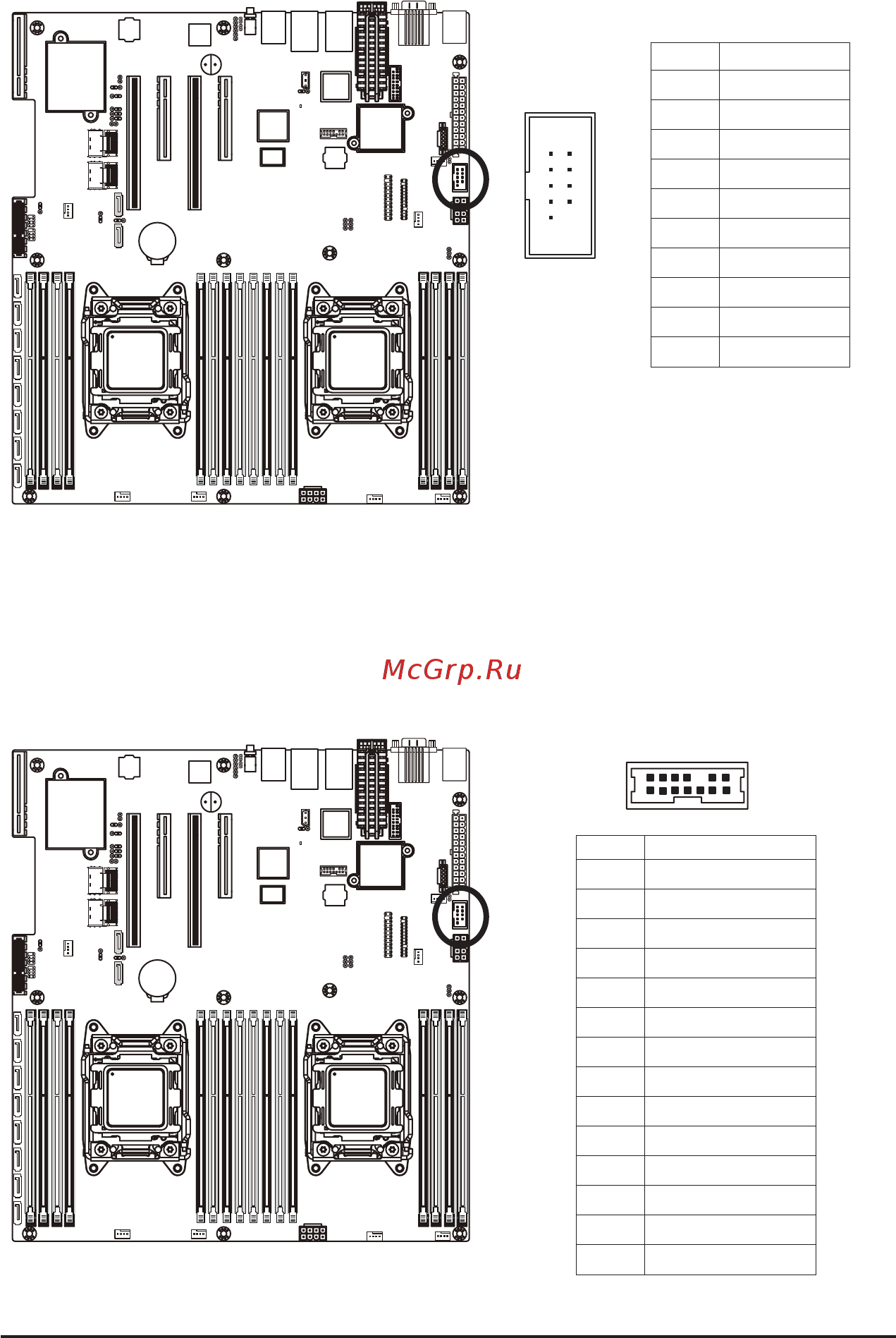

22) COM2 (Serial Port Header)

The COM header provides one serial port via an optional COM port cable. For purchasing the optional

COM port cable, please contact the local dealer.

1 2

9 10

PinNo. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

PinNo. Denition

1 CLK_33M_TPM

2 P_3V3_AUX

3 LPC_RST

4 P3V3

5 LPC_LAD0

6 IRQ_SERIAL

7 LPC_LAD1

8 TPM_DET_N

9 LPC_LAD2

10 NC

11 LPC_LAD3

12 GND

13 LPC_FRAME_N

14 GND

23) TPM (TPM Module Connector)
