- 31 - Hardware Installation

PinNo. Denition

1 LED+

2 LED-

PinNo. Denition

1 Link 1G

2 Link 100 Mbps

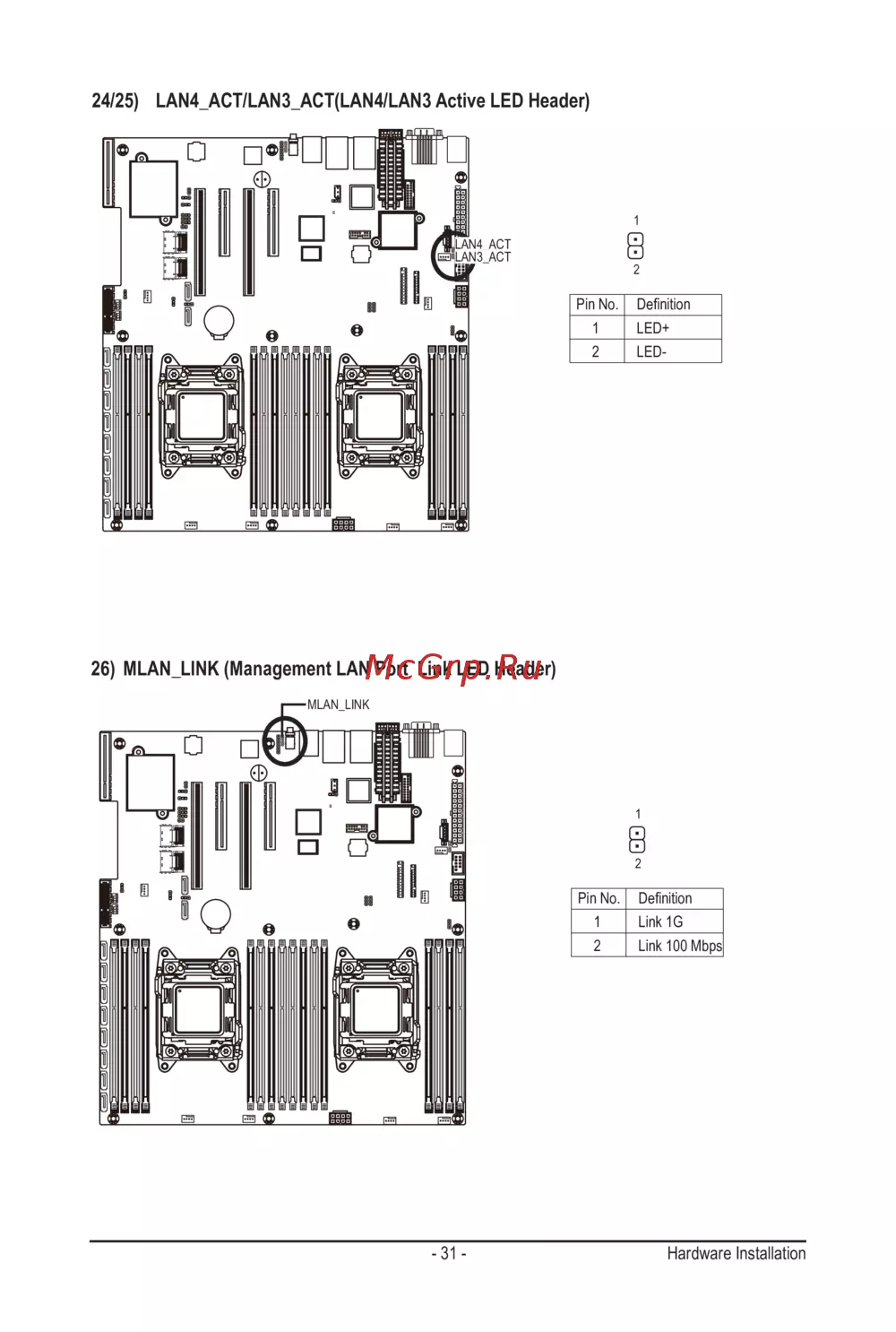

24/25) LAN4_ACT/LAN3_ACT(LAN4/LAN3 Active LED Header)

26) MLAN_LINK (Management LAN Port Link LED Header)

LAN4_ACT

LAN3_ACT

MLAN_LINK
