Hardware Installation - 34 -

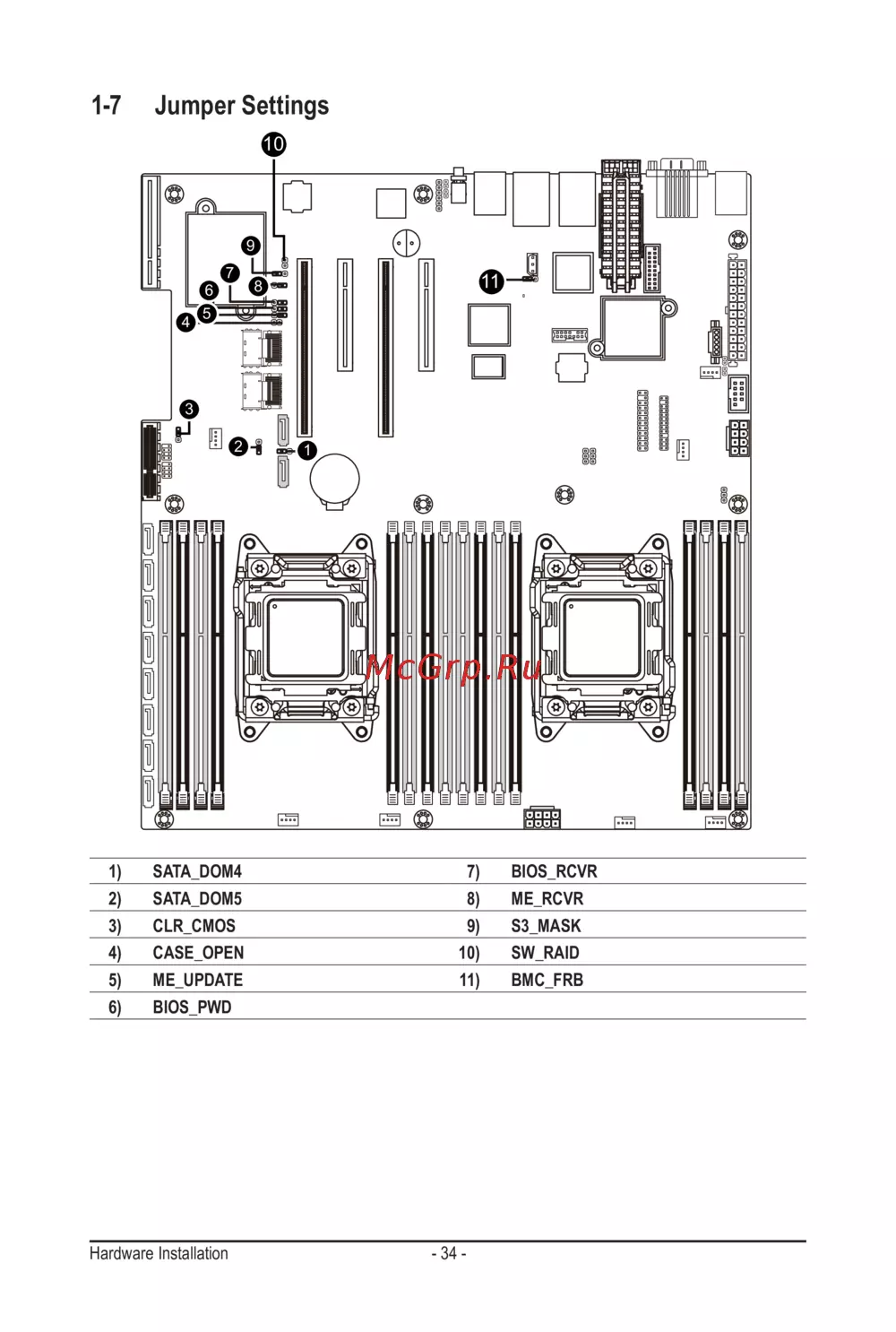

1-7 Jumper Settings

1) SATA_DOM4

2) SATA_DOM5

3) CLR_CMOS

4) CASE_OPEN

5) ME_UPDATE

6) BIOS_PWD

7) BIOS_RCVR

8) ME_RCVR

9) S3_MASK

10) SW_RAID

11) BMC_FRB
