MD60-SC0 (rev. 1.1)
Инструкция Страница: 36

Gigabyte MD60-SC0 (rev. 1.1) [36/127] Me_update me update jumper

Hardware Installation - 36 -

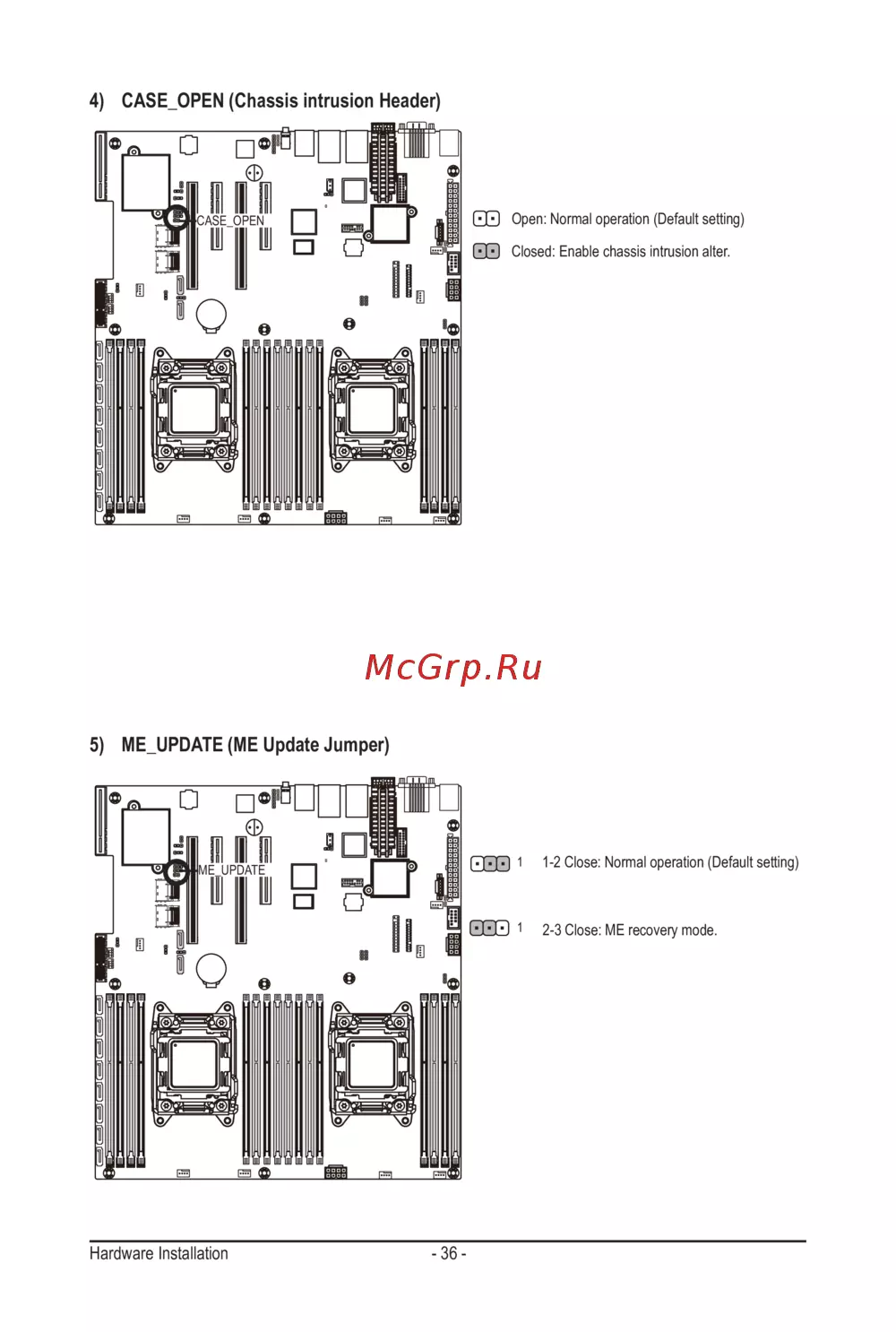

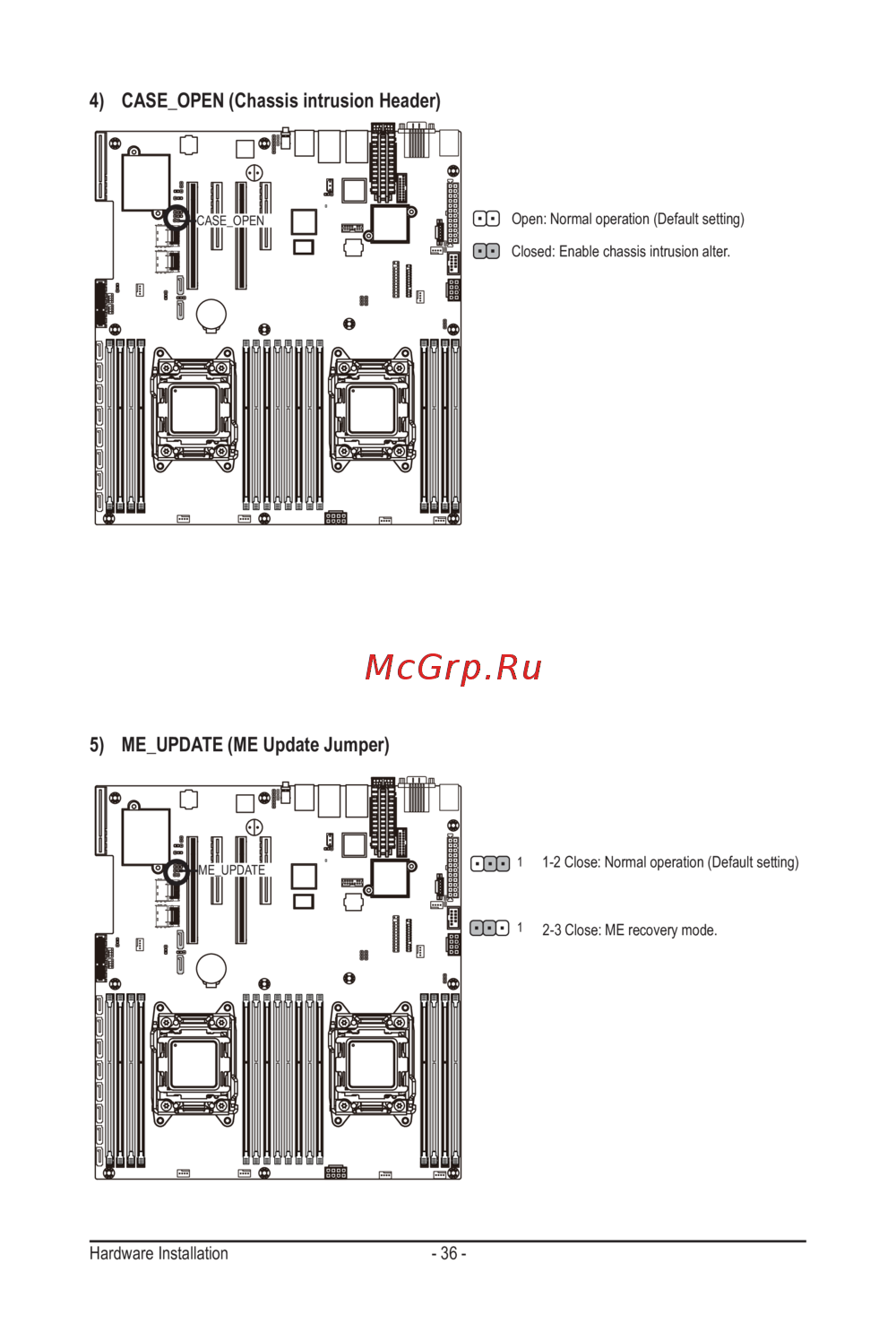

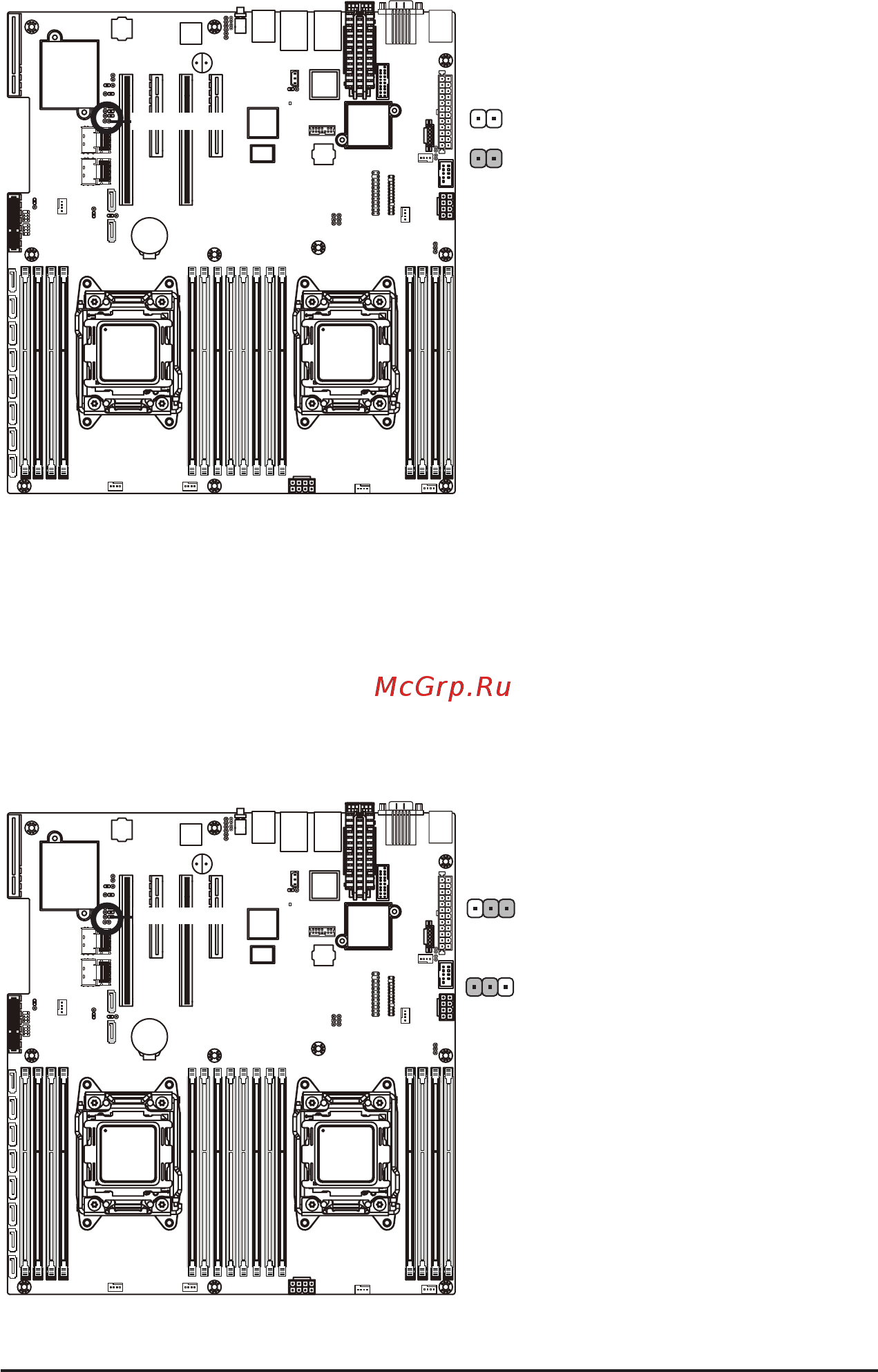

4) CASE_OPEN (Chassis intrusion Header)

Open: Normal operation (Default setting)

Closed: Enable chassis intrusion alter.

5) ME_UPDATE (ME Update Jumper)

1-2 Close: Normal operation (Default setting)

2-3 Close: ME recovery mode.

CASE_OPEN

ME_UPDATE
