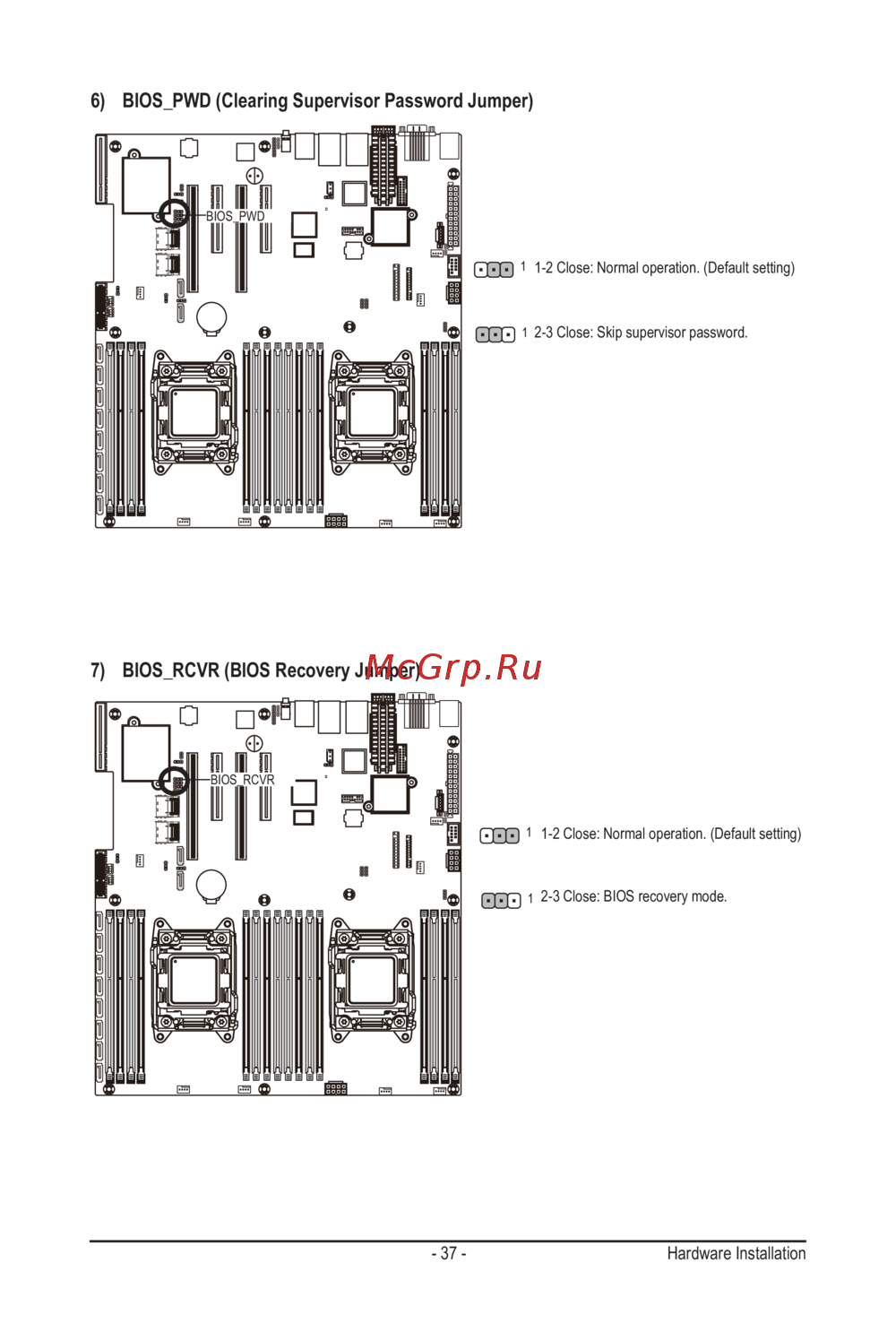

Gigabyte MD60-SC0 (rev. 1.1) [37/127] Bios_rcvr bios recovery jumper

- 37 - Hardware Installation

2-3 Close: BIOS recovery mode.

1-2 Close: Normal operation. (Default setting)

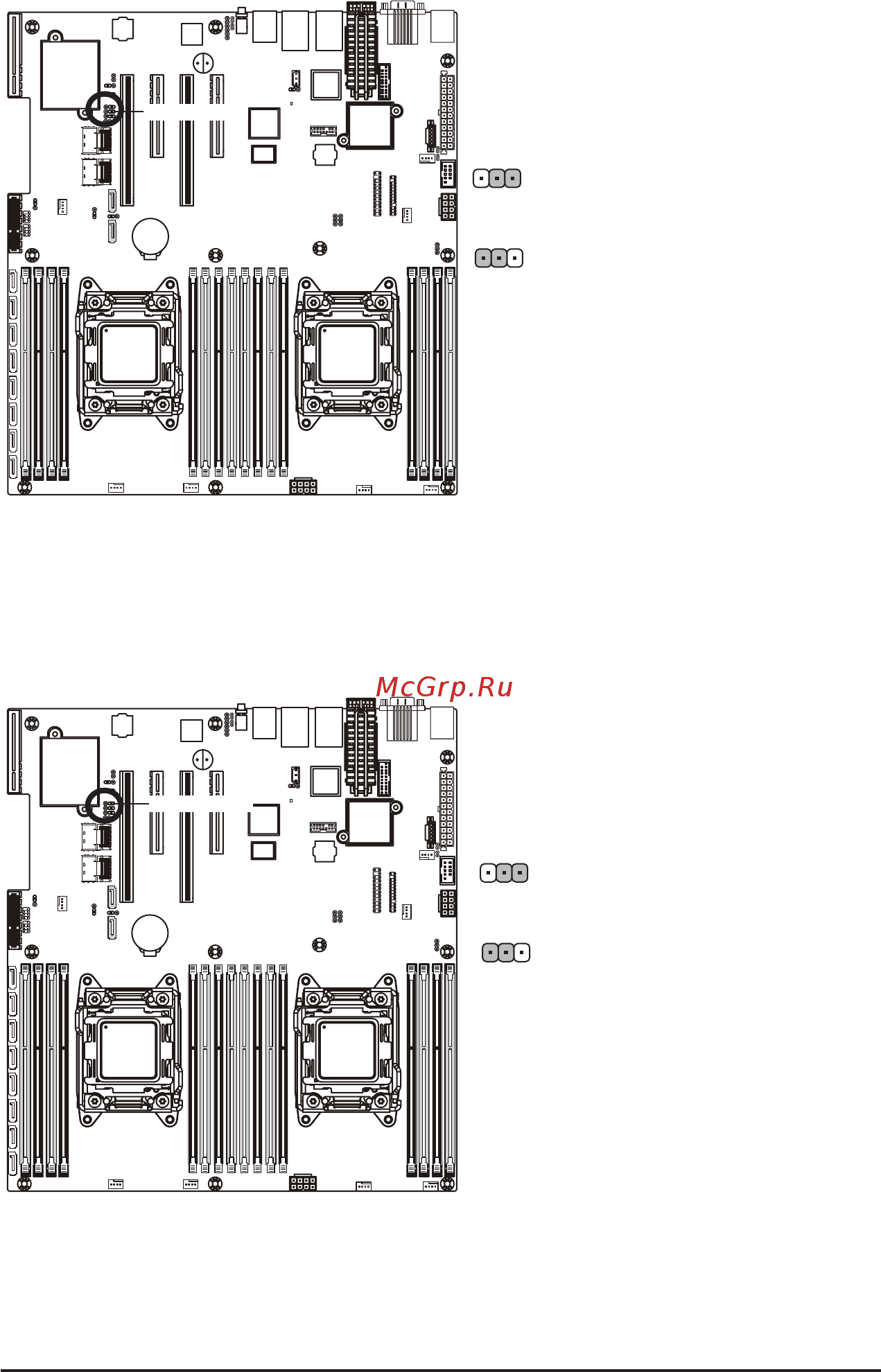

7) BIOS_RCVR (BIOS Recovery Jumper)

6) BIOS_PWD (Clearing Supervisor Password Jumper)

2-3 Close: Skip supervisor password.

1-2 Close: Normal operation. (Default setting)

BIOS_PWD

BIOS_RCVR
