Gigabyte MD60-SC0 (rev. 1.1) [44/127] System time

Gigabyte MD60-SC1 (rev. 1.1) [44/127] System time

BIOS Setup - 44 -

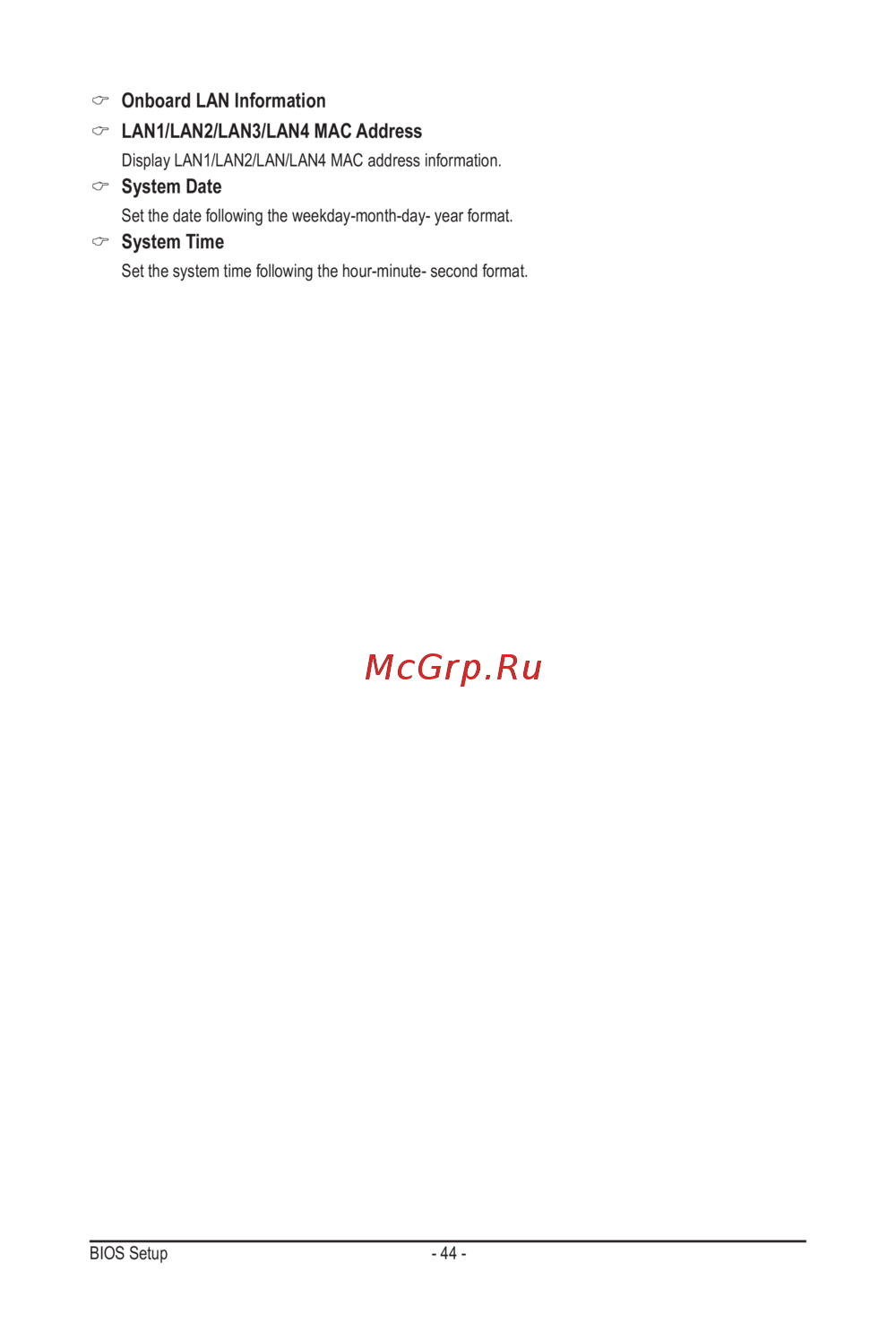

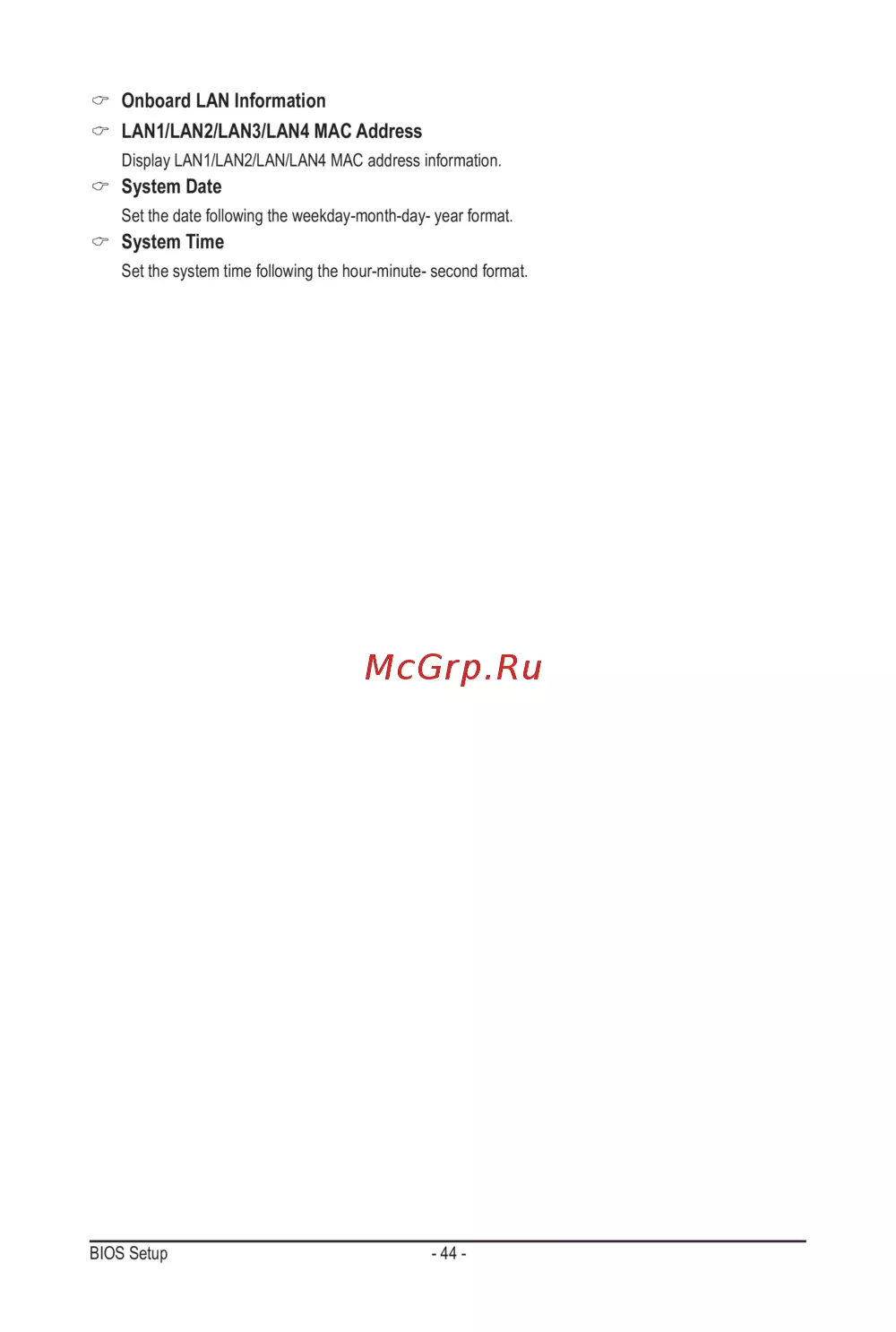

Onboard LAN Information

LAN1/LAN2/LAN3/LAN4 MAC Address

Display LAN1/LAN2/LAN/LAN4 MAC address information.

System Date

Set the date following the weekday-month-day- year format.

System Time

Set the system time following the hour-minute- second format.
