Gigabyte MD60-SC0 (rev. 1.1) [65/127] Iscsi initiator name add an attempts

- 65 - BIOS Setup

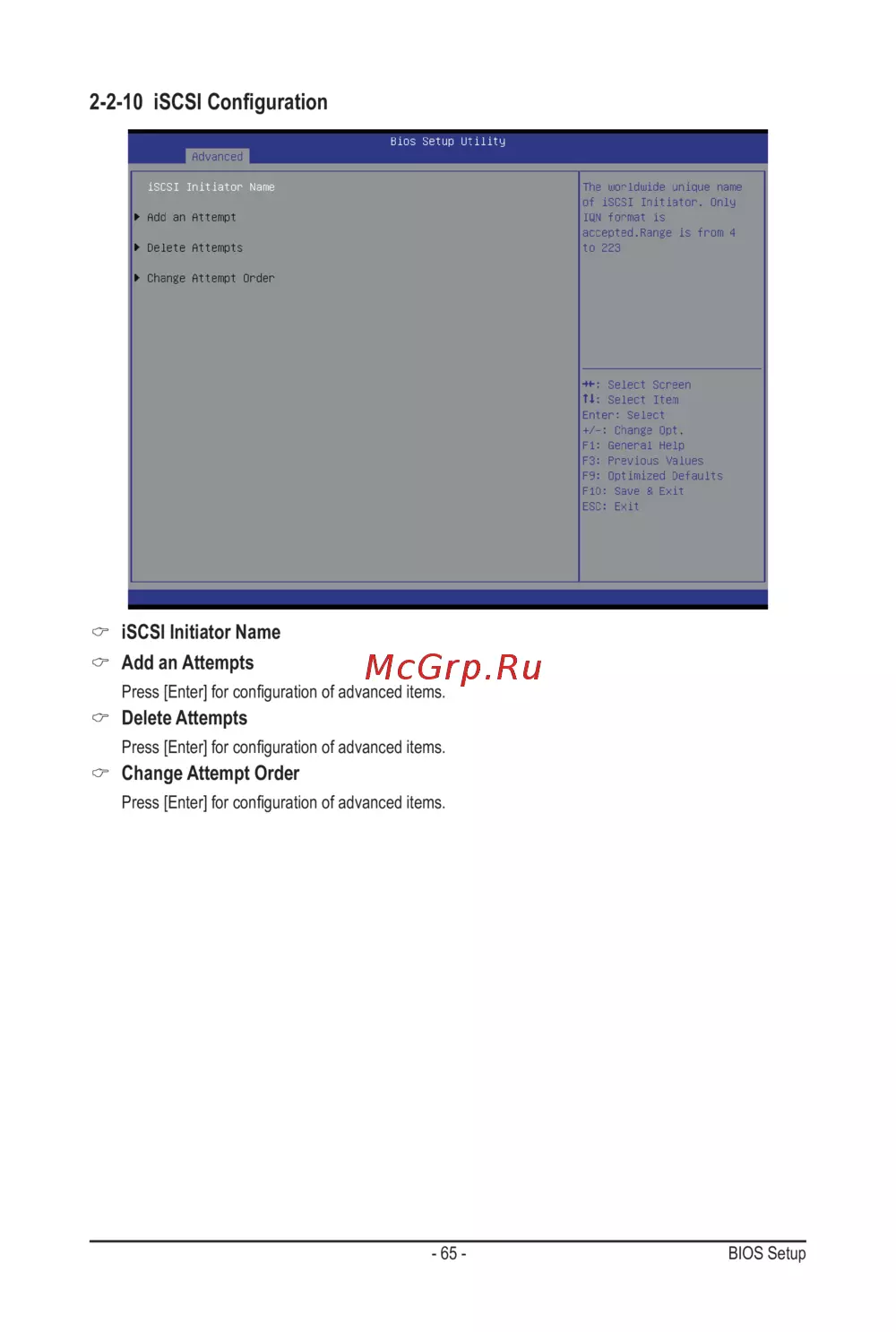

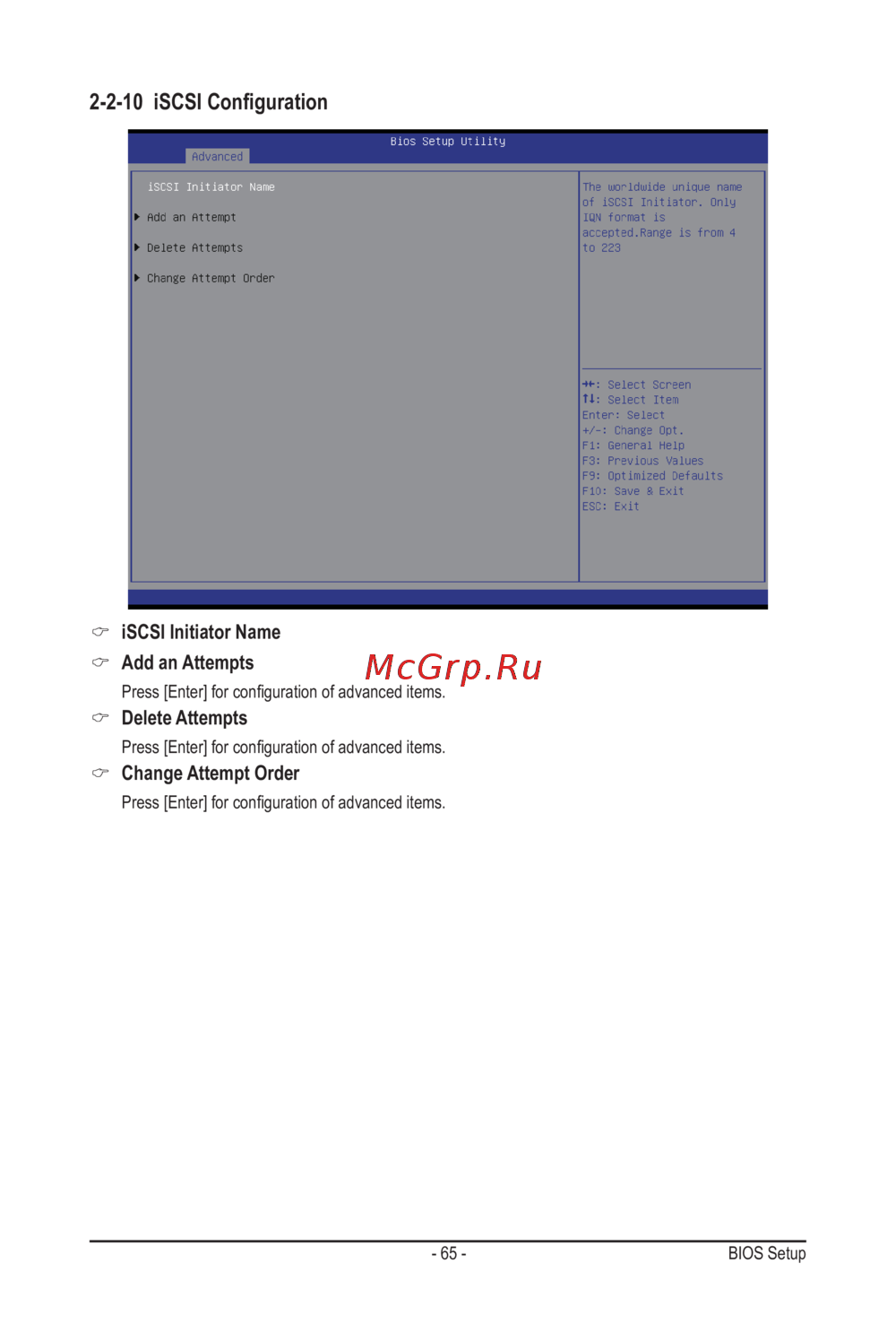

2-2-10 iSCSIConguration

iSCSI Initiator Name

Add an Attempts

 Press[Enter]forcongurationofadvanceditems.

Delete Attempts

 Press[Enter]forcongurationofadvanceditems.

Change Attempt Order

 Press[Enter]forcongurationofadvanceditems.
