Инструкция Страница: 66

Gigabyte MD60-SC0 (rev. 1.1) [66/127] Rc revision

BIOS Setup - 66 -

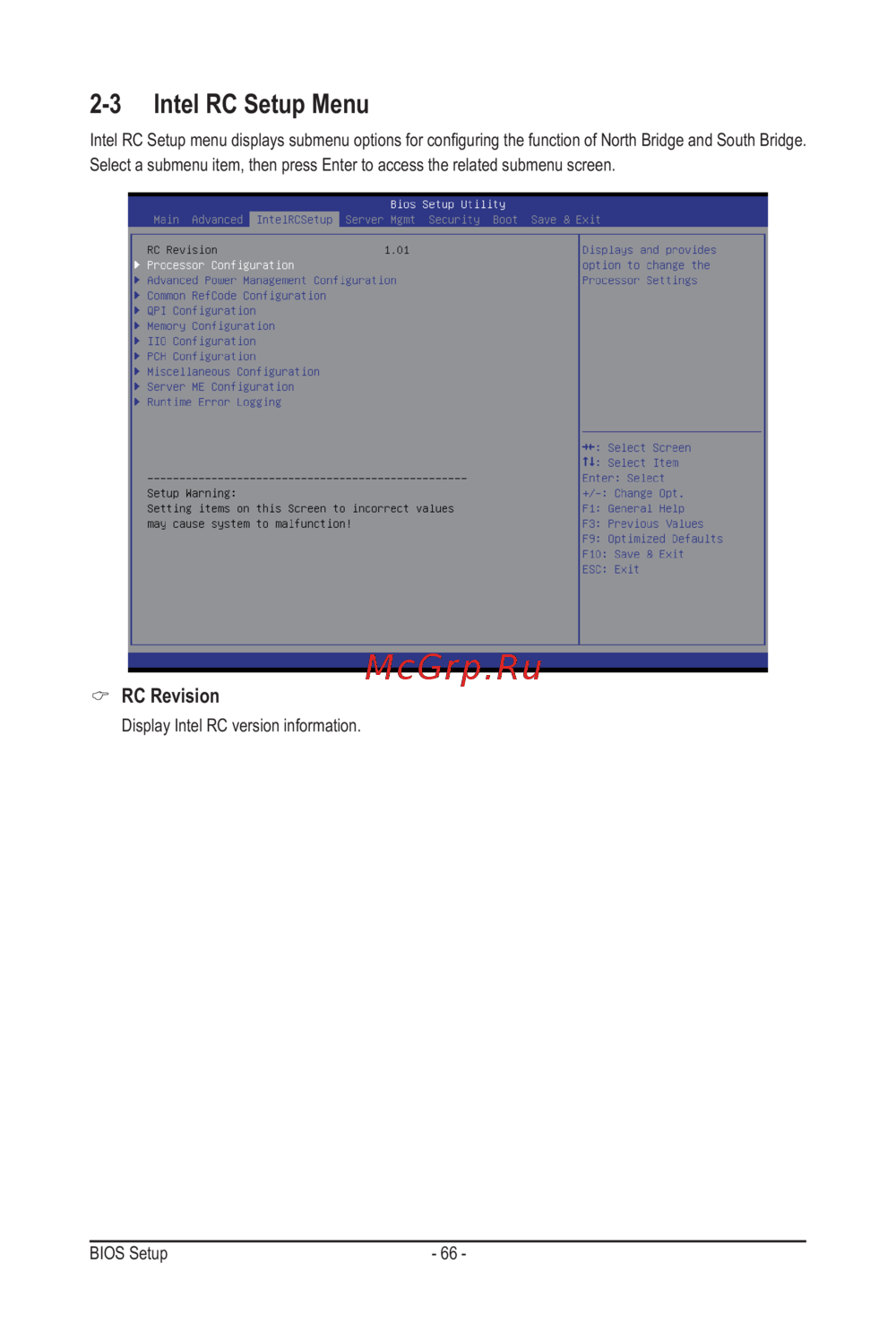

2-3 Intel RC Setup Menu

IntelRCSetupmenudisplayssubmenuoptionsforconguringthefunctionofNorthBridgeandSouthBridge.

Select a submenu item, then press Enter to access the related submenu screen.

RC Revision

Display Intel RC version information.
