- 7 -

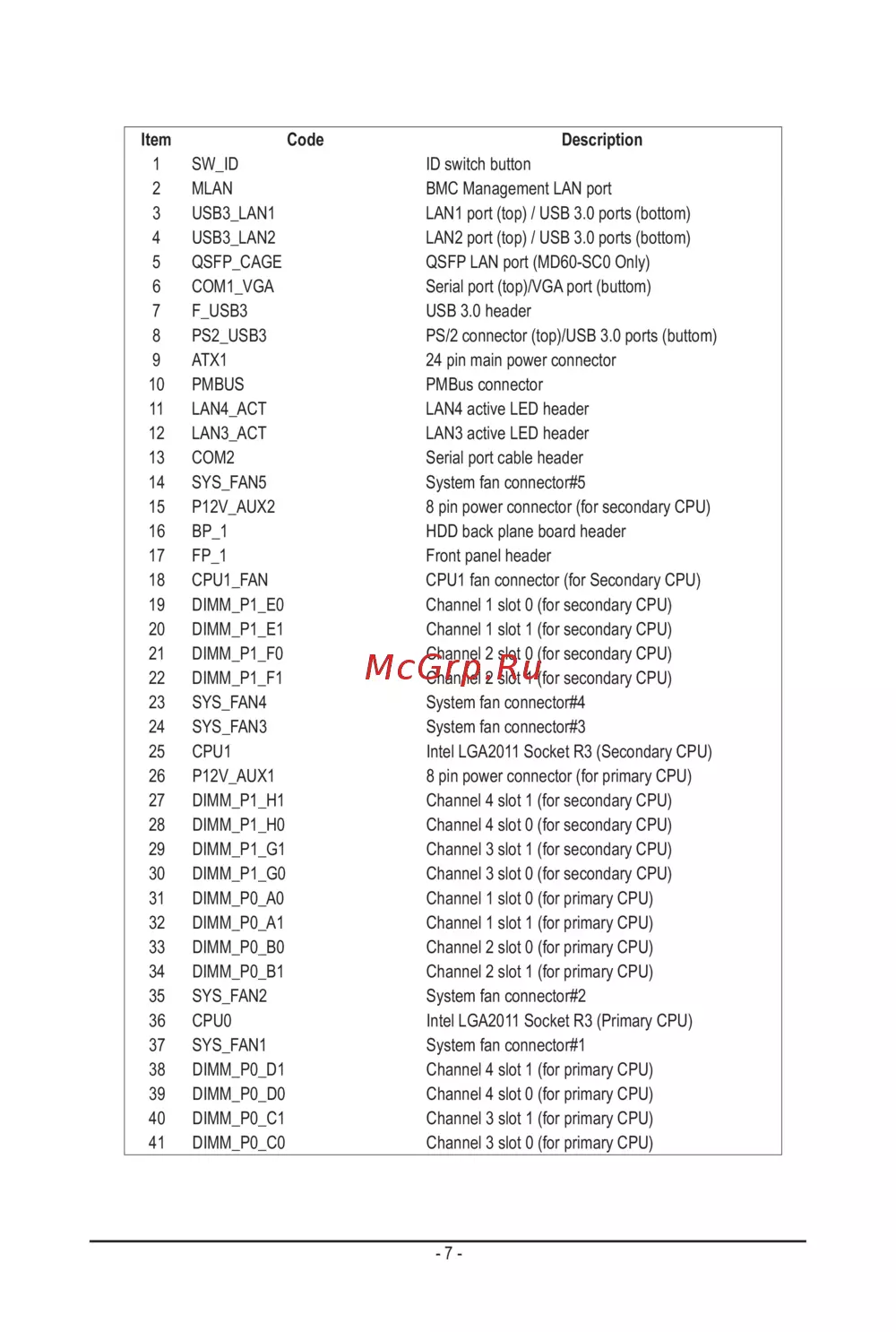

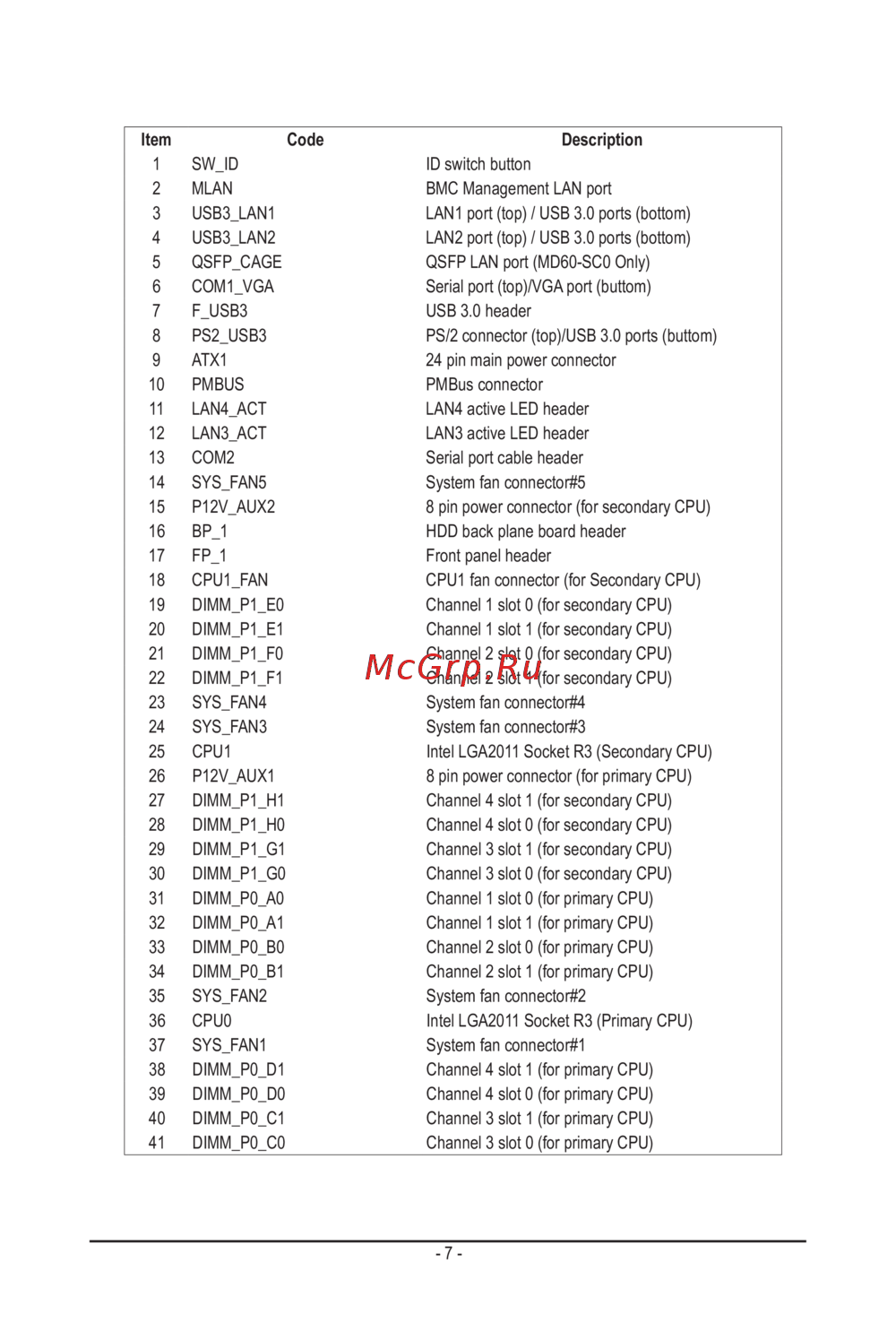

Item Code Description
1 SW_ID ID switch button
2 MLAN BMC Management LAN port
3 USB3_LAN1 LAN1 port (top) / USB 3.0 ports (bottom)
4 USB3_LAN2 LAN2 port (top) / USB 3.0 ports (bottom)
5 QSFP_CAGE QSFP LAN port (MD60-SC0 Only)
6 COM1_VGA Serial port (top)/VGA port (buttom)
7 F_USB3 USB 3.0 header
8 PS2_USB3 PS/2 connector (top)/USB 3.0 ports (buttom)
9 ATX1 24 pin main power connector
10 PMBUS PMBus connector
11 LAN4_ACT LAN4 active LED header
12 LAN3_ACT LAN3 active LED header
13 COM2 Serial port cable header
14 SYS_FAN5 System fan connector#5
15 P12V_AUX2 8 pin power connector (for secondary CPU)
16 BP_1 HDD back plane board header
17 FP_1 Front panel header
18 CPU1_FAN CPU1 fan connector (for Secondary CPU)
19 DIMM_P1_E0 Channel 1 slot 0 (for secondary CPU)
20 DIMM_P1_E1 Channel 1 slot 1 (for secondary CPU)
21 DIMM_P1_F0 Channel 2 slot 0 (for secondary CPU)
22 DIMM_P1_F1 Channel 2 slot 1 (for secondary CPU)
23 SYS_FAN4 System fan connector#4
24 SYS_FAN3 System fan connector#3
25 CPU1 Intel LGA2011 Socket R3 (Secondary CPU)
26 P12V_AUX1 8 pin power connector (for primary CPU)
27 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
28 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
29 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)
30 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)
31 DIMM_P0_A0 Channel 1 slot 0 (for primary CPU)
32 DIMM_P0_A1 Channel 1 slot 1 (for primary CPU)
33 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)
34 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)
35 SYS_FAN2 System fan connector#2
36 CPU0 Intel LGA2011 Socket R3 (Primary CPU)
37 SYS_FAN1 System fan connector#1
38 DIMM_P0_D1 Channel 4 slot 1 (for primary CPU)
39 DIMM_P0_D0 Channel 4 slot 0 (for primary CPU)
40 DIMM_P0_C1 Channel 3 slot 1 (for primary CPU)
41 DIMM_P0_C0 Channel 3 slot 0 (for primary CPU)
