Gigabyte MD60-SC0 (rev. 1.1) [72/127] Cpu c state control

BIOS Setup - 72 -

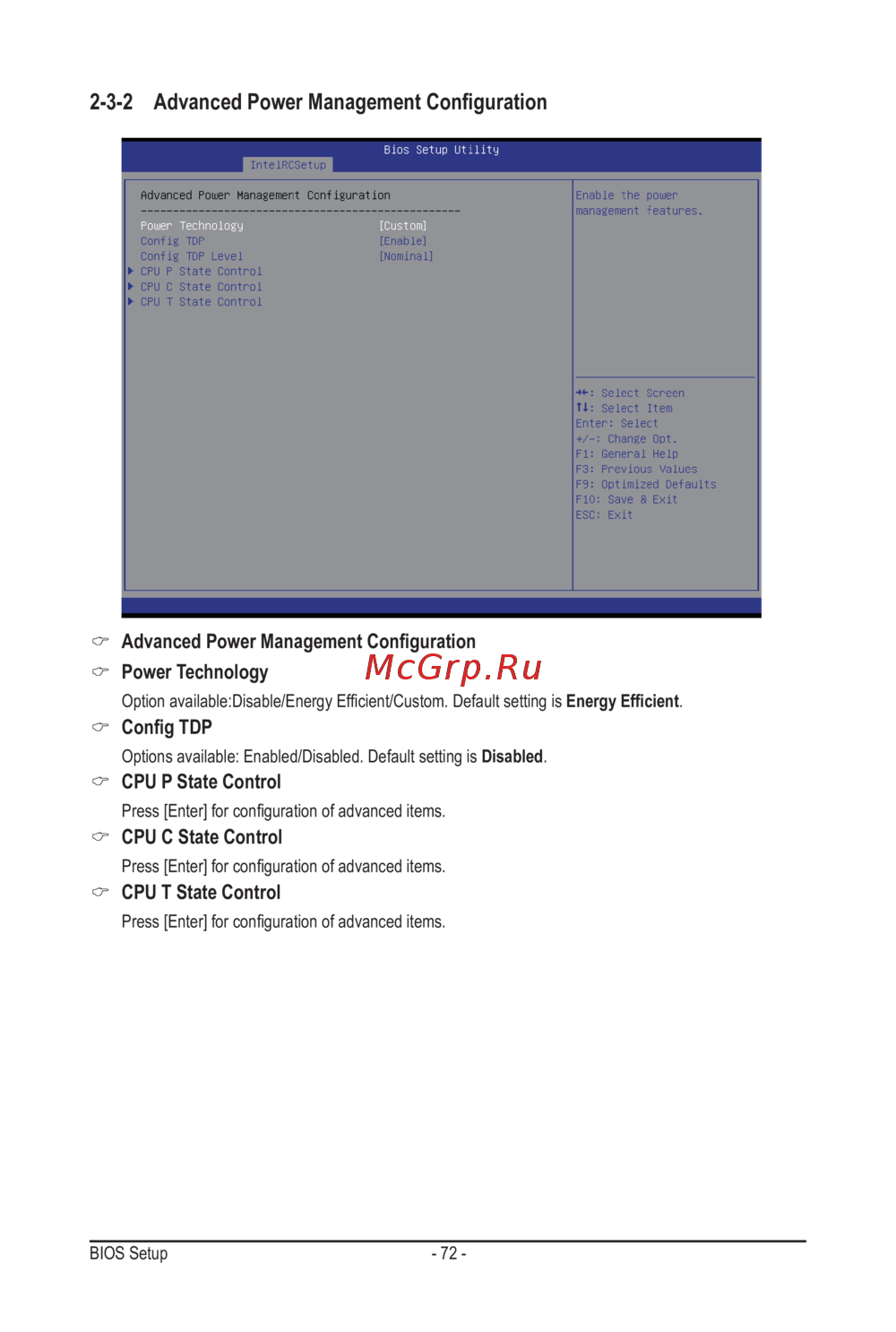

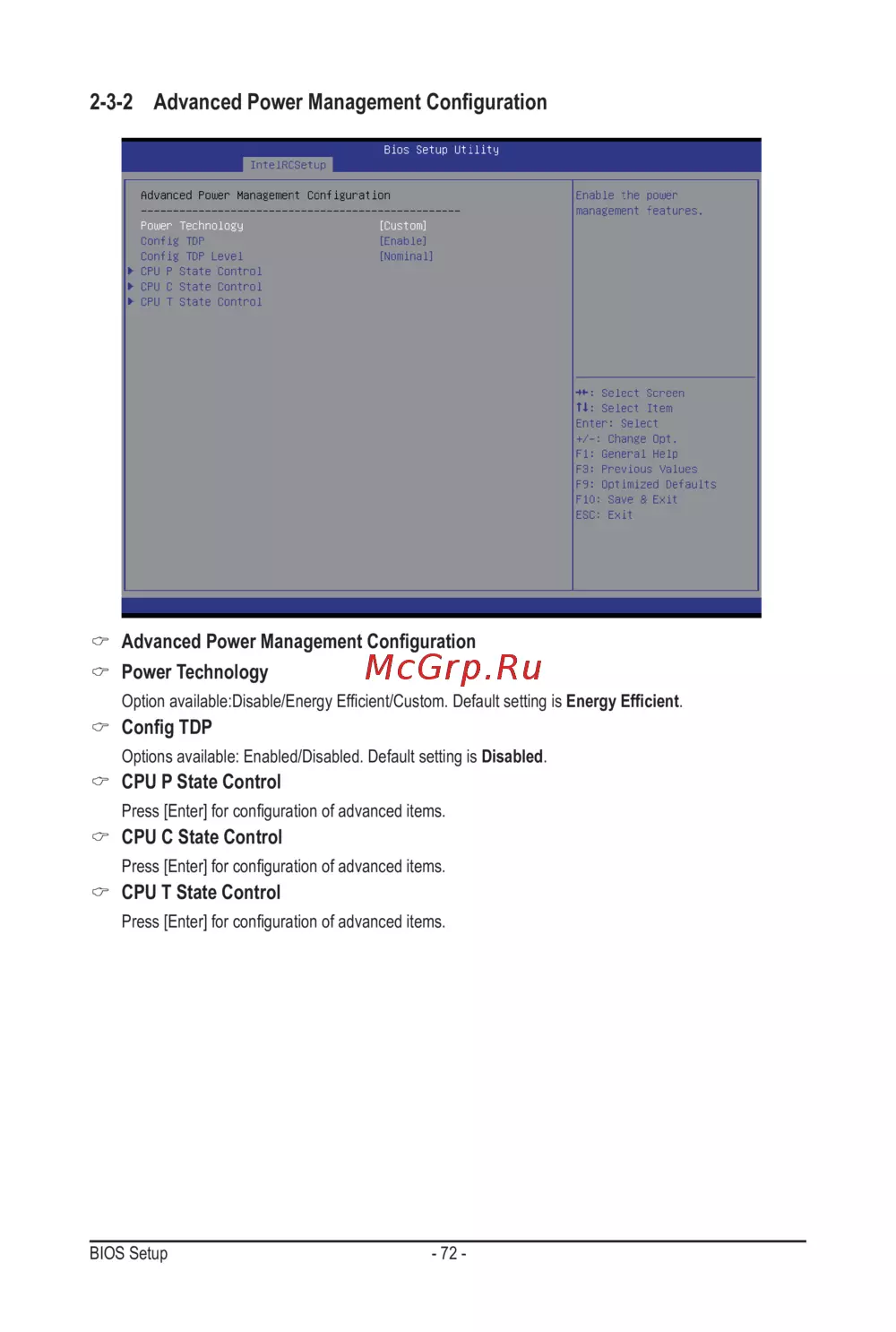

2-3-2 AdvancedPowerManagementConguration

 AdvancedPowerManagementConguration

Power Technology

 Optionavailable:Disable/EnergyEfcient/Custom.DefaultsettingisEnergyEfcient.

 CongTDP

Options available: Enabled/Disabled. Default setting is Disabled.

CPU P State Control

 Press[Enter]forcongurationofadvanceditems.

CPU C State Control

 Press[Enter]forcongurationofadvanceditems.

CPU T State Control

 Press[Enter]forcongurationofadvanceditems.
