BIOS Setup - 76 -

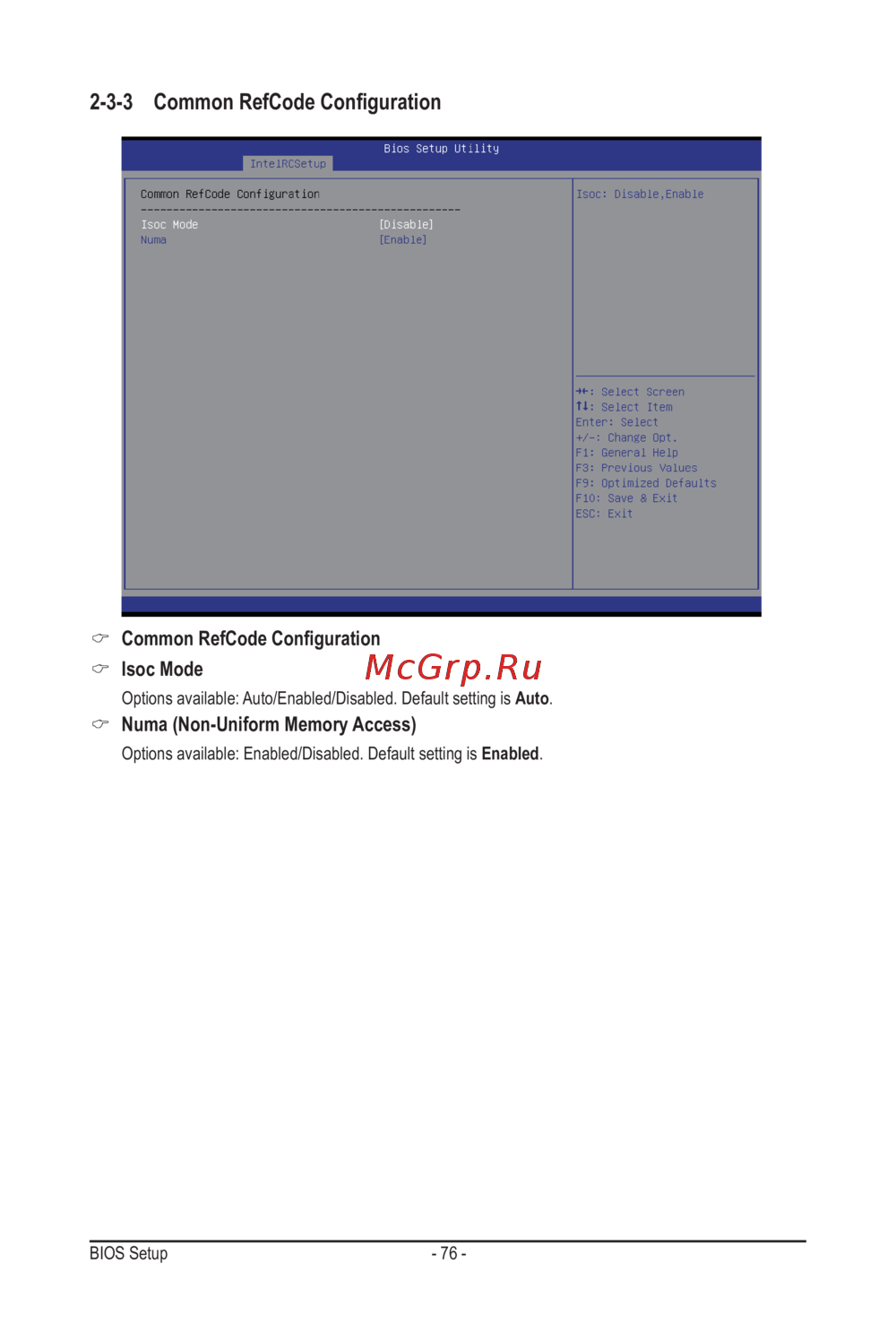

2-3-3 CommonRefCodeConguration

 CommonRefCodeConguration

Isoc Mode

Options available: Auto/Enabled/Disabled. Default setting is Auto.

Numa (Non-Uniform Memory Access)

Options available: Enabled/Disabled. Default setting is Enabled.
