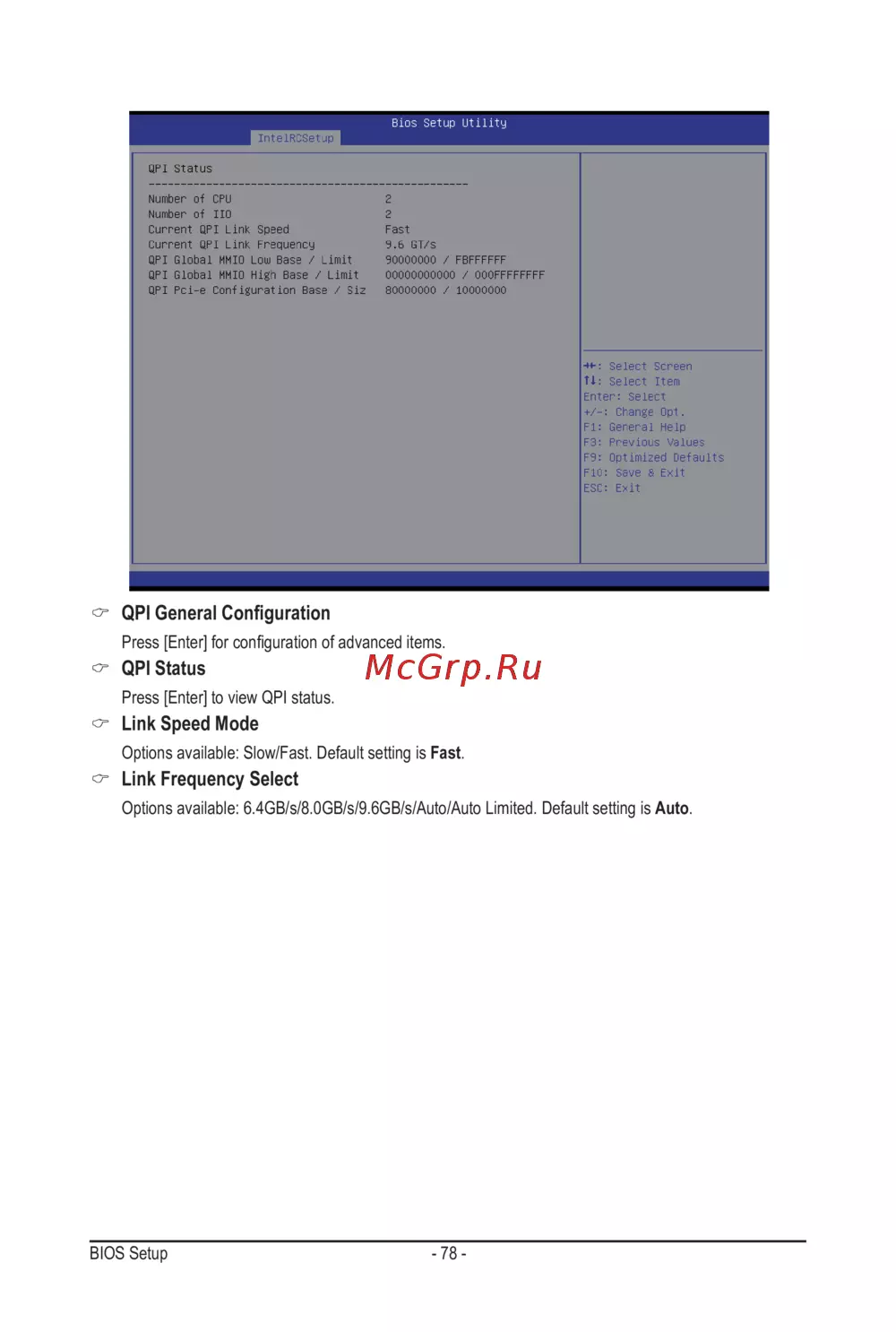

Gigabyte MD60-SC0 (rev. 1.1) [78/127] Qpigeneralconfiguration

BIOS Setup - 78 -

 QPIGeneralConguration

 Press[Enter]forcongurationofadvanceditems.

QPI Status

Press [Enter] to view QPI status.

Link Speed Mode

Options available: Slow/Fast. Default setting is Fast.

Link Frequency Select

Options available: 6.4GB/s/8.0GB/s/9.6GB/s/Auto/Auto Limited. Default setting is Auto.
