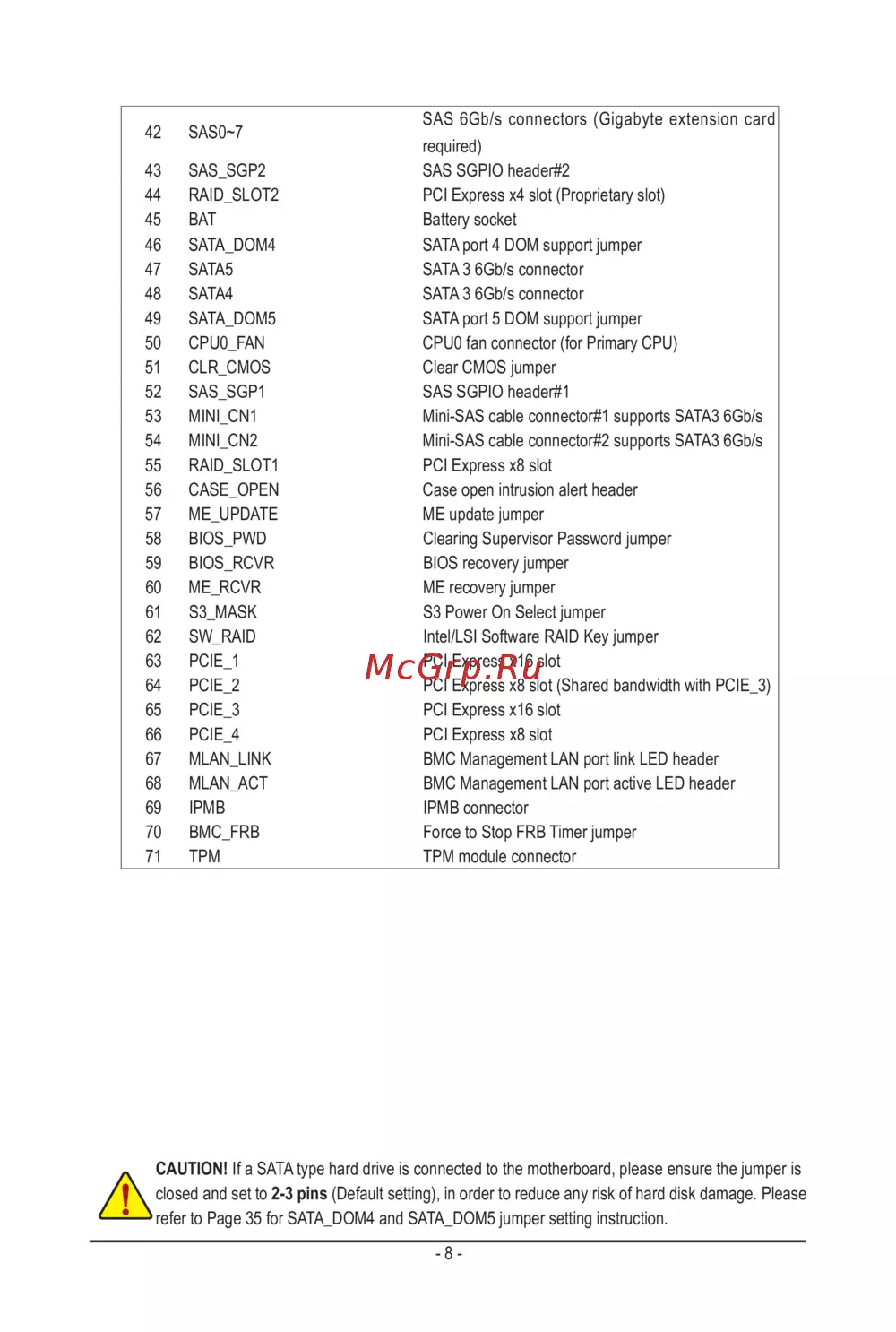

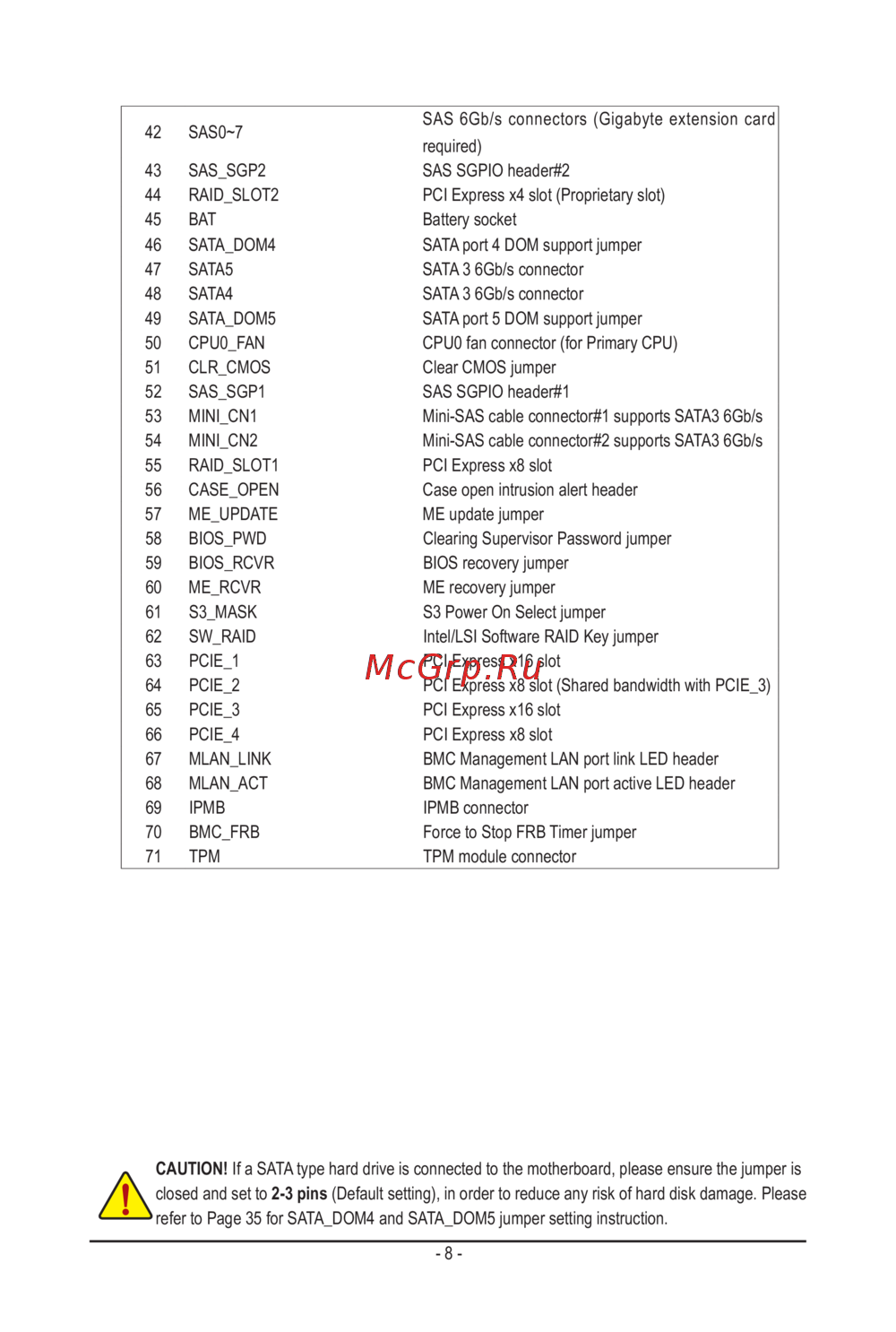

- 8 -
42 SAS0~7
SAS 6Gb/s connectors (Gigabyte extension card
required)
43 SAS_SGP2 SAS SGPIO header#2
44 RAID_SLOT2 PCI Express x4 slot (Proprietary slot)
45 BAT Battery socket
46 SATA_DOM4 SATA port 4 DOM support jumper
47 SATA5 SATA 3 6Gb/s connector
48 SATA4 SATA 3 6Gb/s connector
49 SATA_DOM5 SATA port 5 DOM support jumper
50 CPU0_FAN CPU0 fan connector (for Primary CPU)
51 CLR_CMOS Clear CMOS jumper
52 SAS_SGP1 SAS SGPIO header#1
53 MINI_CN1 Mini-SAS cable connector#1 supports SATA3 6Gb/s
54 MINI_CN2 Mini-SAS cable connector#2 supports SATA3 6Gb/s
55 RAID_SLOT1 PCI Express x8 slot
56 CASE_OPEN Case open intrusion alert header
57 ME_UPDATE ME update jumper
58 BIOS_PWD Clearing Supervisor Password jumper
59 BIOS_RCVR BIOS recovery jumper
60 ME_RCVR ME recovery jumper
61 S3_MASK S3 Power On Select jumper
62 SW_RAID Intel/LSI Software RAID Key jumper
63 PCIE_1 PCI Express x16 slot
64 PCIE_2 PCI Express x8 slot (Shared bandwidth with PCIE_3)
65 PCIE_3 PCI Express x16 slot
66 PCIE_4 PCI Express x8 slot
67 MLAN_LINK BMC Management LAN port link LED header
68 MLAN_ACT BMC Management LAN port active LED header
69 IPMB IPMB connector
70 BMC_FRB Force to Stop FRB Timer jumper
71 TPM TPM module connector
CAUTION! If a SATA type hard drive is connected to the motherboard, please ensure the jumper is
closed and set to 2-3 pins (Default setting), in order to reduce any risk of hard disk damage. Please
refer to Page 35 for SATA_DOM4 and SATA_DOM5 jumper setting instruction.
