Gigabyte MD60-SC0 (rev. 1.1) [82/127] Set throttling mode

BIOS Setup - 82 -

2-3-5-2 Memory Thermal

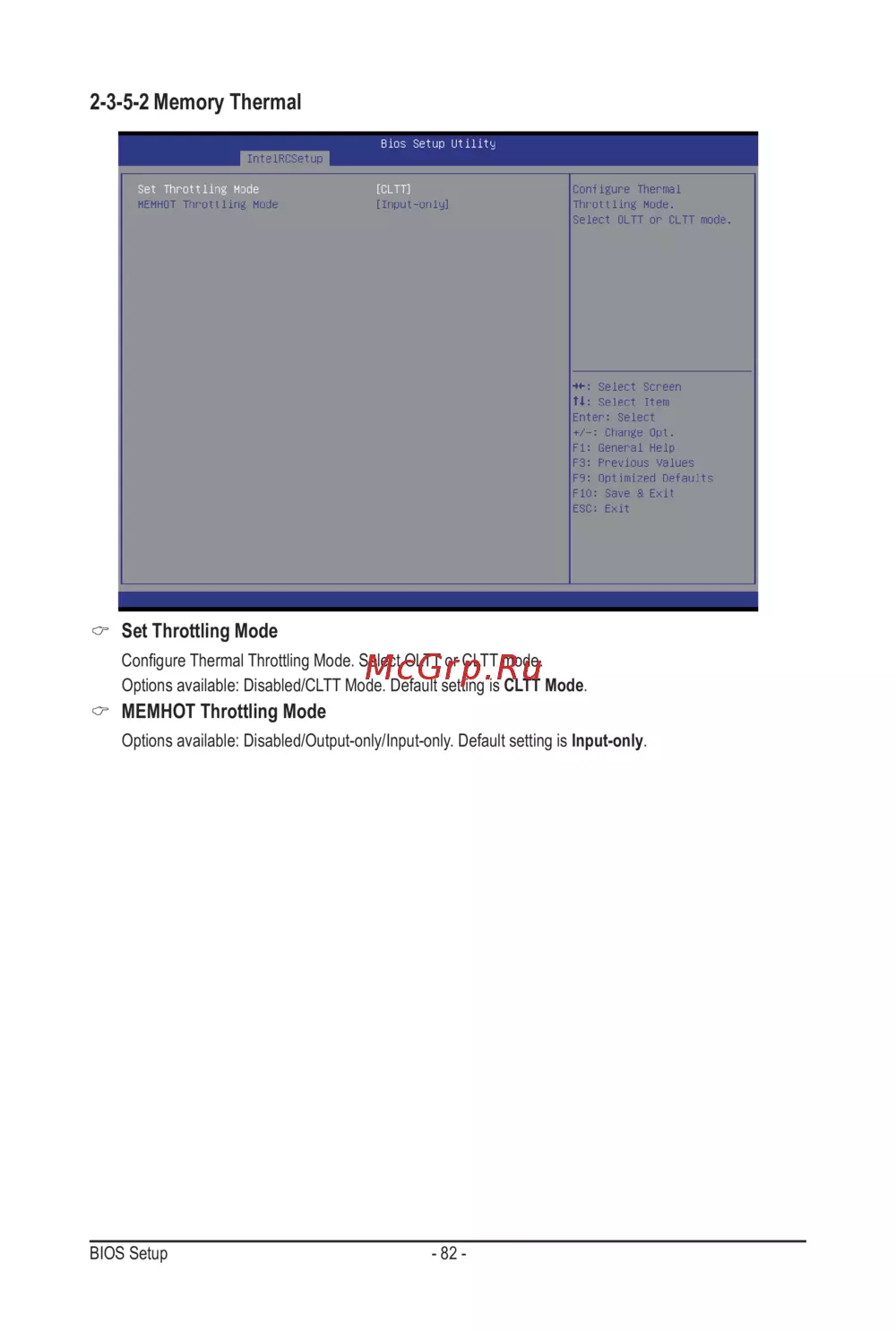

Set Throttling Mode

 CongureThermalThrottlingMode.SelectOLTTorCLTTmode.

Options available: Disabled/CLTT Mode. Default setting is CLTT Mode.

MEMHOT Throttling Mode

Options available: Disabled/Output-only/Input-only. Default setting is Input-only.
