Gigabyte MD60-SC0 (rev. 1.1) [86/127] No snoop

BIOS Setup - 86 -

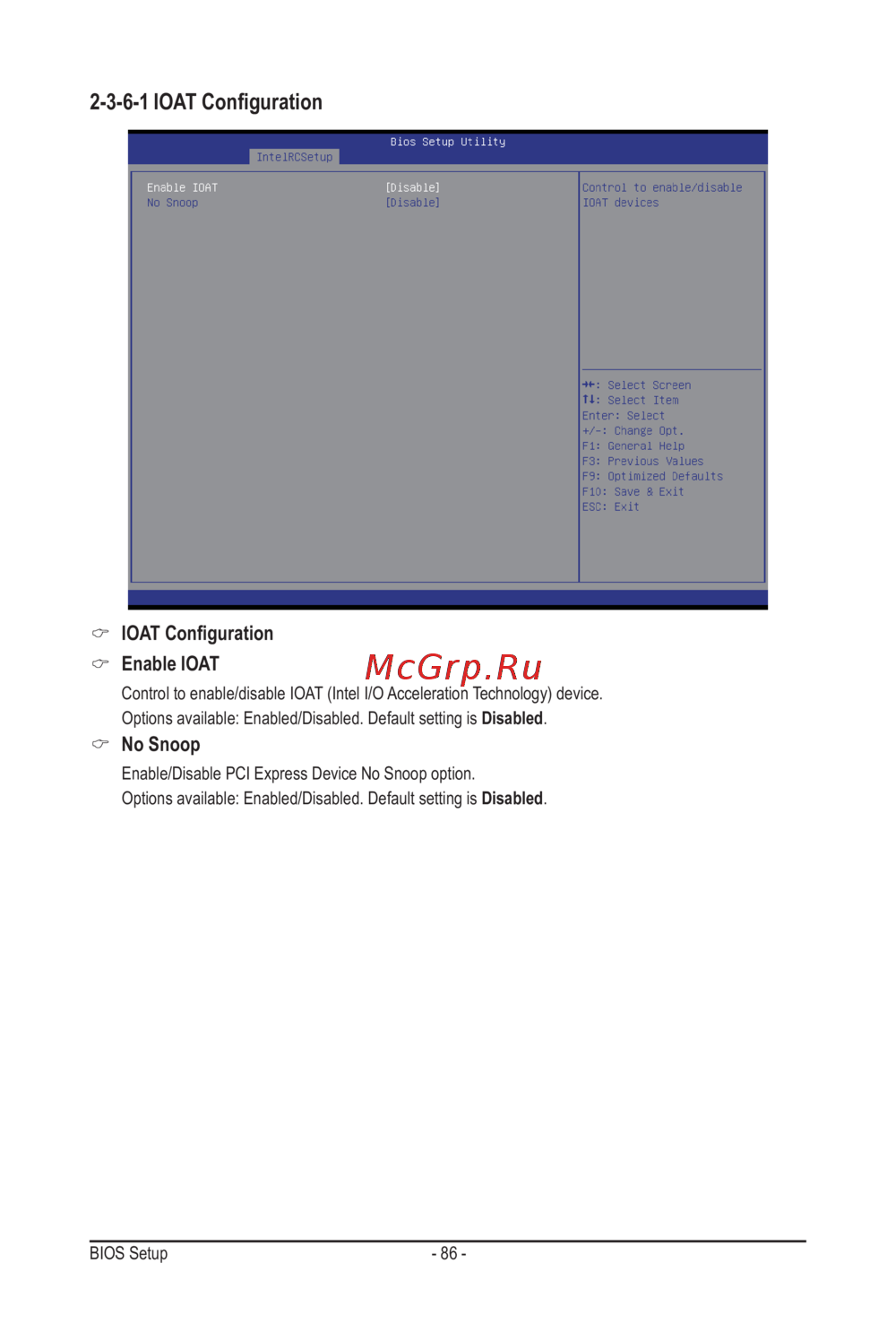

2-3-6-1IOATConguration

 IOATConguration

Enable IOAT

Control to enable/disable IOAT (Intel I/O Acceleration Technology) device.

Options available: Enabled/Disabled. Default setting is Disabled.

No Snoop

Enable/Disable PCI Express Device No Snoop option.

Options available: Enabled/Disabled. Default setting is Disabled.
