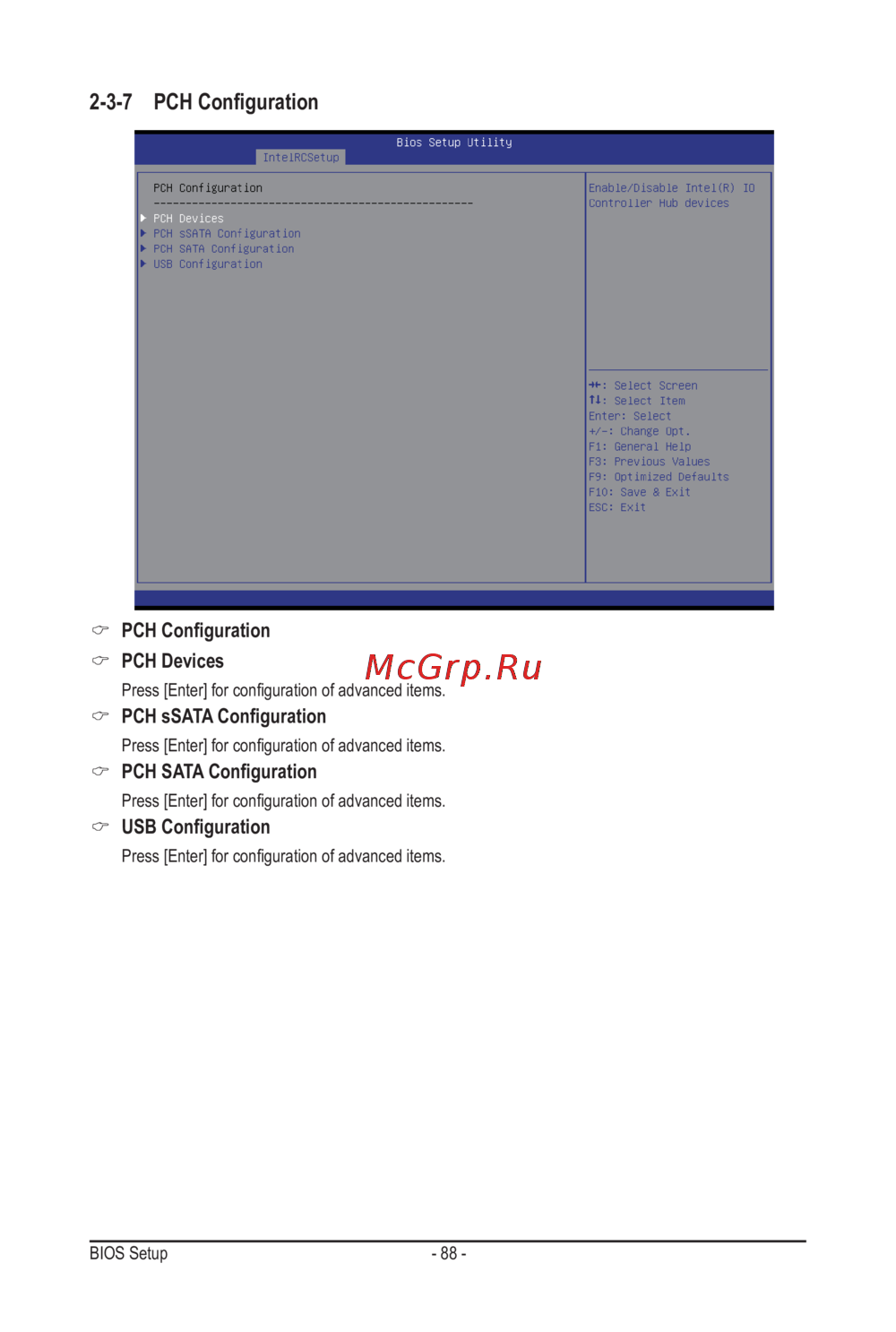

Gigabyte MD60-SC0 (rev. 1.1) [88/127] Usbconfiguration

BIOS Setup - 88 -

2-3-7 PCHConguration

 PCHConguration

PCH Devices

Press[Enter]forcongurationofadvanceditems.

 PCHsSATAConguration

Press[Enter]forcongurationofadvanceditems.

 PCHSATAConguration

Press[Enter]forcongurationofadvanceditems.

 USBConguration

Press[Enter]forcongurationofadvanceditems.
